Server

Our Computers has extensive experience in building server systems of various classes. The company is currently focusing on high-performance rack systems in 1U, 2U and 4U form factors based on Intel Xeon and AMD EPYC processors. They can be divided into 3 groups:

  • General purpose servers
  • Multi-site servers
  • GPU Servers

General purpose servers are intended for use as file, cloud, virtual, computing servers, database servers. They feature state-of-the-art Xeon and EPYC server processors, significant RAM support, and hot-swappable 2.5 ”disk drives. The latter can have both a SATA interface and the fastest NVMe interface for solid state drives. There are also two connectors for connecting SATA-DOM modules. There is a significant set of network interfaces - 10 GbE Ethernet, SFP +, IPMI 2.0, OCP 3.0.

Multi-site servers are a combination of 4 servers in a single 2U chassis. This is useful when you need to save rack space. Shared power supplies (2 2600 W power supplies installed) also save space and energy for powering and cooling servers. This layout is especially useful for compute or failover clusters, or for virtualization. The most popular solutions are from Microsoft, Stratus, Citrix, VMware. All of them imply redundant hardware resources, so such layouts of Polywell Computers servers are especially beneficial in such applications Each of the four nodes supports the latest Intel or AMD processors, up to 4 TB of memory, 6 disk drives 2.5 ”, 1 slot OCP 3.0 for network modules , one IPMI 2.0 (Intelligent Platform Management Interface) module.

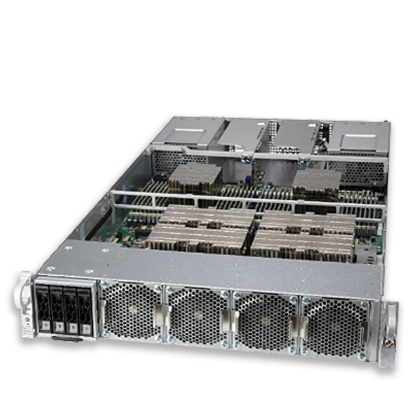

GPU servers are designed for high performance computing (HPC), GPU compute clusters, artificial intelligence, and deep machine learning. Available in 2U form factor with 4 GPUs Nvidia® HGX A100 GPU 40GB / 80GB, NVLink, NVSwitch and 4U form factor with 8 GPUs Nvidia® HGX A100 GPU 40GB / 80GB, NVLink, NVSwitch. Also, depending on the form factor, they can support up to 8 TB (12 TB) of memory, have up to 4 (6) drives in the 2.5 ”form factor, 2 x 10GbE network adapters or 1 OCP 3.0 slot for network modules. Powered by GPU-powered Polywell Computers servers, AI acceleration is up to 20x and HPC acceleration up to 2,5x over previous generations of GPUs.

_______________________________________________________________________________________________________________________________________________

ModelProcessorChipsetMemoryGraphicsNetworkM.2MSataUSB2.0USB3.0PortsExpansionOtherIOAudio

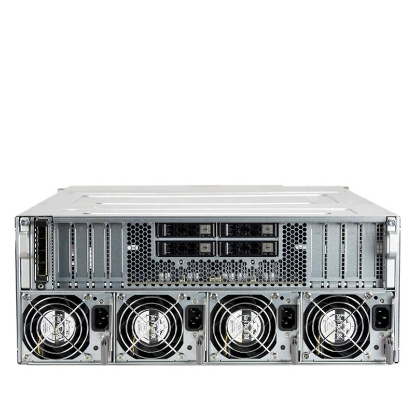

4U8GPU-A100-4189AXeon 2x SP+ (4189pin)C621A32 DDR4 8TB/8ChNvidia A100 8-GPUOCP 3.02 M.2 4.02 M.2 4.0IPMI 2.0 (AST2600)/VGA-F10 x16-4.0 LP

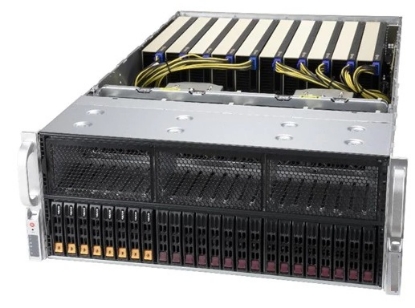

4U10GPU-4189A Xeon 2x SP+ (4189pin)C621A32 DDR4 8TB/8Ch10xA100, A40, RTX-A60002x1Gbit i350, OCP 3.02 M.2 4.08U.2/8SATA/8SAS 2.5"IPMI 2.0 (AST2600)/VGA-F12 x16-4.0

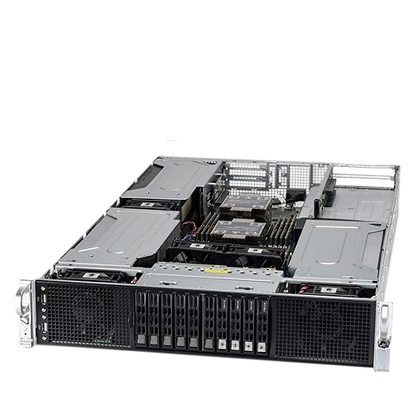

2U6GPU-4189AXeon 2x SP+ (4189pin) C621A16 DDR4 4TB/8ChNvidia A100 6-GPU OCP 3.02 M.2 4.0 2 M.2 4.0 IPMI 2.0 (AST2600)/VGA-R6 x16-4.0

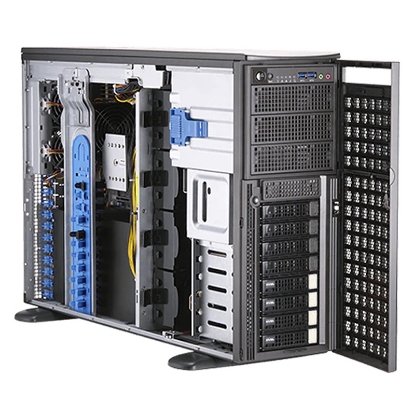

4UT4GPU-4189AXeon 2x SP+ (4189pin) C621A16 DDR4 4TB/8ChNvidia A100 4-GPU 2 10GbE Base-T LAN2 M.2 22110/2280 4.02 M.2 22110/2280 4.0IPMI 2.0 (AST2600)/VGA-R 6 x16-4.0+1 x8 4.0

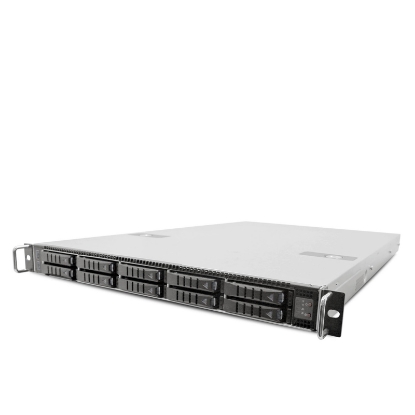

1U10N16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 4TB/8ChAspeed AST2600 BMC VGA 2 x OCP 3.02 M.2-10-8 3x2 / 110x2.5" U.2/SATA/SASIPMI 2.0 (AST2600)/VGA2 x16-4.0

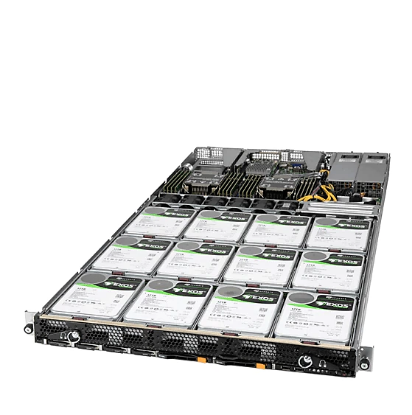

1U12S16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 4TB/8ChAspeed AST2600 BMC VGA 2x25GbE SFP28 + 1 x OCP3.02 M.212x3.5" SATA+4xE1.S + 2x2.5" 7mm NVMeIPMI 2.0 (AST2600)/VGA2 x16 LP, x8 LP, OCP x16

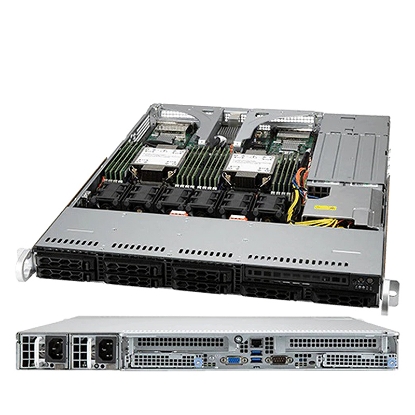

1U8N16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 6TB/8ChAspeed AST2600 BMC VGA 2 x OCP 3.02 M.2 2280/ 1 DOM8x2.5" NVMe/U.2/SATAIPMI 2.0 (AST2600)/VGA2 x16-4.0 FHHL

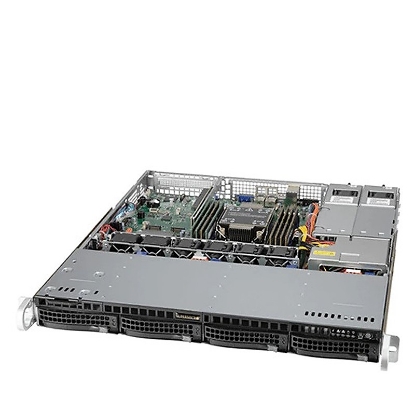

1U4S8-4189AXeon SP+ (4189pin)C621A8 DDR4 3TB/8Ch Aspeed AST2600 BMC VGA2 x Intel i350 Gig LAN2 M.2-2280,22110/2 DOM4x3.5" NVMe/SAS/SATAIPMI 2.0 (AST2600)/VGA1 x PCIe 4.0 x16 FHHL

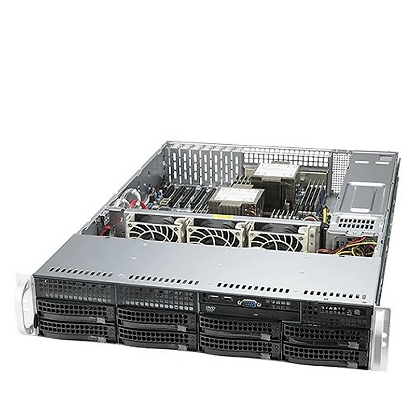

2U8S16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 4TB/8ChAspeed AST2600 BMC VGA2 x 10GbE LAN1 M.2/ 2DOM8x3.5" SATAIPMI 2.0 (AST2600)/VGA4 x16LP, 2 x8LP

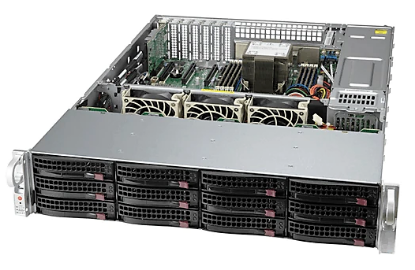

2U12S8-4189AXeon 2x SP+ (4189pin)C621A8 DDR4 2TB/8ChAspeed AST2600 BMC VGA2 x 10GbE LAN1 M.2/2 DOM12x3.5" U.2/SATA/SASIPMI 2.0 (AST2600)/VGA2 x16 LP, 2 x8 LP

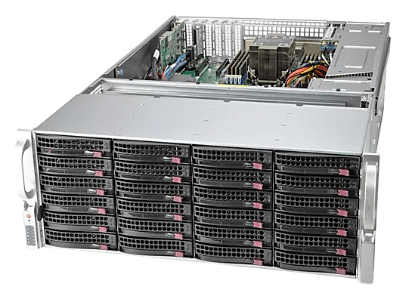

4U36S8-4189AXeon SP+ (4189pin)C621A8 DDR4 3TB/8ChAspeed AST2600 BMC VGA2 x 10GbE LAN1 M.2/2 DOM36x3.5" SATA + Optional(2x2.5")IPMI 2.0 (AST2600)/VGA-R2 x16 LP, 2 x8 LP

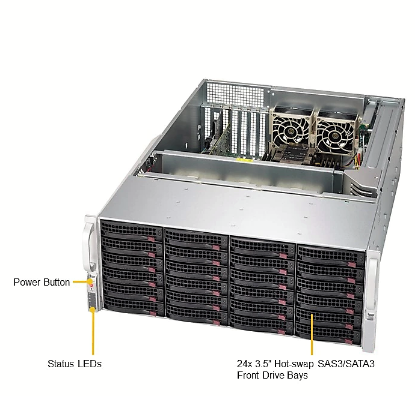

4U24S16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 4TB/8ChAspeed AST2600 BMC VGA2 x 10GbE LAN1 M.24U 24x3.5" SATA + 2 x 2.5" SATAIPMI 2.0 (AST2600)/VGA-F4 x16LP + 2 x8LP
4U36S16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 4TB/8ChAspeed AST2600 BMC VGA 2 x 10GbE LAN1 M.24U 36x3.5" SATA + 2 x 2.5" SATAIPMI 2.0 (AST2600)/VGA-F4 x16LP + 2 x8LP

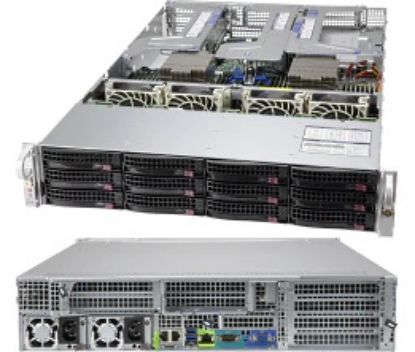

2U12S32-E7003EPYC-3 2xSP3 (4094pin)EPYC-7003 SoC32 DDR4 8TB/8ChAspeed AST2500 BMC VGA2x10GbE X7102 M.2 by Card / 212x3.5" SATA3IPMI 2.0 (AST2500)/VGA2 x16-4.0,1x16-4.0 LP, 1x8-4.0 FH

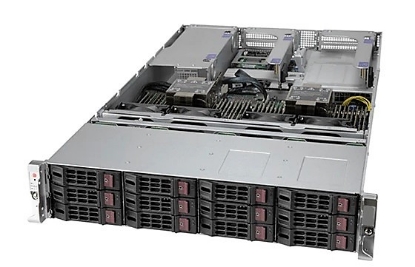

2U12SN32-4189AXeon 2x SP+ (4189pin)C621A32 DDR4 12TB/8ChAspeed AST2600 BMC VGAOCP 3.01 M.2 4.0, 1 M.2 3.012x3.5" U.2/SATA/SASIPMI 2.0 (AST2600)/VGA5 x16-4.0, 3 x8-4.0

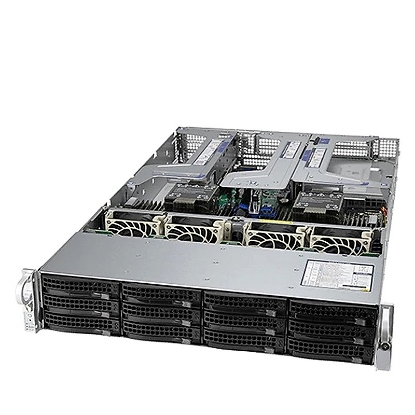

2U12S32-4189AXeon 2x SP+ (4189pin)C621A32 DDR4 12TB/8Ch Aspeed AST2600 BMC VGAOption:2 X710-AT2 or 4 X710-TM40/2 DOM12x3.5" U.2/SATA/SASIPMI 2.0 (AST2600)/VGA2 x16-4.0 (1 FH+ 1 LP), 5 x8-4.0 , 1 x8-Internal-4.0

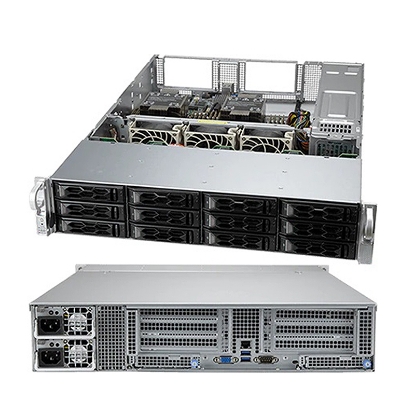

2U12S16-4189AXeon 2x SP+ (4189pin)C621A16 DDR4 6TB/8ChAspeed AST2600 BMC VGA2 x OCP 3.02 M.2/1 DOM12x3.5" U.2/SATA/SASIPMI 2.0 (AST2600)/VGA2 x16 FHHL, 4 x8 FHHL, 2 x OCP x16
C246L2Xeon E-2200 (1151pin)C2464 DDR4 128G/2ChIntel UHD P6302xGbit Intel i2101xM.21x2.5" SATA2 R4 R+2 HIPMI 2.01x166H7.1 ALC892
X-D2123TPL4D-2123ITSkylake-D4 DDR4Aspeed AST25004 Intel\I350-AM4+1 IPMI1-8/412 R2 H2 R1 VGA1 PCIe 16x+1 PCIe 8xTPMTPM
C242L2Xeon E-2200 (1151pin)C2424 DDR4 128G/2ChAspeed AST25002xGbit Intel i2101xM.21x2.5" SATA2 R+2 H2 R+3 HIPMI 2.01x16TPM+GPIO7.1 ALC892
C246L8Xeon E-2200 (1151pin)C2464 DDR4 128G/2ChAspeed AST25008xGbit Intel i2101xM.22x3.5"/2.5" SATA2 R+2 H2 R+2 HIPMI 2.01x16TPM7.1 ALC892

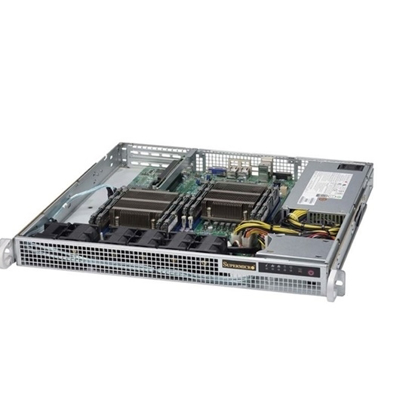

C621A8Xeon 2x SP (3647pin)C6218 DDR4 1TB/6ChAspeed AST2600 BMC VGA2x1Gbit Marvell1xM.2up to 60x3.5" SAS/SATAIPMI 2.0 (AST2500)/VGA2x16, 3x8
C3558L4Atom-C (BGA-1310)Denverton C30004 DDR4 256G/2ChAspeed AST24004x1Gbit Intel LAN1xM.21x2.5" SATA2 R1 HIPMI 2.0 (AST2400)1x4 3.0TPMoption
C3758L4/C3758TC3758Denverton4 DDR4Aspeed AST24004 Intel+1 IPMI2122 R1 H1 VGAPCIe 4xTPMoption
C3338L4Atom-C (BGA-1310)Denverton C30002 DDR4 128G/1ChAspeed AST24004x1Gbit Intel LAN1xM.21x2.5" SATA2 R1 HIPMI 2.0 (AST2400)1x4 3.0TPMoption
X-D2123TD-2123ITSkylake-D4 DDR4Aspeed AST25002 Intel\X557+1 IPMI8 R2 H2 R1 VGA1 PCIe 8x+1 OCuLinkTPMTPM
X-D1540L4D-1540Broadwell-u4 DDR4Aspeed AST24004 Intel+1 IPMI164 H2 R1 VGAPCIe 16xTPMoption

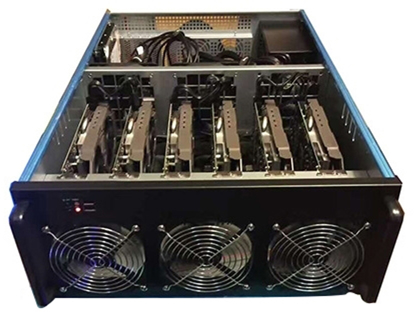

4006BM BitCoin Mining SystemCore i7/i5/i3/Pentium (1151pin)Intel® B2502 DDR4 up to 32 GBNVIDIA or AMD GPUsIntel® GbE LAN1xM.24 SATA1xPCIe x16 and 11xPCIe x1

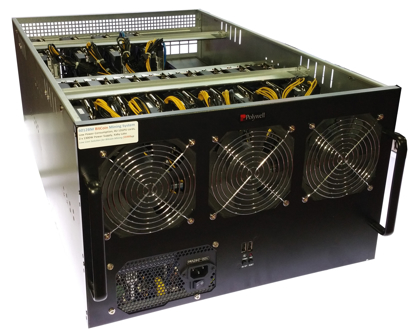

6012BM BitCoin Mining SystemCore i7/i5/i3/Pentium (1151pin)Intel® B2502 DDR4 up to 32 GBNVIDIA or AMD GPUsIntel® GbE LAN1xM.2 4 SATA1xPCIe x16 and 11xPCIe x1

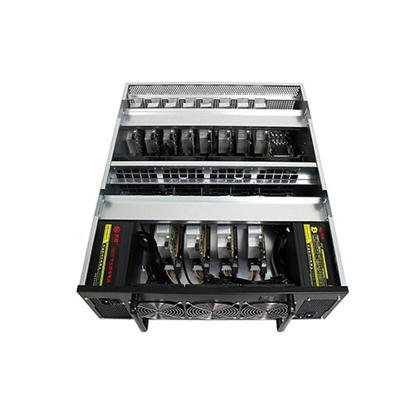

4012BM BitCoin Mining SystemCore i7/i5/i3/Pentium (1151pin)Intel® B2502 DDR4 up to 32 GBNVIDIA or AMD GPUsIntel® GbE LAN1xM.24 SATA1xPCIe x16 and 11xPCIe x1

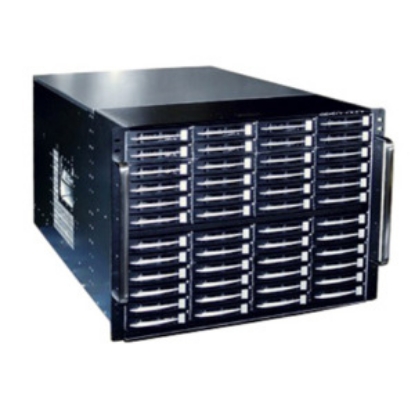

PolyStor 8074A / 8074S (Petabyte Solution)XeonDDR4 2TB12x10Gbit
