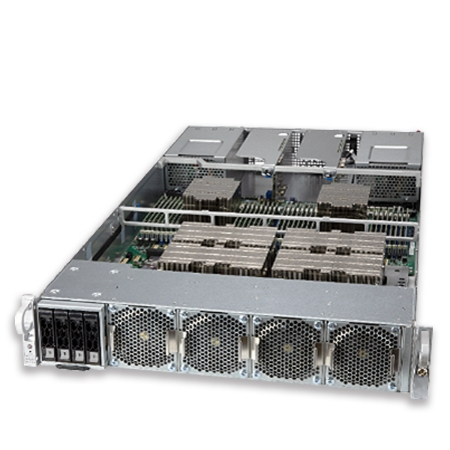

2U4GPU-A100-E7003

2U 4x Nvidia® GPU-A100, 4x 2.5” NVMe U.2/SATA, 32x 8-Channel DDR4, Dual 3rd Gen. EPYC™

Key Features:

• 2U 4 x Nvidia® HGX A100 GPU 40GB/80GB, NVLink, NVSwitch
• Dual AMD EPYC™ 7003/7002 Series Processors
• 4 x 2.5” NVMe U.2 4.0 / SATA Hot Swap Drives
• 32 DDR4 up to 8TB 8-Channel 3200MHz ECC Memory
• 4 PCIe 4.0 x16 + 1 PCIe 4.0 x8 Low Profile Slot
• 2 x 10Gbit Ethernet + IPMI 2.0
• 2200-3000W Platinum Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.

 Download DataSheet

$0.00
SKU: 2U4GPU-A100-E7003
Product specifications
Processor
• Dual AMD EPYC™ 7003/7002 Series Processors
• Socket SP3 (LGA 4094) supports 280W, Up to 64 Core 128 Threads
GPU
• Nvidia® HGX A100 4-GPU 40GB/80GB, NVLink, NVSwitch
Memory
• 32 DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
Storage
• 4 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays
• Supports NVMe (16GT/s) / SATA (6Gb/s) RAID-0/1/5/10
• Optional 2 x M.2-2280 PCIe x4 by PCIe x8 Adapter
Network
• 2 x 10GbE BaseT LAN RJ45
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600 (KVM
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 4 x PCIe 4.0 x16 (Low Profile)
• 1 x PCIe 4.0 x8 (Low Profile)
Graphics
• Aspeed AST2600 BMC VGA (DB15)
Back I/O
• 1 x RJ45 IPMI, UID Switch/Indicator
• 2 x RJ45 Ethernet
• 1 x DB15 VGA Port
• 2 x USB 3.0
Internal I/O
• 1 x RS-232 COM, 1 TPM header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U Rackmount
• 4 x 2.5” NVMe U.2 4.0/SATA Hot Swap Drive Bays
• 4 x 80mm Front Hot Swap Cooling Fans
• Dimension: 3.5" (89mm) H x 17.2" (437 mm) W x 32.4" (823mm) D
• System Weight: 80 lbs. (36.5kg) Net, 90 lbs. (41kg) Gross
Power Supply
• 2 x 2200W Redundant Platinum Level (Optional 3000W)
• 1000W: 100-127Vac / 2200W: 220-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, CUDA GPU Computing
Application
• GPU Cluster for AI, Deep Learning.
Environment
• Operating Temperature: 0 to +35 C
• Non-operating temperature: -40 to +60 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
*
*
*
*
*
