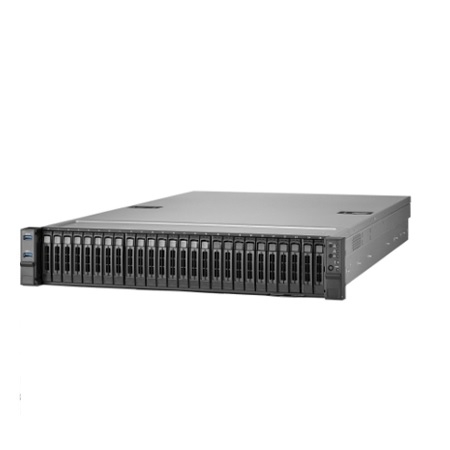

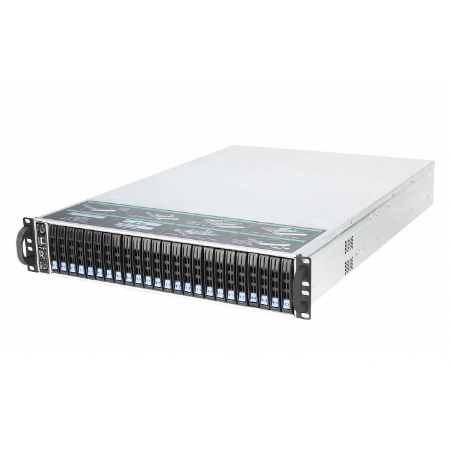

PolyStor 2U16N-X5 - 2U 16 NVMe U.2 5th Gen. Xeon Server

2U 16 NVMe U.2 5th Gen. Xeon, 5 x16 PCIe 5.0 32 DDR5, 2x10GbE + IPMI + OCP Slot

Key Features:

• Dual 5th Gen. Intel Xeon Scalable Processors
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 16 U.2 NVMe 4.0 + 10 SATA/SAS
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• 2 x16 PCIe 5.0 HH + 3 x16PCIe 5.0 FH + OCP 3.0 Slots
• 2 x 2000W CRPS Platinum
• For Virtual Server, Compute Server, Database Server, Cloud

SKU: PolyServer 2U26N-X5

Specifications
Request for Info

Product specifications

Processor • Dual 5th Gen. Intel Xeon Scalable Processors • Sockets Supported LGA4677, Max up to 350W (TDP) Chipset • Intel® C741
Memory • 32 x DDR5 DIMM Sockets • 8 Channels per CPU • Supports up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400/ 4000 memory Storage • 16 U.2 NVMe 4.0 + 10 SATA/SAS • 2 x M.2 NVMe 4.0 Slots
Network • 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2 • 1 x GbE dedicated for IPMI Expansion Slot • 2 x PCIe 5.0 x16 slots (Full Height) • 3 x PCIe 5.0 x16 (Half Height) • OCP 3.0 PCIe 5.0 x16 Slot
Graphics • Aspeed AST2600 VGA (DB15) I/O • 1 x USB 3.2 Ports (R) • 2 x USB 3.2 Ports (F) • 2 x RJ45 10GbE LAN Ports • 1 x RJ45 IPMI 2.0 Port • 1 x DB15 VGA Port
BIOS • AMI / 64MB Chassis • 2U Rackmount with Front HDD LED • 6 x 2U Cooling Fans • Dimension: 3.43" H x 17.26" W x 29.56" D
Power Supply • 2 x 2000W CRPS Platinum Level PSU OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Virtual Server, Compute Server, Database Server, Cloud Computing Environment • System Operating Temperature: 0°C ~ 35°C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
