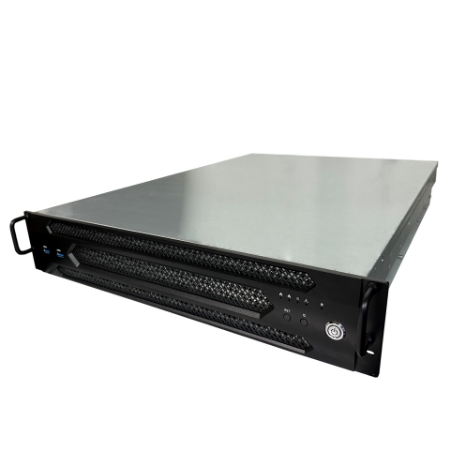

PolyNet 2U5E-E3 - 2U Short AMD® EPYC™ Compute Server

AMD® EPYC™ Compute Server , 2P 5 PCIe + OCP, 2x10GbE 32 DIMM, Titanium CRPS

Key Features:

• Dual Socket SP3 (LGA4094), support AMD® EPYC™ 7003
and 7002 Processors
• 16+16 (32) DIMM slots (2DPC), supports RDIMM, LRDIMM,
RDIMM/LRDIMM-3DS up to 8TB 16-Channel Memory
• 2 x M.2-22110/2280 PCIe 4.0 x4 NVMe SSD
• 4 x HH HL PCIe 4.0 x16, 1 x HH HL PCIe 4.0 x8 Slots
• 2 x 10Gbit LAN, 1 x OCP NIC 3.0 Slot (PCIe 4.0 x16)
• Remote management (IPMI 2.0)
• For Virtual Server, Compute Server, Database Server, Cloud

SKU #	Module 1	Module 2	Module 3	Module 4	Module 5	Module 6
N8T8	2 x 400G NDR	2 x 400G NDR	2 x 400G NDR	2 x 400G NDR	4 x 10GbE	4 x 10GbE
H8T8	2 x 200G HDR	2 x 200G HDR	2 x 200G HDR	2 x 200G HDR	4 x 10GbE	4 x 10GbE
E8T8	2 x 100G EDR	2 x 100G EDR	2 x 100G EDR	2 x 100G EDR	4 x 10GbE	4 x 10GbE
N2H2P8T8	2 x 400G NDR	2 x 200G HDR	4 x 10G SFP+	4 x 10G SFP+	4 x 10GbE	4 x 10GbE
N2P12T8	2 x 400G NDR	4 x 10G SFP+	4 x 10G SFP+	4 x 10G SFP+	4 x 10GbE	4 x 10GbE
H2P4T16	2 x 200G HDR	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	4 x 10GbE	4 x 10GbE
E2P4T16	2 x 100G EDR	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	4 x 10GbE	4 x 10GbE
E2P4T12L8	2 x 100G EDR	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	4 x 10GbE	8 x 1GbE
E2P4T8L16	2 x 100G EDR	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	8 x 1GbE	8 x 1GbE
E2P4T8L8B4	2 x 100G EDR	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	8 x 1GbE	4 x 2.5GbE
P4T12L8B4	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	4 x 10GbE	8 x 1GbE	4 x 2.5GbE
P4T12L8O4	4 x 10G SFP+	4 x 10GbE	4 x 10GbE	4 x 10GbE	8 x 1GbE	4 x PoE-1GbE

SKU: PolyNet 2U5E-E3

Specifications
Request for Info

Product specifications

Processor • Dual Socket SP3 (LGA4094) • Support AMD® EPYC™ 7003 and 7002 Series Processors Chipset • None (AMD Turin PCH less architecture; all I/O provided by CPUs)
Memory • 16+16 (32) DIMM slots (2DPC) • Supports DDR4 288-pin RDIMM, LRDIMM • RDIMM/LRDIMM-3DS, 8 Channel per CPU, 1.2V Memory voltage, up to 8TB Capacity • RDIMM/ LRDIMM: max. 3200MHz Storage • 2 x M.2-22110/2280 PCIe 4.0 x4 • Optional Marvell 9235 4 x SATA-6Gb/s • Optional 2 x SFF-8654 for (4) NVMe
Network • 2 x 10Gbit RJ45 Ethernet Intel X550-AT2 Expansion Slot • Supports Up to 5 RISER Slots HH HL, 4 HH HL x16, 1 HH HL x8 [CPU1] [CPU2] (rear), 1 x OCP NIC 3.0 (x16) [CPU1]
Graphics • ASPEED AST2500: 1 DB15, 1 (15-pin header) I/O • 2 x USB 3.1 (Rear), 2 USB 3.1 (Front) • 2 x Serial Port Headers • 2 x RJ45 10GbE LAN Ports • 1 x RJ45 IPMI 2.0 Port • 1 x DB15 VGA Port
Chassis • 2U Rackmount with Front HDD LED • 6 x 2U Cooling Fans • Dimension: 3.43" H x 17.26" W x 25" D Power Supply • 2 x CRPS Hot Swap P/S 1+1 2000W Titanium Redundant
OS Support • Windows Server, Linux, FreeBSD, VMware Applications • Virtual Server, Compute Server, Database Server, Cloud Computing
Environment • System Operating Temperature: 0°C ~ 35°C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
