Processor
• Intel® 7th Generation Kaby Lake processor • LGA1151 socket series with 35W to 91W TDP • Intel® Core™ i7 processor 7700 series • Intel® Core™ i5 processor 7500/7400 series • Intel® Core™ i3 processor • Intel® Pentium® processor
Chipset
Intel® B250 Chipset
|
Memory
• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory • Support for DDR4 2400/2133 MHz memory modules • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules • Support for Extreme Memory Profile (XMP) memory modules(* To support 2400 MHz or XMP memory, you must install a 7th generation processor.）
Graphics
• Integrated Graphics Processor- Intel® HD Graphics support: • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz（* Support for DisplayPort 1.2 version.） • 1 x HDMI® port, supporting a maximum resolution of 4096x2160@24 Hz（* Support for HDMI® 1.4 version.） • 12 PCIe expansion slots support up to 12 GPU Mining Cards of P106, P107, P108 or X580
|
Audio
• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out, • Realtek® ALC892 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out
LAN
• Intel® GbE LAN chip (10/100/1000 Mbit)
|

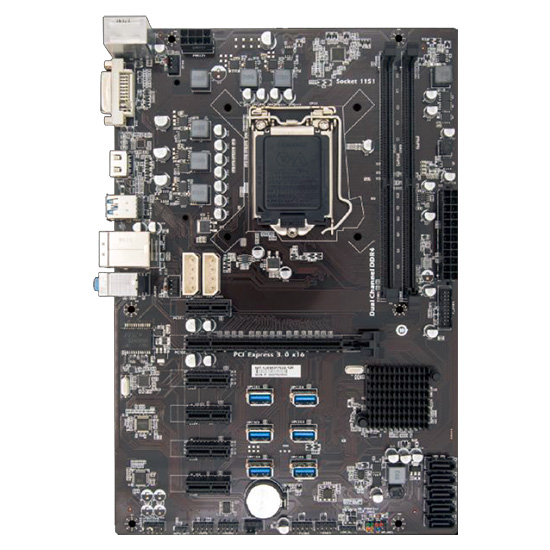

Expansion Slot
• 1 x PCIe 16x • 5 x PCIe 1x (via PCIe 1x connector) • 6 x PCIe 1x (via USB 3.0 connectors)
Storage
• 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) • 4 x SATA 6Gb/s connectors
|
Internal I/O
• 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x CPU fan header • 2 x system fan headers • 1 x front panel header • 1 x front panel audio header • 1 x S/PDIF Out header • 1 x USB 3.1 Gen 1 header • 1 x USB 2.0/1.1 header • 1 x speaker header • 1 x RGB (RGBW) LED strip extension cable header • 1 x Clear CMOS jumper • 1 x chassis intrusion header
Back I/O
• 1 x PS/2 keyboard/mouse port • 2 x SMA antenna connectors (2T2R) • 1 x DisplayPort • 1 x HDMI® port • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support • 1 x USB 3.1 Gen 2 Type-A port (red) • 4 x USB 3.1 Gen 1 ports • 2 x USB 2.0/1.1 ports • 1 x RJ-45 port • 1 x optical S/PDIF Out connector • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
BIOS
• 2 x 64 Mbit flash • Use of licensed AMI® UEFI BIOS • Support for DualBIOS™ • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chassis

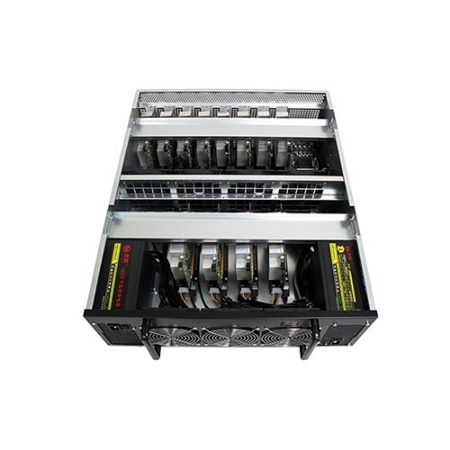

• 4U Rackmount with 2x1300W P/S • 12 Double Size Slots for up to 12 GPU Card • Dimension: 75" H x 22" W x 26.7" D Weight: 34 lb lb.
|
Environment
• Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 50,000 Hours • RoHS Compliance
|
