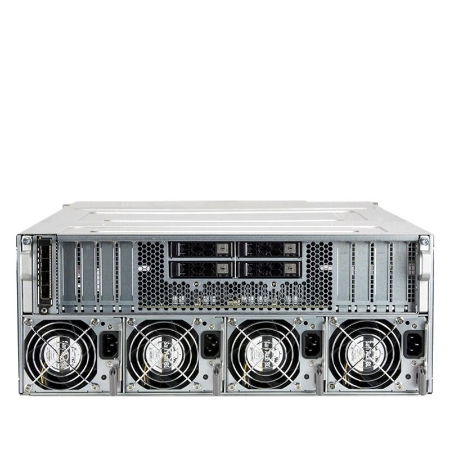

4U8GPU-A100-4189A

4U 8xGPU-A100, 6xU.2/SATA, 32x8-Channel DDR4, Ice Lake Xeon®

Key Features:

• 4U 8 x NVIDIA® HGX A100 GPU 40GB/80GB, NVLink, NVSwitch
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• Front 6 x 2.5” NVMe U.2 4.0 / SATA / SAS Hot Swap System Drives
• Rear 4 x 2.5” NVMe U.2 4.0 SSD for GPU Direct Mapping Storage
• 2 x M.2 NVMe / SATA for OS Mirrored Drives
• 32 DDR4 up to 12TB 8-Channel Memory, supports Intel® Optane™ Memory
• 10 PCIe 4.0 x16 Low Profile Slots
• OCP 3.0 PCIe 4.0 x16 for Networking Module, IPMI 2.0
• 4 x 2200W Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC, etc.

Download DataSheet

$0.00

SKU: 4U8GPU-A100-4189A, SYS-420GP-TNAR, BBP9-IX324U8G

Qty:

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Dual 3rd Generation Intel® Scalable Xeon® • Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads Chipset • Intel® C621A
GPU • NVIDIA® HGX A100 8-GPU 40GB/80GB, NVLink, NVSwitch Graphics • Aspeed AST2600 BMC VGA (DB15)
Memory • 32 DDR4 DIMM Sockets • Supports up to 12TB ECC DDR4 3200MHz RDIMM • 8-channel memory bus per processor • Supports Intel® Optane™ persistent memory 200 series Storage • 6 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays • Supports NVMe (16GT/s)/SATA (6Gb/s)/SAS (12Gb/s) RAID-0/1/5/10 • 2 x M.2-20110/2080 Sockets for NVMe 4.0 x4/SATA
Network • OCP 3.0 (PCIe 4.0 x16) for Network Module • Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28 • RJ45 Gigabit LAN for IPMI 2.0 by AST2600 (KVM) • Additional LAN or InfiniBand by PCIe add-on cards Expansion Slot • 10 x PCIe 4.0 x16 (Low Profile 2 Front, 8 Rear) • 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module
Other I/O • 1 x RJ45 IPMI (Front) • 1 x DB15 VGA, 2 x USB 3.1 Gen2 (Front) Internal I/O • 1 x RS-232 COM and 1 TPM header • 2 x USB 3.1/3.2 Header, 2 USB 3.2 Gen2 Type-A
BIOS • AMI® • Watchdog Supported Chassis • 4U Rackmount • 6 x 2.5” NVMe U.2 4.0/SATA/SAS Front Hot Swap Drive Bays • 4 x 2.5” NVMe U.2 4.0 Rear GPU Storage Drive Bays • Dimension: 6.9" (174mm) H x 17.6" (446mm) W x 35.4" (900mm) D • System Weight: 170 lbs. (77kg) Net, 230 lbs. (105kg) Gross
Power Supply • 4 x 2200W Redundant Titanium Level • 1200W: 100-127Vac / 2200W: 220-240Vac Input OS Support • Windows Server, Linux
Application • CPU Cluster for AI, Deep Learning, HPC. Environment • Operating Temperature: 0 to +35 C • Non-operating Temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
