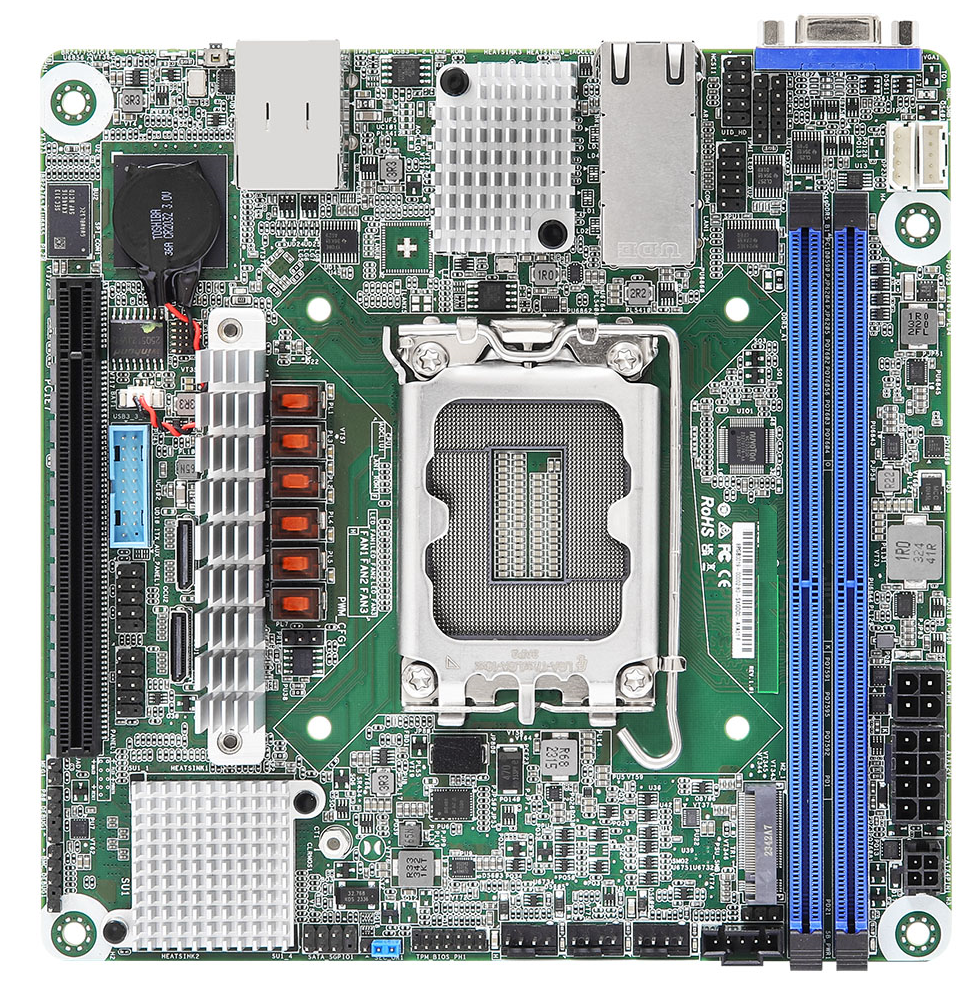

C266-ET

14th Gen Raptor Lake Xeon-E, 2x10GbE+IPMI, PCIe 5.0 16x Slot, DDR5 Memory

Featured Highlights
	14^th Gen Raptor Lake C266
	Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
	Intel® C266 Express Chipset
	ASPEED AST2600: 1 DB15 (VGA）
	2 DDR5 DIMM for up to 128GB Memory
	Intel® C266 (8 SATA 6Gb/s; RAID 0/1/5/10):2 OCuLink
	PCIe5.0 x16
	2 RJ45 (10GbE) by Marvell AQC113
	2 Type A (USB3.2 Gen1)
	DC12V 5A 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
	Optional 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Microsoft Windows®11 Pro, Server, Linux
	Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.

SKU: C266-ET

Specifications
Request for Info

Product specifications

Processor • Intel® Xeon® E-2400 series and Intel® Pentium® Gold G7400/G7400T processors Chipset • Intel® C266 Express Chipset
Graphics • ASPEED AST2600 • 1 x VGA port Memory • 2 x DDR5 DIMM • Supports up to 128GB
Network • 2 RJ45 (10GbE) by Marvell AQC113 Expansion Slot • 1 x PCI Express 5.0 x16 slot • 1 M-key (PCIe4.0 x4); support 2280 form factor [CPU] • 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s) [PCH] • 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) [PCH]

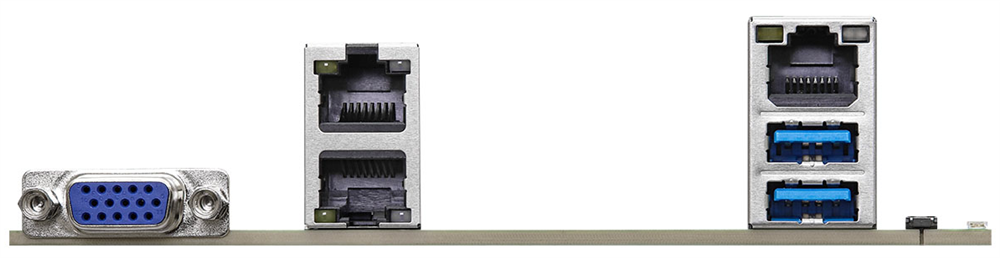

Storage • 8 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10 • 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s) • 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) Rear I/O • 1 UID button, 1 UID LED • 1 DB15 (VGA) • 2 Type A (USB3.2 Gen1) • 2 RJ45(10GbE), 1 dedicated IPMI
Internal I/O • 2 x USB 3.2 headers • 1 x Serial COM header Function • 1 x TPM header • 1 x 4in/4out GPIO header
System BIOS • AMI® UEFI 256MBitSPI Flash ROM Systemboard • Small Form Factor • Back I/O

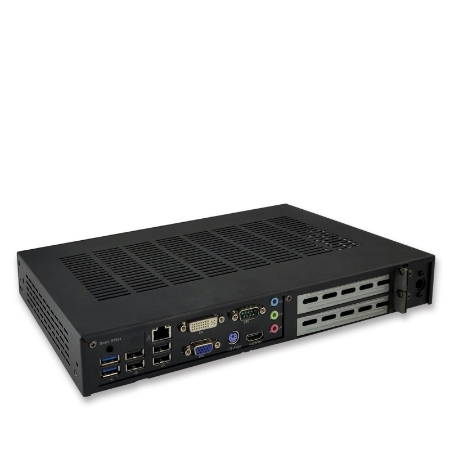

Chassis • 1750C Chassis • Dimensions: 12.25"(W) x 8"-9.9"(D) x 1.75"(H), variable width size to support different models • Full-size RISER Slot,Drive Bay: 2.5" ,Up to 2 x HD/SSD Drives • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA/wall mount bracket Power Supply • Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Microsoft Windows® 11 Pro, Server, Linux Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Xeon® E-2400 series and Intel® Pentium® Gold G7400/G7400T processors Chipset • Intel® C266 Express Chipset
Graphics • ASPEED AST2600 • 1 x VGA port Memory • 2 x DDR5 DIMM • Supports up to 128GB
Network • 2 RJ45 (10GbE) by Marvell AQC113 Expansion Slot • 1 x PCI Express 5.0 x16 slot • 1 M-key (PCIe4.0 x4); support 2280 form factor [CPU] • 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s) [PCH] • 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) [PCH]
Storage • 8 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10 • 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s) • 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) Rear I/O • 1 UID button, 1 UID LED • 1 DB15 (VGA) • 2 Type A (USB3.2 Gen1) • 2 RJ45(10GbE), 1 dedicated IPMI
Internal I/O • 2 x USB 3.2 headers • 1 x Serial COM header Function • 1 x TPM header • 1 x 4in/4out GPIO header
System BIOS • AMI® UEFI 256MBitSPI Flash ROM Systemboard • Small Form Factor • Back I/O
Chassis • 1750C Chassis • Dimensions: 12.25"(W) x 8"-9.9"(D) x 1.75"(H), variable width size to support different models • Full-size RISER Slot,Drive Bay: 2.5" ,Up to 2 x HD/SSD Drives • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA/wall mount bracket Power Supply • Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Microsoft Windows® 11 Pro, Server, Linux Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
