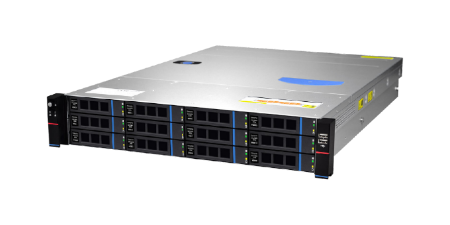

2U12A-C741A16-X4677B 4th Gen. 2 Socket 12 x 3.5" Bays 4 PCIe 5.0 Slots 2x2.5GbE 2x800W PSU

2U2P Eaglestream 4 x PCIe 5.0 and 16 DDR5, 12 x 3.5" SATA/SAS with 2 x 2.5GbE + IPMI

Key Features:
• Dual LGA4677 socket
• (2) 4th Gen Intel® Xeon® Scalable Processors
• (8+8) DDR5 DIMM slots, Support up to up to 2,048GB RDIMM/3DS RDIMM DDR5 4800/4400/4000 memory
• (12) 3.5" + (2) 2.5" hot-swap SATA/SAS HDDs drive bays
• (2) 2280 NVMe M.2 slots
• (2) FH/10.5”L/DW PCIe Gen.5 x16 + (2) HH/HL PCIe 5.0 x8
• (2) 2.5GbE + (1) IPMI port
• Onboard BMC w/ IPMI and iKVM support
• (1+1) 800W Redundant PSU, 80+ Platinum

Download DataSheet

SKU: 2U12A-C741A16-X4677B

Specifications
Request for Info

Product specifications

Processor • 4th Gen. Intel® Scalable Xeon® Processors • Socket (2) LGA4677, Max up to 350W (TDP) Chipset • Intel C741
Graphics • Aspeed AST2600 BMC VGA (DB15) • Up to 1920x1200 Memory • (8)+(8) DIMM slots • RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS • RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC • Up to 2,048GB RDIMM/3DS RDIMM DDR5 4800/4400/4000 memory • 8 Channels per CPU,1.1V
Storage • (12) 3.5" Hot-Swap SAS/SATA HDDs / (2) 2.5" SATA • (12) SATA 6Gb/s / SAS 12Gb/s / (2) Rear SAT2 • (2) Mini-SAS (10) SATA • Intel C741, 6Gb/s for SATA, 12Gb/s for SAS • RAID 0/1/10/5 (Intel RSTe) • M.2 (2) 2280 (by PCIe Gen.4 interface) • U.2 (4) MCIO 8x for (8) NVMe Options • VROC Support Option Network • Intel i226 • (2) 2.5GbE ports + (1) GbE dedicated for IPMI • Realtek RTL8211F for IPMI
Expansion Slot • (2) PCIe Gen.5 x16 slot / (2) PCIe Gen.5 x8 slot • (2) riser cards for (2) FH/10.5"L/DW PCIe 5.0 x16 • (2) HH/HL Low Profile PCIe 5.0 x8 slots • (4) PCI-E x8 MCIO for NVMe Back I/O • 1 x RJ45 GbE IPMI • 2 x RJ45 2.5GbE LAN • 1 x DB15 VGA • 2 x USB 3.2 Gen 1 • 2 x USB 2.0
Internal I/O • 2 x USB 3.2 Gen 1 (2 x Headers) • 1 x TPM Header BIOS • AMI® • Watchdog Supported
Chassis • 2U Rackmount 2U12A • 12 x 3.5”SAS/ SATA Hot Swap Drive Bays • (4) 8038 How Swap fans • Dimension: 3.43" (87 mm) H x 17.59" (447 mm) W x 27.99" (711.35 mm) D • System Weight: 44.8 lbs. (20.3 kg) Net, 73 lbs. (33.1kg) Gross Power Supply • 800W (1+1) Redundant Titanium Level Power Supply • 100-240Vac/47-63Hz and 240Vdc Input
OS Support • Windows Server, Linux, FreeBSD, VMware Application • Virtual Server, Compute Server, Database Server, Cloud Computing
Environment • Operating Temperature: 10 to +35 C • Non-operating Temperature: -40 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
