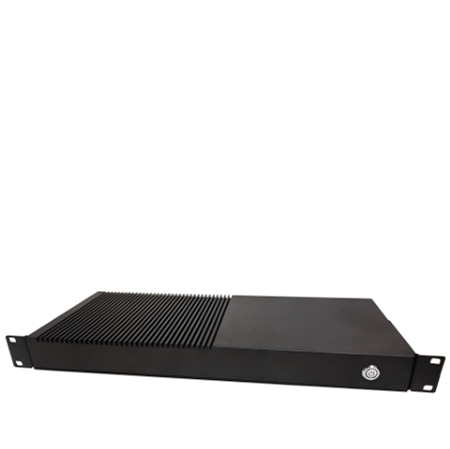

Mini-1U

Fanless Chassis for u-series Products
Featured Highlights

Dimensions:
17"(W) x 7.44"(D) x 1.7"(H)
ITX Fanless Case for Slim ITX Socket-S MB
M.2 or mSATA SSD Drive Bay
Built-in DC to DC Converter
DC12-19V Fanless Power Adapter
Net weight: 10 lb, packaging weight 12 lb.
Color: Black (Custom colors available with special order)
Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone
SKU: Mini-1U
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
H12A Intel® Core™ i5-12450H Alder Lake 2 DDR4SO Intel UHD 1 LAN + WiFi/BT 4 R HDMI + VGA 1 M.2 2230 Realtek® ALC897
U11L2 i7-1180G7 Tiger Lake-u 2 DDR4SO Intel Iris Xe 2 LAN + WiFi/BT + 4G-LTE 2 R+4 F 2 R 2 DP+2 HDMI2.0 1 MinPCIe TPM 7.1 ALC897
U10A/U10AL2 i7-10710U Comet Lake-u 2 DDR4SO 10th Gen. UHD 1 Realtek\RTL8111H+option:1 Realtek\RTL8111H 3 H 4 R+2 H 1 DP\VGA+1 HDMI+1 LVDS/H TPM 5.1 ALC662
U8A1 / U10A1 i5-10210u/i5-8259u Comet Lake-u/Coffee Lake-u Platform SOC 2 DDR4SO UHD 650/Iris Plus 655 2 H 4 R HDMI+VGA/DP+LVDS/H 7.1 ALC897
Slim-7000A2/6000A2 i5-7200u Kaby Lake-u Skylake-u 1 DDR4SO Integrated 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F option 2 R+2 H 2 R 2 HDMI/R+1 eDP/H\LVDS 1 MiniPCIe 5.1 ALC662
i5-6267FL i5-6267u Skylake-u 2 DDR3SO Intel Iris 550 1 Realtek\RTL8111F 2 R+4 H 2 R+2 H 1 HDMI+1 VGA+1 LVDS 1xPS/2+LPT+GPIO 5.1 ALC662
Nano-U12P 12th Gen Core i7/i5/i3 Alder Lake-u 2 DDR4SO Intel Iris Xe/UHD 12th Gen. LAN (Option 2.5GbE) + WiFi 6/BT 5.0 2 R + 2 F HDMI 2.1 + DP 1.4 + 2 Thunderbolt 4 HD Audio
Nano-U11C i7-1185G7 Tiger Lake-u 2 DDR4SO Iris Xe/UHD LAN + WiFi/BT + 5G/4G-LTE 2 F 4 R 2HDMI + DP+Thunderbolt4 CJC6811A
Nano-U10C i7-10510u Comet Lake-u 2 DDR4SO Intel UHD 620 1 Realtek\RTL8111H 2 F +2 R HDMI+DP+Type-C 2.1 ALC269
Nano-U10F i7-10510u Comet Lake-u 2 DDR4SO Intel UHD 620 1 Realtek\RTL8111H 2 F 2 F + 2 R 1 HDMI+1 DP 2.1 ALC269
Nano-U10L6 Intel 10th Gen. Core Comet Lake-u (SOC) 1 DDR4SO UHD 6 LAN + Mini PCIe + SIM 1 H 4 F Mini PCIe + M.2-2280
Nano-U10A i7-10710u Comet Lake-u/Whiskey Lake-u Platform (SOC) 2 DDR4SO UHD 620 / Iris Graphics 1 Intel® i219LM+SIM 1 4 1 HDMI + Optional HDMI TPM 5.1 ALC662
Nano-U10FL2C/Nano-U10L2C BGA-1528 Comet Lake-u 2 DDR4SO Intel UHD 4K 2 x Intel® i211+i219 2F + 2S 2F + 2S 1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF 5.1 ALC662
Nano-U10L2 i7-10710U Comet Lake-u 2 DDR4SO Intel UHD 4K 2 x Intel® i211+i219 2F + 2S 2F + 2S 1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF GPIO 5.1 ALC662
Nano-U8FL2C6 i7-8565U Whiskey Lake-u 2 DDR4SO Intel UHD 620/610 2 x Intel® i211A+i219LM 4H 4(USB3.1)R 1 HDMI+1DP+1LVDS/eDP optional; x8 GPIO, TPM, SPI 5.1 ALC662
Nano-U8L2 i5-8259u Coffee Lake-u Comet Lake-u 2 DDR4SO Intel UHD 4K 2 x Intel® i211+i219 2F + 2S 2F + 2S 1 HDMI+ 1 DP GPIO 5.1 ALC662
Nano-8000FL2C i7-8550u Skylake-uKaby Lake-u/-r 1 DDR4SO Intel UHD 620 Intel HD 610 1 Realtek+option:1 Realtek option 2 R+2 H 2 F + 2 R 1 HDMI+1 VGA\DP GPIO 5.1 HDMI
Nano-8000A i5-8250u Skylake-u Kaby Lake-u/-r 1 DDR4SO Intel UHD 620 1 Realtek + WiFi+BT 2 R 2 F 1 HDMI+1 Type-C/F 5.1 HDMI
Nano-8000C2 i5-8250u Kaby Lake-r Kaby Lake-u 0 DDR4OB Intel UHD 620 Intel HD 620 1 Realtek 2 R 2 R+2 F 1 HDMI 5.1 HDMI
Nano-7200L2/6100L2 i3-6100u Skylake-u Kaby Lake-u 1 DDR4SO Intel HD 520 2 Realtek 2 R+1 H 4 F 1 HDMI+1 DP MiniPCIe 5.1 ALC662
Nano-7100D i3-7100u Kaby Lake-u 1 DDR4SO Intel HD 620 1 Realtek 2 F 4 F 1 HDMI+1 DP 7.1 ALC892
Nano-6200D i5-6200u Skylake-u 1 DDR4SO Intel HD 520 1 Realtek 2 F 4 F 1 HDMI+1 DP 5.1 ALC662
Nano-6100D i3-6100u Skylake-u 1 DDR4SO Intel HD 520 1 Realtek 2 F 4 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 ALC662
Nano-6200C/6100C i3-6100u Skylake-u 1 DDR4SO Intel HD 520 1 Realtek 2 F 4 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 ALC662
Nano-3855L2 3855u Skylake-u Kaby Lake-u 1 DDR4SO Intel HD 520 1 Intel\i219LM+option:1 Realtek\RTL8111F option 2 R+2 F+2 H 2 F 1 HDMI+1 VGA 1xPS/2+GPIO+TPM 5.1 ALC662
Nano-3865C 3865u Skylake-u Kaby Lake-u 1 DDR4SO Intel HD 610/ HD 510 1 Realtek 2 R 2 F 1 HDMI+1 Type-C/F 5.1 HDMI
Nano-3865A/3855A 3865u Kaby Lake-u Skylake-u 1 DDR3SO Intel HD 610 Intel HD 510 1 Realtek 2 R 2 F 1 HDMI 5.1 HDMI
NUC-8000 i7-8565u Whiskey Lake-u ITE 8528 2 DDR4SO Intel UHD 620 1 Realtek\RTL8111F 2 F 2 R+2 F 1 HDMI+1 DP 2.1 ALC269+5.1 HDMI
Nano-i80 i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Intel 2 H 2 F+2 R 1 miniDP+1 HDMI MiniPCIe 7.1 Intel
Nano-i56/i36 i5-6260u Skylake-u 2 DDR4SO Intel HD 540 Intel HD 520 1 Intel 2 H 2 F+2 R 1 miniDP+1 HDMI 7.1 Intel
Nano-i75/i55/i35 i7-5557u Broadwell-u 2 DDR3SO Intel Iris 6100 Intel HD 6000 Intel HD 5500 1 Intel 2 H 2 F+2 R 1 miniDP+1 HDMI 7.1 Intel
Nano-i77/i57/i37 i7-7567u Kaby Lake-u 2 DDR3SO Intel Iris 645 Intel Iris 640 Intel HD 620 1 Intel 2 H 2 F+2 R 1 miniDP+1 HDMI2.0 7.1 Intel
Nano-i200 i5-4200u Haswell-u 1 DDR3SO Intel HD 5000 1 Intel 2 H 2 F+2 R 1 HDMI+1 DP 2 MiniPCIe 5.1 ALC662
3855Z/6100Z 3855u Skylake-u Kaby Lake-u 2 DDR4SO Intel HD 520 1 Realtek+1 Intel 2 R 2 F 1 DP+1 HDMI MiniPCIe 5.1 ALC662

Support Models

*
*
*
