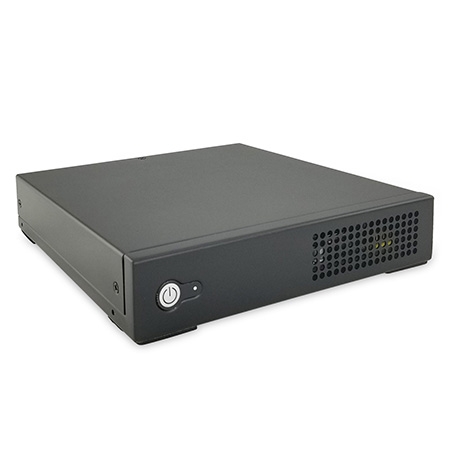

Picture of H12A

H12A

Slim 12th/13th Gen, Iris Xe GPU 3 Displays HDMI 2.0+VGA+LVDS, M.2 NVMe 4.0+M.2 WiFi/BT, SATA+4 USB 3.0

Featured Highlights
	12th/13th Gen. Intel® Core™ i9/i7/i5/i3-U/P/H Processor
	Intel® Alder Lake-u Platform (SOC)
	Intel® UHD Graphics, HDMI+VGA+LVDS
	2 DDR4 SO-DIMM for up to 64GB
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2 WiFi/BT
	4 USB 3.0, 2 USB 2.0
	7.1 Realtek® ALC897
	DC19V 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10
	Applications: Set Top Box, Digital Signage, POS/Kiosk, Entertianment PC, Edge AI, etc.

SKU: H12A

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W 13th Gen u/P/H-series processor: • Intel® Core™ i7-1355u, i7-1365u, i7-13620H, i7-1360P • Intel® Core™ i5-1335u, i5-1345u, i7-13420H, i7-1340P Chipset • Intel® Alder Lake Platform (SOC)
Graphics • Intel® Iris® Xe Graphics 8K/4K Resolution/Intel® 12th Gen. UHD Grapchics • 1 x HDMI® 2.0, 4K 60Hz Graphics port • 1 x VGA port • 1 x LVDS header (VDD optional 3.3V/5V/12V) Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Realtek® ALC897 (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 4 x USB 3.0 ports • 1 x VGA port • 1 x HDMI® port • 1 x LAN port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector Internal I/O • 2 x USB 2.0 headers (for up to 4 x USB 2.0 ports) • 1 x LVDS header
System BIOS • AMI® BIOS Systemboard • Small Form Factor • Back I/O
Chassis • 140D Small Form Factor with aluminum panel • Dimensions: 7"(W) x 7.2"(W) x 1.4"(H), Weight: 2 lb. (Net) 4 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets Power Supply • Power: DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, Application • SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Entertainment PC, Edge AI,etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
