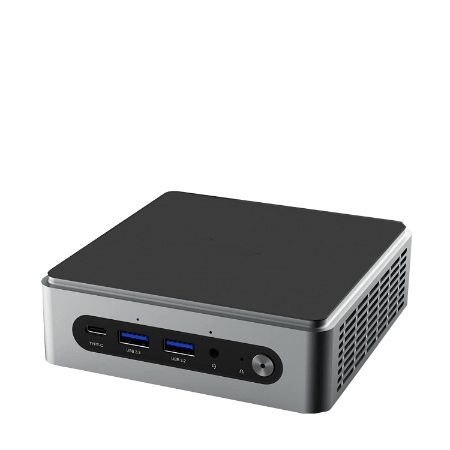

Nano-U12P - 12th Gen Alder Lake 8K Mini Digital Signage Player

12th Gen. Alder Lake, Iris® Xe 8K GPU 4 Display, 2 HDMI 2.1+2 ThunderBolt 4, WiFi 6/BT 5.0+2.5GbE LAN

Featured Highlights
	12^th Gen. Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u Processor
	Intel® Alder Lake Platform (SOC)
	Intel® Iris® Xe/12^th Gen. 8K Graphics, 2 HDMI 2.1+2 Type-C (8K DP 1.4 / HDMI 2.1)
	2 DDR4 SO-DIMM for up to 64GB Memory
	1 x M.2 2280 KEY-M for SATA/PCIE SSD ,1 x M.2 2230 KEY-E for WIFI/BT
	Gigabit (Optional 2.5GbE) LAN, M.2 WiFi 6/BT 5.0
	2 USB 3.2, 2 USB 2.0
	HD Audio Sound
	DC12-19V (UL/CE/FCC Certified)
	OS Support: Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version)
	Applications: Digital Signage Player, Edge AI, Deep Learning, Entertainment PC, Set Top Box, etc.

SKU: Nano-U12P

Nano-U12P

Features 12th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u processors (all formerly known as Alder Lake). This is perfect for Digital Signage Player, Network Security, POS Kiosk, Edge AI, Deep Learning PC, Entertainment PC, Set Top Box and Mini PC etc. This tiny sized computer has impressive graphics with Intel® Iris® Xe/12th Gen 8K graphics, HDMI 2.0 + DP 1.4 + 2 ThunderBolt 4 Type-C, and up to 64GB of dual-channel DDR4 memory.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Option: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U • Intel® Core™ i3-1315U, i3-1305U, i3-1315U Chipset • Intel® Alder Lake Platform (SOC)
Graphics • Intel® Iris® Xe/12th Gen. UHD Graphics, 8K Resolution • Support 4 Displays • 2 x HDMI® 2.0 Type-A, 4K 60Hz Graphics port • 2 x DP 1.4/HDMI® 2.1 Type-C, 8K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RT8111H Gigabit (10/100/1000 Mb/s) LAN (Option: Intel® 2.5GbE (10/100/1000/2500 Mb/s) LAN) • 1 x M.2 2230 (for WiFi+BT or Other Module) • Option: Onboard 802.11ax WiFi 6/Bluetooth 5.0 Module • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x M.2 2280 KEY-M With PCIe Gen4 for NVME SSD or SATA3.0 SSD Audio • USB HD Audio Sound • 1 x 3.5mm Audio Combo jack

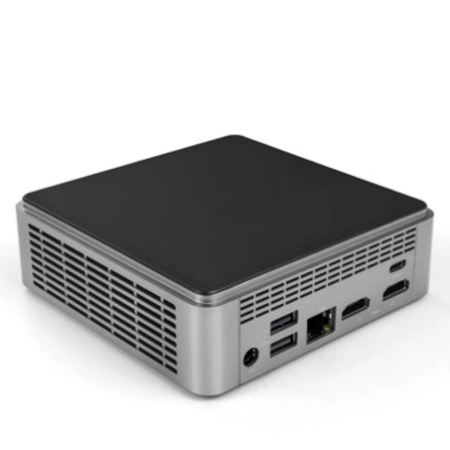

Back Panel I/O • 2 x USB 2.0 Type-A • 1 x Type-C port • 2 x HDMI® Type-A • 1 x RJ45 LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x Type-C（Support PD65W Input，PD15W Output，DP/HDMI® Output Display and USB3.2) • 2 x USB3.2 GEN2(10Gbps) Type-A (Front) • 1 x 3.5mm Audio Combo jack (Front) • 1 x Clear CMOS/Recover button • 1 x Power Button，1
Function • Option: TPM 2.0 support System BIOS • AMI® UEFI BIOS • Watchdog supported
Chassis • Dimensions: NUC chassis 4.72"(W) x 4.72"(D) x 1.89"(H) • Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC19V Power Adapter 2.5/5.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version) Application • Digital Signage Player, Edge AI, Deep Learning, Entertainment PC, Set Top Box, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
