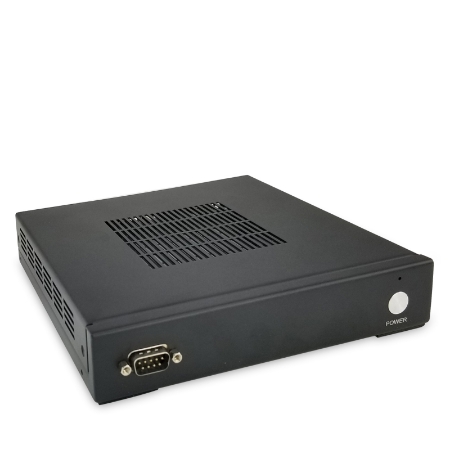

J1900AE - Fanless Embedded Mini PC

Picture of J1900AE

Picture of J1900AE

Picture of J1900AE

Picture of J1900AE

J1900AE - Bay Trail 4 Core Embedded Fanless PC

Bay Trail 4Core Celeron®, 10-year Longevity, HD Graphics HDMI+Optional VGA, PCIe 3.0 x1+MiniPCIe+SIM+COM

Featured Highlights
	Intel® Celeron® J1900 Processor
	Intel® Bay Trail Platform (SOC)
	Intel® HD Graphics, HDMI+Optional VGA
	DDR3L SO-DIMM for up to 8GB Memory
	2 SATA-6Gb/s, mSATA-6Gb/s
	PCI Express 3.0 x1, MiniPCIe
	Gigabit LAN, MiniPCIe-WiFi
	USB 3.0, 4 USB 2.0
	5.1 ALC662 Audio Sound
	DC12V 3A 36W or higher wattage Power Adapter(UL/CE/FCC Certified)
	OS Support: Windows 7, Windows 8, Windows 10, IoT
	Applications: Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc.

SKU: J1900AE

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W Chipset • Intel® Bay Trail Platform (SOC)
Graphics • Intel® 7th Generation HD Graphics 1080p Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • Optional 1 x VGA port Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x MiniPCIe half size slot (Taken by WiFi+BT Module) • 1 x 3G/4G-LTE Modem via MiniPCIe full size slot (pair up with SIM socket) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x1 slot • 1 x MiniPCIe full size slot (for mSATA-6Gb/s or 3G/4G-LTE Modem with SIM pair) • 1 x MiniPCIe half size slot (for WiFi+BT or Other Module)
Storage • 2 x SATA 6Gb/s • 1 x mSATA 6Gb/s by MiniPCIe full size slot Audio • Realtek® ALC662 6-channel (5.1) • Internal audio, S/PDIF headers • 1 x 3.5mm Analog Stereo Audio jack (Optional Additional 1 x Analog Stereo Audio jack)
Back Panel I/O • 1 x USB 3.0 port • 4 x USB 2.0 ports (1 in USB 3.0 connector) • 1 x HDMI® port • Optional 1 x VGA port (by VGA header) • 1 x LAN port • 1 x 3.5mm Audio jack (Optional: Additional 1 x 3.5mm Audio jack) • 1 x DC-In 2.5mm Power Connector Internal I/O • 3 x USB 2.0 headers • 1 x Serial COM header • 1 x VGA header • 1 x S/PDIF header • 1 x LVDS header
Function • 1 x 4in/4out GPIO Header System BIOS • Watchdog supported
Systemboard • Small Form Factor • Back I/O Chassis • 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: Slim 10a Series 1.4" Slim • Option: 100F Fanless 1.4" Slim • Option: 140D 7"x7"x1.4" • Option: 175C Case 1.75" H, 175F Fanless 1.75" H (Convertible to 1U with Rack Ear Kit) • Option: 300B Aluminum 2.1" H, 300A w/Slim DVD Bay, 300R with RISER Slot • Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Option: 1000 Aluminum Form Factor • Option: 1750C with slot 1.75" 1U Height (Convertible to 1U with Rack Ear Kit) • Option: 1750F Fanless with slot 1.75" 1U Height (Convertible to 1U with Rack Ear Kit)
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 7, Windows 8, Windows 10, IoT
Application • Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc. • Embedded-Longevity Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
