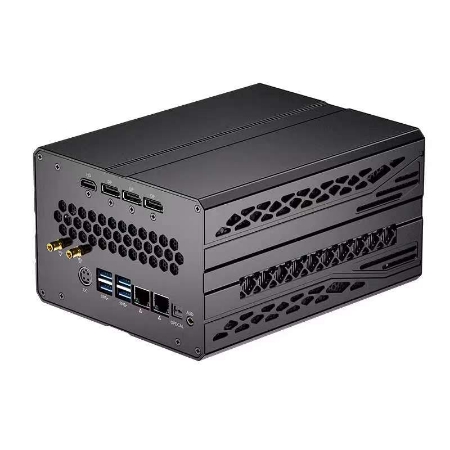

i2318 - Raptor Lake with NVIDIA® RTX™ 5060 for Edge AI

Intel® 14th Gen. Series i9, NVIDIA® RTX™ 5060 Graphics, 1 x HDMI + 3 DP, M.2 PCI 4.0 slots + 4 x USB 3.2 + 4 x USB 2.0

Featured Highlights
	Intel® 14th Gen. Core™ i9, i7 Series Processor
	Intel® Raptor Lake Chipset
	NVIDIA® RTX™ 5060 Graphics, 1 x HDMI® 2.1 + 3 DP 2.1
	2 x DDR5 SO-DIMM for up to 96 GB Memory
	2 x M.2 NVMe/SSD, SATA 3.0
	2 x Gigabit LAN, M.2 WiFi/BT
	4 x USB 3.2, 4 x USB 2.0, OPDCAL,
	HD Audio Sound
	DC19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux
	Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

SKU: i2318

i2318

Unlock the potential of AI-driven computing with i2318, powered by the formidable 14th Gen. Intel® Core™ i9/i7 Series Processor and Intel® Raptor Lake Chipset. Equipped with onboard NVIDIA® GeForce RTX™ 5060 and support for AI tasks, it delivers unparalleled performance for GPU Computing and AI Edge applications. With versatile connectivity options and robust performance, it's the ideal solution for gaming, multimedia, and demanding AI workloads. Experience seamless productivity and entertainment with the i2318.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i9-14900F 4.30/5.80GHz 8P+16E-Cores 32Threads 36+32M Cache 65/219W • Intel® Core™ i7-14700F 4.20/5.40GHz 8P+12E-Cores 28Threads 33+28M Cache 65/219W • Intel® Core™ i5-14400F 3.50/4.70GHz 6P+4E-Cores 16Threads 20+9.5M Cache 65/148W Chipset • Intel® Raptor Lake Chipset
Graphics • NVIDIA® GeForce RTX™ 5060Ti 16G, 5060-8G GPU • Multi-display for up to 4 monitors • 1 x HDMI® 2.1 ports, supporting a maximum resolution of 4K @60Hz • 3 x DP 2.1 supporting maximum resolution of 8K @60Hz Memory • 2 x DDR5 SO-DIMM • 5600/3200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
Network • 2 x Gigabit (10/100/1000 Mb/s) Realtek® RTL8111H LAN • 1 x M.2 2230 for WiFi+BT Module • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for PCIe4.0 x4 for NVMe/SATA SSD) • 1 x PCIe 5.0 x16 Slot for NVIDIA® GPU Module
Storage • 1 x M.2 2280 (for PCIe x4 NVMe/SSD) Audio • HD Audio • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 4 x USB 3.2 ports • 3 x DP1.4 port • 1 x HDMI® 2.1 ports • 2 x LAN port • 1 x OPDCAL • 1 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported
Chassis • Dimensions: 6.6"(W) x 8.67"(D) x 4.52"(H), Weight: 3.5 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU and GPU Fans with Heatsinks • Color: Grey as default color, option: Black, Silver, Gold. Other custom color available Power Supply • Power: DC19V 300W Power Adapter 4-pin Plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11, Linux Applications • GPU Computing, AI Edge, Video processing, Visual Computing, Smart Manufacturing, High Performance PC, Gaming PC, etc.
Environment • Operating Temperature: 0 to +50 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
