Picture of V7000-4HDMI

Picture of V7000-4HDMI

Picture of V7000-4HDMI

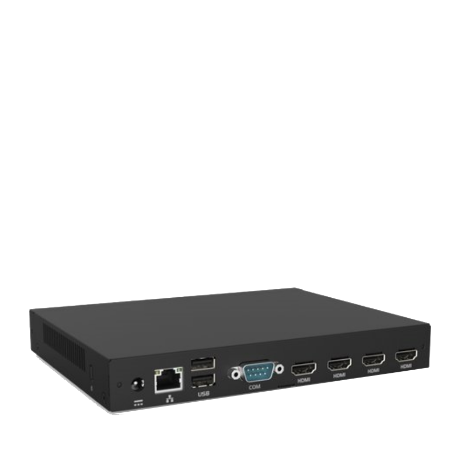

V7000-4HDMI

AMD Ryzen™ Mobile, Rembrandt R 7000 Series + 4 HDMI 2.0, M.2 + 2-channel DDR5, 4 USB + Type-C

Featured Highlights
	AMD Ryzen™ 5 7535U Processor
	AMD Rembrandt R Chipset
	AMD Radeon™ 660M, 4 HDMI 2.0
	2 DDR5 SO-DIMM for up to 64GB Memory
	M.2 SATA/NVMe SSD
	Gigabit LAN, WiFi6+BT5.2, M.2 4G
	USB 3.2 Gen2, 3 USB 2.0, Type-C, COM
	Realtek® ALC897
	Power Supply: DC19V (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux
	Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: V7000-4HDMI

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ 5 7535U 2.90/4.55GHz 6Cores 12Threads 16M 28W Chipset • AMD Rembrandt R SoC
Graphics • AMD Radeon™ 660M Graphics • Support 4 Graphics ports • 4 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz Memory • 2 x DDR5 SO-DIMM • Unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • Realtek® RTL8852BE WiFi6+BT5.2 • 1 x M.2 3042 (for 4G Module Pair w/ SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 3042 (for 4G Module Pair w/ SIM) • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD) Audio • Realtek® ALC897 HD Audio • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 4 x HDMI® 2.0 ports • 1 x LAN port • 2 x USB 2.0 ports • 1 x RS232 Serial COM port • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x USB 3.2 Gen2 port (Front) • 1 x USB 2.0 port (Front) • 1 x Type-C USB 3.2 Gen1 port (Front) • 2 x 3.5mm Audio jacks (Front)
System BIOS • Watchdog supported Chassis • Booksize i 1" Slim size enclosure 7.48"(W) x 5.82"(D) x 1.02"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power: DC19V 4.74A or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux
Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc. Environment • Operating Temperature: -10 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ 5 7535U 2.90/4.55GHz 6Cores 12Threads 16M 28W Chipset • AMD Rembrandt R SoC
Graphics • AMD Radeon™ 660M Graphics • Support 4 Graphics ports • 4 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz Memory • 2 x DDR5 SO-DIMM • Unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • Realtek® RTL8852BE WiFi6+BT5.2 • 1 x M.2 3042 (for 4G Module Pair w/ SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 3042 (for 4G Module Pair w/ SIM) • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD) Audio • Realtek® ALC897 HD Audio • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 4 x HDMI® 2.0 ports • 1 x LAN port • 2 x USB 2.0 ports • 1 x RS232 Serial COM port • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x USB 3.2 Gen2 port (Front) • 1 x USB 2.0 port (Front) • 1 x Type-C USB 3.2 Gen1 port (Front) • 2 x 3.5mm Audio jacks (Front)
System BIOS • Watchdog supported Chassis • Booksize i 1" Slim size enclosure 7.48"(W) x 5.82"(D) x 1.02"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power: DC19V 4.74A or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux
Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc. Environment • Operating Temperature: -10 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
