Think Big. Go Small. Eco-Smart Computing

Nano-8000C2

Kaby Lake-R, 2COM+6 USB, M.2+NVMe
Featured Highlights
Intel® Core™ i5/i3/Celeron®-u Processor
Intel® Kaby Lake-r/Kaby Lake-u Platform (SOC)
Intel® UHD 620/HD 620/ 4K Graphics ,HDMI
4G/8G/16GB DDR4 Memory
M.2 SSD/NVMe, 32G/64G/128G eMMC
Gigabit LAN + M.2-WiFi
4 USB 3.0, 2 USB 2.0
5.1 HDMI Audio Sound
DC12V 3A 36W or higher wattage Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

Start at $199.00 Call for pricing Options(800-999-1278)
SKU: Nano-8000C2
Product specifications
Processor

• Intel® Core™ i5-8250u 1.60/3.40GHz 4Core 8Threads 6M 10/15/25W
• Intel® Core™ i3-8130u 2.20/3.40GHz 2Core 4Threads 4M 15W
• Intel® Celeron® 3867u 1.80GHz 2Core 2Threads 2M 15W
• Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W

Chipset
• Intel® Kaby Lake-r Platform (SOC)
• Option: Intel® Kaby Lake-u Platform (SOC)
Graphics
• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Option: Intel® HD 620 Graphics, 4K Resolution
• Support 1 Graphics port
• 1 x HDMI, supporting a maximum resolution of 1920x1080 Support for HDMI 1.4 version and HDCP 2.2
Memory
• 4G/8G/16G DDR4 (built-in, non-changeable)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 socket (for WiFi+BT or Other Module)
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
• 32G/64G/128G eMMC Flash internal Storage
Audio
• 5.1 HD audio subsystem via HDMI 1.4 interface
• 1 x 3.5mm analog stereo audio Combo jack (Headphone/Mic )(Front)

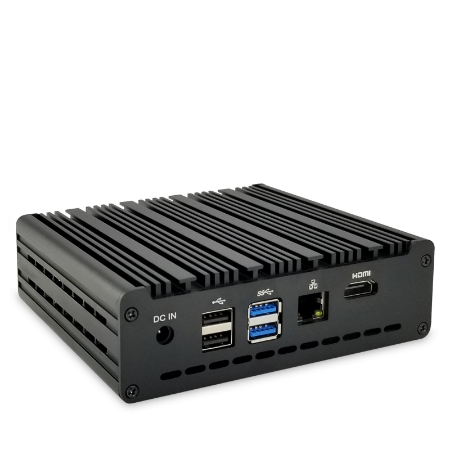

Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI port
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
Other I/O
• 2 x USB 3.0 Ports (Front)
• 2 x Serial COM ports
• 1 x 3.5mm Combo jack(Front)
System BIOS
• AMI® UEFI / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
Chassis

Nano-F5 Chassis
• 15mm 2.5" HD Bay
• Dimensions: 5.43(W) x 4.96(D) x 1.65(H) inch (Height dimension can changeable), Weight: 1.5 lb (net) 5 lb (gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: Nano-F7S 8.27"(W) x 6.30"(D) x 1.38"(H) ,Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H)

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, Industrial Control/IPC, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
