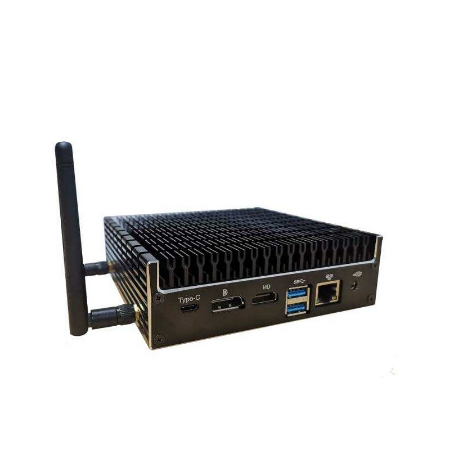

Nano-U10F - Comet Lake Fanless Mini PC

10th Gen. Comet Lake-u, UHD620 4K GPU 2 Display, SATA+M.2 NVMe SSD, 6 USB + Type-C USB

Featured Highlights
	Intel® Core™ i7/i5/i3/Celeron®/Pentium®-u Processor
	Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
	Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+DP
	2 DDR4 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2-WiFi
	4 USB 3.0, 2 USB 2.0, Type-C
	Eshine® CJC6811 Audio Codec
	DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
	Optional DC12V 2.5mm AC Adapter
	OS Support: Windows 10/11, IoT, Linux
	Applications: Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, etc.

In Stock

SKU: Nano-U10F

Nano-U10F

Features 10th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u processors (all formerly known as Comet Lake / Whiskey Lake). This is perfect Fanless PC for Digital Signage Player PC, POS/Kiosk, AI Edge, IoT, Set Top Box and Mini PC etc. This Fanless tiny sized computer has impressive graphics with Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+DP, and up to 64GB of dual-channel DDR4 memory. Is Prefect for Fanless Digital Signage Player PC.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 10/15/25W • Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 12.5/15W • Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 12.5/15W • Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold-5405u 2.3GHz 2Core 4Threads 2M 15W Chipset • Intel® Comet Lake-u Platform (SOC) • Option: Intel® Whiskey Lake Platform (SOC)
Graphics • Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Eshine® CJC6811 Audio Codec • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x HDMI® port • 1 x DP • 1 x LAN port • 1 x Type-C port • 2 x USB 3.0 ports • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS) • Watchdog supported Chassis • Nano-F15 Chassis Enclosure • Dimensions: 7.6"(D) x 4.88"(W) x 2.1"(H) (Depth dimension changeable), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets • Option: Nano-F5 5.43"(W) x 4.96"(D) x 1.65"(H), Nano-F7S 8.27"(W) x 6.30"(D) x 1.38"(H), Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H), NUC-8 4.92"(W) x 4.92"(D) x 1.50"(H) with Fan, Nano-12C 5.44"(W) x 4.97"(D) x 1.46"(H)
Power Supply • Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Application • Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
