Processor
• Intel® 6th Generation Skylake processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W)
• Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W)
• Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W)
• Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W)
• Intel® Celeron™ processor series: G3900T (35W), G3900 (51W)
Chipset
• Intel® H110 Express
• Supports 6th/7th Gen Socket-1151 Processor
• 14 High Performance Lanes (6 x PCIe 2.0)
|
Graphics
• Intel® HD 530 Graphics, 4K Resolution
• Support 3 Graphics ports
• 1 x DP 4K 60Hz Graphics Port
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Header
Memory
• 2 x DDR4 DIMM
• 2666/2400/2133MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 64GB (however 32GB is most practical)
|
Network
• 1 x Intel® i219V Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
• 1 x PCI Express 3.0 4x slot
|
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC887 8-channel (7.1)
|

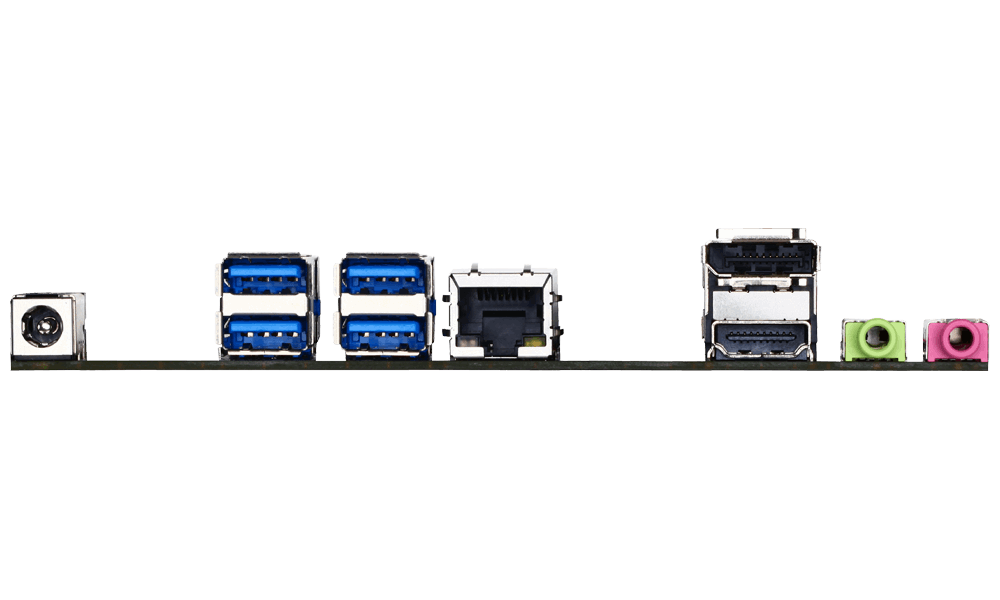

Back Panel I/O
• 4 x USB 3.0 Ports
• 1 x DP port
• 1 x HDMI® port
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 4 x USB 2.0 Headers
• 1 x VGA header
|
Function
• 1 x 4in/4out GPIO Header
System BIOS
• AMI® UEFI BIOS
|
Chassis
• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.4(H) x 7(W) x 7(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 140D without front USB ports is 7" depth 140D2 with 2 front USB port is 7.5" depth
• Option: 138D 7"x7"x1.38H
• Option: 175C Case 1.75" H
175F Fanless 1.75" H
• Option: 400R with RISER Slot
400S Swap Bay 2x2.5"
• Option: 1000 Aluminum Form Factor
• Option: 1750C with slot
|
Power Supply
• Power: DC12-19V 3.2-6.2A Power Adapter (UL/CE/FCC Certified)
• Optional 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
|
Application
• Set Top Box, Digital Signage, Surveillance, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
