Processor
• Intel® 6th Generation Skylake processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W)
• Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W)
• Following CPU is compatible to this system but do not support Intel vPro Features
• Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W)
• Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W)
Chipset
• Intel® Q170 Express • Supports Intel® vPro® Technology • 26 High Performance Lanes (20 x PCIe 3.0)
|
Graphics
• Intel® HD 530 Graphics, 4K Resolution • Option: Intel® HD 630 Graphics, 4K Resolutions • 1 x DP, 4K 60Hz Graphics port • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA geader • 1 x LVDS header
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered ECC (Dual Channel I/O)
• Supports up to 16GB
|
Network
• 2 x Intel® Gigabit (10/100/1000 Mb/s) LAN
Expansion Slot
• 1 x PCI Express 3.0 x4 slot • 2 x MiniPCIe full size slots
|
Storage
• 2 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC887 8-channel (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
|

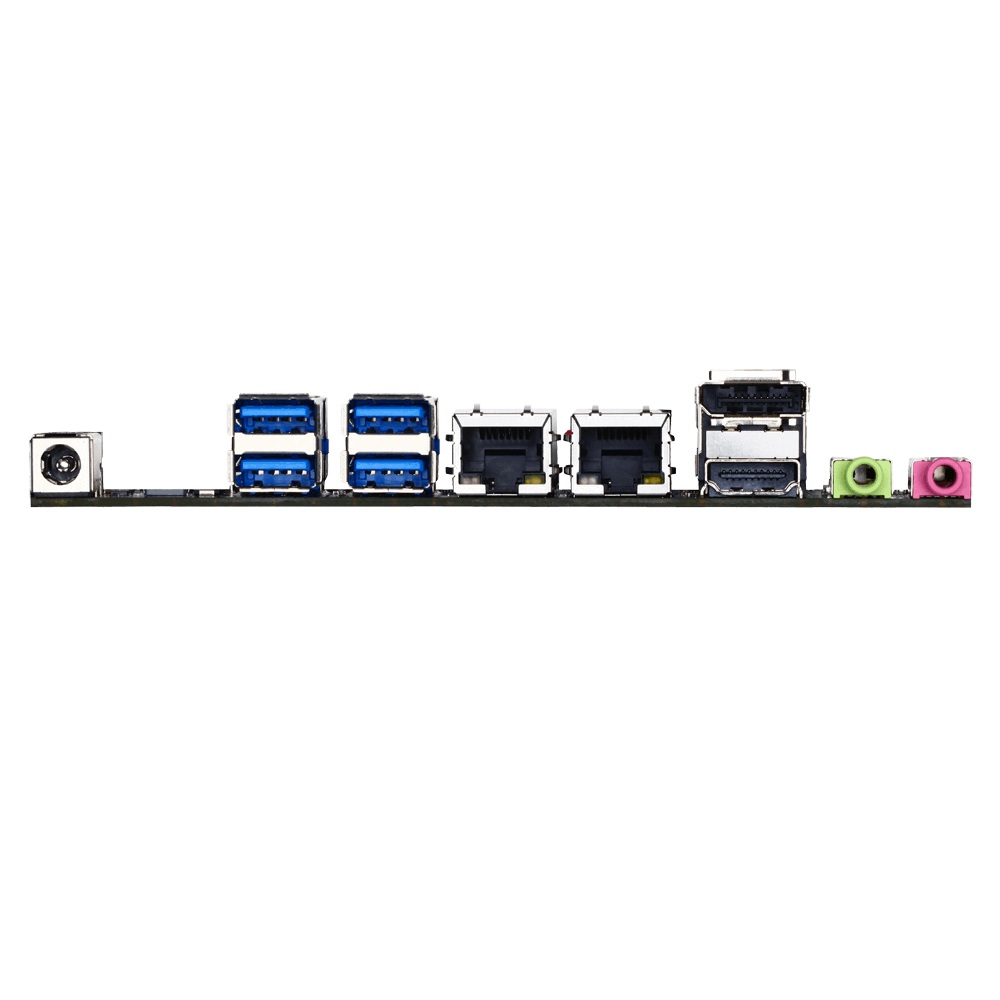

Back Panel I/O
• 4 x USB 3.0 ports • 1 x DP • 1 x HDMI® port • 2 x LAN ports • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 4 x USB 2.0 headers • 4 x Serial COM headers • 1 x VGA header
|
Function
• 1 x 4in/4out GPIO header • 1 x TPM header
System BIOS
• AMI® UEFI 32MBit BIOS
|
Chassis
• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 1.4"(H) x 7"(W) x 7"(D), Weight: 3 lb (Net) 10 lb (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • 140D without front USB ports is 7" depth 140D2 with 2 front USB port is 7.5" depth • Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 1000 Aluminum Form Factor • Option: 236F3 Fanless
|
Power Supply
• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
|
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
