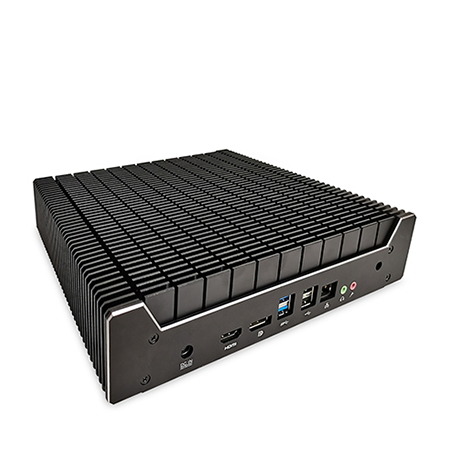

236F3

Fanless Chassis for Socket-S Core i5/i7 Products

Featured Highlights
	Dimensions: 10"(W) x 8.85"(D) x 2.36"(H)
	ITX Fanless Case for Slim ITX Socket-S MB
	M.2 or mSATA SSD Drive Bay
	Built-in DC to DC Converter
	DC12-19V Fanless Power Adapter
	Net weight: 7 lb, packaging weight 10 lb.
	Color: Black (Custom colors available with special order)
	OS support: Windows 10, 8, 7, XP, Embedded, Linux, FreeBSD, Solaris.
	Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone

SKU: 236F3

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
Q470L2G	11th/10th Socket 1200	Q470	2 DDR4SO	Intel UHD	1 Intel\i219V+1 Intel\i211	2-8	2	4 H	4 R+2 F	1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP)	1 MiniPCIe+1 PCIe 16x	GPIO+TPM	5.1 ALC662
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	1	2	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	2-8	1	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	2-8	1	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
H310A1	8/9th Socket 1151	H310	1 DDR4SO	Intel UHD 630	1 Intel\i219V	1	2	4 H	4 R+2 H	1 HDMI+1 VGA/H+1 LVDS/H			5.1 ALC662
H310A	8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD 630	1 Realtek	1-8/6-NVMe	2	2 R+5 H	2 R+2 H	1 HDMI+1 DP+1 LVDS		TPM	7.1 ALC887
H110AEL2/i1000A12	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Intel\i219V+1 Intel\i211AT	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH	MiniPCIe+PCIe 4x	GPIO	7.1 ALC887
Q170A	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	2-8	1	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
i2310	i7-6700HQ	QM170	2 DDR4SO	Nvidia GTX960M	1 Realtek	2	1	2 R	2 R+2 F	1 HDMI+1 DP+1 Type-C		TPM	Azalia Codec
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H		1	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	1-4/6/8	1	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269
Slim-H510B/Q570B	i9-11900T	Intel H510	2 DDR4SO	Intel UHD 750	2 Intel I219LM + 1 M.2 2230 + WiFi/BT		1	2 R + 3 F	2 R + 1 F	2 HDMI + 1 DC + 2 Lan			ALC662
Z590L2	10/11th Socket 1200	Z590	2 DDR4	Intel UHD 750	1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT	2-8+U2-8	4 R	1 R+2 H	4 R+2 H	1 HDMI+1 DP1.4	PCIe 16x		7.1 ALC897
B560E	10/11th Socket 1200	B560	2 DDR4	Intel UHD 750	1 Intel\i219V+11ac WiFi/BT	2-8	4 R	2 R+2 H	2 R+2 H	1 HDMI+1 DP1.4	PCIe 16x	1xPS/2	7.1 ALC897
Z490L2	11th/10th Socket 1200	Z490	2 DDR4	Intel UHD 630	1 Reltek\RTL8125BG+1 Intel\i219V	2-8	4 R	2 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	1xPS/2	7.1 ALC1220
Z490E3	11th/10th Socket 1200	Z490	4 DDR4	Intel UHD	1 Intel\i225-V	2-4/6/8/10	6 R	1 R	4 H	1 HDMI+1 DP	3 PCIe 16x+1 PCIe 4x+1 PCIe 1x		7.1 ALC892
H470L2G	11th/10th Socket 1200	H470	2 DDR4	Integrated	2 Intel+11ac WiFi/BT	2-6/8	4 R	1 H	4 R+1 H	2 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
H470x	11th/10th Socket 1200	H470	4 DDR4	Intel UHD	1 Intel\i219V	2-8	6 R	2 R+2 H	3 R+4 H	1 HDMI+1 DP+1 VGA	2 PCIe 16x+2 PCIe 1x	TPM+1xPS/2	7.1 ALC1200
H410AL2	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	2 Realtek\RT8111H	1		2R	2R+2F	1 HDMI+1DP/VGA		Option: LPT/S	5.1 ALC662
H410A	10th Gen Socket 1200	H410	2 DDR4SO	Intel UHD 630	Realtek\RTL8111F + WiFi	1		4R	2R + 2F	HDMI + DP/VGA			5.1 ALC662
H310G	8/9th Socket 1151	H310	2 DDR4	Intel UHD 630	1 Intel\i219V+11ac WiFi/BT	1	4	2 R+2 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	1xPS/2	7.1 ALC887
H310E2	8/9th Socket 1151	H310	2 DDR4	Intel UHD 630	1 Realtek\RTL8111H	2-8	4	4 R+1 H	2 R+1 H	1 DVI+1 HDMI+1 VGA	PCIe 16x+PCIe 1x	1xPS/2+TPM	7.1 ALC887
H310CAL2	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	2 Realtek\RTL8111H	1		2 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
H310CA	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	1 Realtek\RTL8111H	1		4 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
H310CA6	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Intel UHD	1 Realtek\RTL8111H	1B	2	4 H	4 R	1 HDMI+1 VGA+1 LVDS/H			5.1 ALC662
B360L2	8/9th Socket 1151	B360	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	4	2 R+2 H	4 R+2 H	2 HDMI	PCIe 16x	1xPS/2	7.1 ALC887
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	1-4/6/8	2	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
H370L2G	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	2 Intel+11ac WiFi/BT	2	4 R	2 H	4 R+2 H	1 HDMI2.0+1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
H370L2	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	6 R+2 H	2 HDMI+1 DP	PCIe 16x	1xPS/2+TPM	7.1 ALC892
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	1-4/8	4	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
Q370L2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219LM+1 Intel\i210AT	1-4/8+1-2	5 R	4 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	TPM	7.1 ALC888
Z390L2	8/9th Socket 1151	Z390	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	5 R+2 H	2 HDMI+1 DP	PCIe 16x	TPM+1xPS/2	7.1 ALC892
B250G	Socket 1151 Kaby Lake	B250	2 DDR4	Intel HD 630	1 Intel	1	4	2 R+2 H/F	4 R+2 H	1 HDMI+1 DP	PCIe 16x		7.1 ALC892
Slim-H110A2	6/7th Socket 1151	H110	1 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek\RTL8111F	2-8	1	4 H	4 R	1 HDMI+1 VGA+1 LVDS	1 MiniPCIe+1 MiniPCIe-F		5.1 ALC662
H110L2	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H110L3	6/7th Socket 1151	H110 B150	2 DDR4SO	Intel HD 530 Intel HD 630	3 Realtek	1-4	2	2 R+2 H	4 R	1 DP+1 HDMI+1 eDP/H	PCIe 16x+PCIe 1x	1xPS/2/H+GPIO+LPT	5.1 ALC662
H110A/i1000A11	6th Gen Socket 1151	H110	2 DDR4SO	Intel HD 530	Intel® i219V		1	4H	4R	DP + HDMI+VGA Header	PCIe 3.0 x4 + MiniPCIe		7.1 ALC887
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H110L2C12	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	2 R+2 H	4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
Q170L2	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	1	5 R	4 H	4 R+2 H	1 DP+1 HDMI+1 DVI	MiniPCIe+PCIe 16x	GPIO+TPM	7.1 ALC888
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
i1000Q10	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	2-8	1	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	2-8	1	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
Nano-H510A/Q570A	11th/10th Socket 1200	H510/Q570	2 DDR4	Intel UHD 750	1 Intel\I219LM	2-8		3F	1F	1 HDMI2.0/F+1 DP/F	M.2-2280+M.2-2230	TPM	5.1 ALC662
