 ARM-based Product

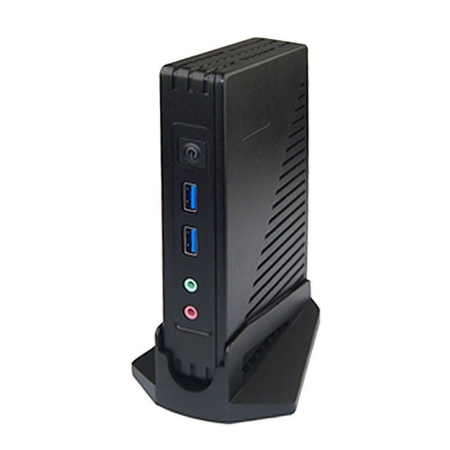

X7Z-LX

ARM® Cortex®-A9 Low Power, 4Core GPU HDMI, LAN+WiFi/BT, 2GB DDR3+6 USB
Featured Highlights
ARM® Cortex®-A9 Processor
RK3188 Chipset
Quad-Core Mali™ 400 GPU, HDMI
2GB DDR3 Memory
100Mb/s LAN, 11n WiFi+BT
6 USB 2.0
5.1 HDMI Audio Sound
Power Supply: DC5V Input
OS Support: Android 4.2
Applications: Set Top Box, Digital Signage, Traffic Controller, etc.

Starts at: $99.00
SKU: X7Z-LX
Product specifications
Processor

• ARM® Cortex®-A9 4Core up to 1.60GHz

Chipset
• RK3188
Graphics

• Quad-Core Mali™ 400 GPU
• Support 1 Graphics port
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2

Memory

• 2GB DDR3 (built-in, non-changeable)

Network
• 1 x RJ45 (10/100 Mb/s) LAN
• 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.0GHz)
• Bluetooth 4.0
Storage

• 8GB eMMC Flash Internal Storage

Audio

• 5.1 HD Audio Subsystem via HDMI 1.4 Interface
• Support for S/PDIF Out

Back Panel I/O

• 6 x USB 2.0 ports
• 1 x HDMI port
• 1 x LAN port
• 1 x S/PDIF port
• 1 x DC-In 2.5mm Power Connector

Chassis

Nano-Z series Plastic Enclosure
• Dimensions: 6.00"(W) x 3.70"(D) x 1.00"(H), Weight: 7 lb.
• Color: Black

Power Supply

• Power: DC5V 3A 15W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support
• Android 4.2
Application
• Set Top Box, Digital Signage, Traffic Controller, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
