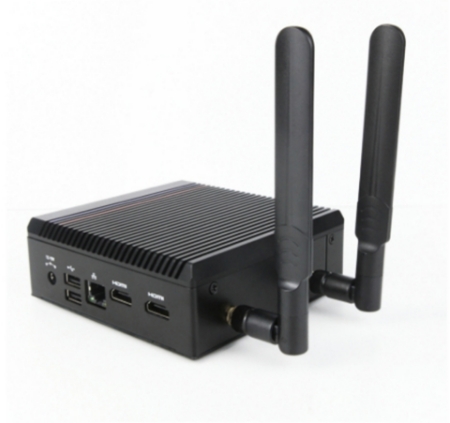

Nano-N100Z / Nano-N300Z Alder Lake-N 4K Mini Digital Signage PC

12th Gen Alder Lake-N UHD Graphics, 2 HDMI, 2.5GbE LAN + Type-C + 4 USB, PCIe 3.0 x4 NVMe SSD

Featured Highlights
	Intel® Alder Lake-N 4-Core N100 / 8-Core i3-N300 Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, 2 HDMI® 2.1
	DDR4 SO-DIMM, for up to 32GB
	M.2 SSD/NVMe
	2.5GbE LAN, M.2 WiFi/BT
	2 USB 3.2 Gen 2, 2 USB 2.0, Type-C USB 3.2 Gen2
	HD Audio
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11 Pro (64-bit)
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: Nano-N100Z

Nano-N100Z

features 12th Gen. Alder Lake-N, UHD Graphics, 2 HDMI Display, LAN with M.2 2230 WiFi & BT + 5 USB, up to 32GB Memory. This is a Alder Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Specifications
Request for Info

Product specifications

Processor • Intel® N100 4Cores 4Threads 3.40GHz 6M 6W • Intel® i3-N300 8Cores 8Threads 3.80GHz 6M 7W • Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 2 x HDMI® 2.1, supporting a maximum resolution of 4K @60Hz Memory • 1 x DDR4 SO-DIMM • 3200Hz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® RTL8125BG-CG 2.5GbE (10/100/1000/2500 Mb/s) LAN • Intel® Wireless-AX101/AX201 Dual-Band WiFi6/BT • 1 x M.2 2230 (Taken by WiFi/BT Module) Expansion Slot • 1 x M.2 2230 (for WiFi/BT or Other Module) • 1 x M.2 2280 (for PCIe 3.0 x4 NVMe SSD)
Storage • 1 x M.2 2280 (for PCIe 3.0 x4 NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x USB 2.0 ports • 1 x LAN ports • 2 x HDMI® 2.1 ports • 1 x DC-In Power Connecter Other I/O • 2 x USB 3.2 Gen2 ports (Front) • 1 x Type-C USB 3.2 Gen2 port (Data Only, Front) • 1 x 3.5mm Analog Stereo Audio jack (Front)
System BIOS • AMI® BIOS Chassis • Dimensions: 4.84"W x 4.72"L x 1.81"H (123x120x46mm) ·Weight: 6 lbs. Gross Weight: 10 lbs. • Silent Cooling Design • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11 Pro (64-bit)
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® N100 4Cores 4Threads 3.40GHz 6M 6W • Intel® i3-N300 8Cores 8Threads 3.80GHz 6M 7W • Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 2 x HDMI® 2.1, supporting a maximum resolution of 4K @60Hz Memory • 1 x DDR4 SO-DIMM • 3200Hz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® RTL8125BG-CG 2.5GbE (10/100/1000/2500 Mb/s) LAN • Intel® Wireless-AX101/AX201 Dual-Band WiFi6/BT • 1 x M.2 2230 (Taken by WiFi/BT Module) Expansion Slot • 1 x M.2 2230 (for WiFi/BT or Other Module) • 1 x M.2 2280 (for PCIe 3.0 x4 NVMe SSD)
Storage • 1 x M.2 2280 (for PCIe 3.0 x4 NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x USB 2.0 ports • 1 x LAN ports • 2 x HDMI® 2.1 ports • 1 x DC-In Power Connecter Other I/O • 2 x USB 3.2 Gen2 ports (Front) • 1 x Type-C USB 3.2 Gen2 port (Data Only, Front) • 1 x 3.5mm Analog Stereo Audio jack (Front)
System BIOS • AMI® BIOS Chassis • Dimensions: 4.84"W x 4.72"L x 1.81"H (123x120x46mm) ·Weight: 6 lbs. Gross Weight: 10 lbs. • Silent Cooling Design • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11 Pro (64-bit)
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
