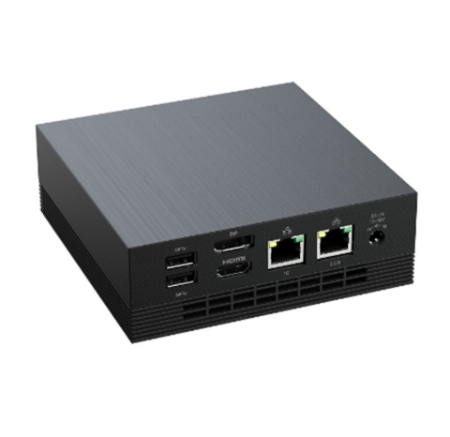

Nano-N100L2V3 Alder Lake-N 4K Mini Digital Signage PC

12th Gen Alder Lake-N UHD Graphics, Triple displays DP+ HDMI, 2 LAN + Type-C + 4 USB, M.2 + SATA

Featured Highlights
	Intel® Alder Lake-N Quad-Core N100 Processor,up to 3.4GHz
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, HDMI®2.1 (4K@60Hz) + DP (4K@60Hz)+USB-C (4K@60Hz)
	4/8/16GB DDR4-3200, Upgradeable to 32GB
	128/256/512GB SSD (PCIe 3.0 x1),Upgradeable to 4TB.
	RJ-45 1G + 2.5G Dual Ethernet, Intel®Dual Band Wi-Fi (2.4GHz/5GHz), BT
	4 x USB 3.2 Gen 1 Type-A, support up to 5Gbps,Type-C
	SN6140 (compatible with CX11880)
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11 Pro (64-bit) pre-installed
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: Nano-N100L2V3C

Nano-N100L2V3

features 12th Gen. Alder Lake-N, UHD Graphics, DP+ HDMI Display, 2 LAN with M.2 2230 WiFi & BT + 5 USB, up to 32GB Memory. This is a Alder Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Specifications
Request for Info

Product specifications

Processor • Intel®Alder Lake-N Quad-Core N100 (Base Frequency 0.8GHz, Max Turbo Frequency 3.4GHz) Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • USB-C (4K@60Hz). Memory • 1 x DDR4 SO-DIMM • 4/8/16GB DDR4-3200, upgradeable to 32GB
Network • Realtek®RTL8125BG-CG for 2.5G Ethernet, Realtek®RTL8111H for 1G Ethernet Storage • 128/256/512GB SSD (PCIe 3.0 x1),upgradeable to 4TB
Audio • SN6140 (compatible with CX11880) • 1 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 2 x USB 3.2 ports • 2 x LAN ports • 1 x DP 1.4 port • 1 x HDMI® 2.1 ports • 1 x DC-In Power Connecter
Other I/O • 2 x USB 3.2 ports (Front) • 1 x Type-C (Front) • 1 x 3.5mm Analog Stereo Audio jack (Front) System BIOS • AMI® BIOS
Chassis • Dimensions: 127x127x43mm (5”x5”x1.69”)·Form weight: 6 lbs., Gross: 10 lb. • Silent Cooling Design. • Supports VESA/wall mount brackets Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 Pro (64-bit) pre-installed Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.
Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
