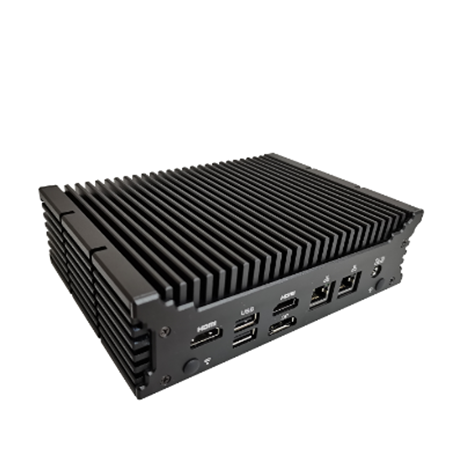

Nano-F16 Series

Fanless Chassis for nano size motherboard

Featured Highlights
	Dimensions: 7.0"(W) x 4.99"(D) x 1.99"(H)
	For Nano-Size MB, Heatsink Top for Fanless
	Supports u, N, J, E, A-series CPU configurations
	DC12-24V 36-60W Power In
	Supports VESA, DIN, wall mount
	Color: Black or Silver as default color, custom colors available with special order

SKU: Nano-F16

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

Nano-U12C	Intel 12th Gen. Core	Alder Lake	2 DDR4SO	Iris® Xe or 12th Gen UHD Graphics	2 LAN	2 R	4R	2 HDMI, 1 eD			HD
Nano-U12L2C	Intel 12th Gen. Core	Alder Lake	2 DDR4SO	Iris® Xe or 12th Gen UHD Graphics	2 LAN	2 F	2 F + 2 R	HDMI + DP			ALC662 (5.1)
U12L2	Intel 12th Gen. Core	Alder Lake	2 DDR5SO	Iris® Xe or 12th Gen UHD Graphics	2 LAN+WiFi/BT+5G/4G	2F + 4R	2F	3 HDMI + 1 DP			Realtek® ALC662
U11L2	i7-1180G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe	2 LAN + WiFi/BT + 4G-LTE	2 R+4 F	2 R	2 DP+2 HDMI2.0	1 MinPCIe	TPM	7.1 ALC897
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
U8A1 / U10A1	i5-10210u/i5-8259u	Comet Lake-u/Coffee Lake-u Platform SOC	2 DDR4SO	UHD 650/Iris Plus 655		2 H	4 R	HDMI+VGA/DP+LVDS/H			7.1 ALC897
Nano-U12P	12th Gen Core i7/i5/i3	Alder Lake-u	2 DDR4SO	Intel Iris Xe/UHD 12th Gen.	LAN (Option 2.5GbE) + WiFi 6/BT 5.0		2 R + 2 F	HDMI 2.1 + DP 1.4 + 2 Thunderbolt 4			HD Audio
Nano-U11C	i7-1185G7	Tiger Lake-u	2 DDR4SO	Iris Xe/UHD	LAN + WiFi/BT + 5G/4G-LTE	2 F	4 R	2HDMI + DP+Thunderbolt4			CJC6811A
Nano-U10C	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H		2 F +2 R	HDMI+DP+Type-C			2.1 ALC269
Nano-U10F	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	2 F	2 F + 2 R	1 HDMI+1 DP			2.1 ALC269
Nano-U10L6	Intel 10th Gen. Core	Comet Lake-u (SOC)	1 DDR4SO	UHD	6 LAN + Mini PCIe + SIM	1 H	4 F		Mini PCIe + M.2-2280
Nano-U10A	i7-10710u	Comet Lake-u/Whiskey Lake-u Platform (SOC)	2 DDR4SO	UHD 620 / Iris Graphics	1 Intel® i219LM+SIM	1	4	1 HDMI + Optional HDMI		TPM	5.1 ALC662
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
Nano-U10L2	i7-10710U	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF		GPIO	5.1 ALC662
Nano-U8FL2C6	i7-8565U	Whiskey Lake-u	2 DDR4SO	Intel UHD 620/610	2 x Intel® i211A+i219LM	4H	4(USB3.1)R	1 HDMI+1DP+1LVDS/eDP	optional; x8	GPIO, TPM, SPI	5.1 ALC662
Nano-U8L2	i5-8259u	Coffee Lake-u Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP		GPIO	5.1 ALC662
Nano-8000FL2C	i7-8550u	Skylake-uKaby Lake-u/-r	1 DDR4SO	Intel UHD 620 Intel HD 610	1 Realtek+option:1 Realtek	option 2 R+2 H	2 F + 2 R	1 HDMI+1 VGA\DP		GPIO	5.1 HDMI
Nano-8000A	i5-8250u	Skylake-u Kaby Lake-u/-r	1 DDR4SO	Intel UHD 620	1 Realtek + WiFi+BT	2 R	2 F	1 HDMI+1 Type-C/F			5.1 HDMI
Nano-8000C2	i5-8250u	Kaby Lake-r Kaby Lake-u	0 DDR4OB	Intel UHD 620 Intel HD 620	1 Realtek	2 R	2 R+2 F	1 HDMI			5.1 HDMI
