C3338L4

Deverton C3000, 4LAN+IPMI, 8 SATA+COM, PCIe x4 slot

Featured Highlights
	Intel® Atom® C3338 Processor
	Intel® Denverton Platform (SOC)
	Aspeed® AST2400 Graphics, VGA
	2 DDR4 DIMM for up to 128GB Memory
	PCIe x4
	4 Gigabit LAN + IPMI LAN
	USB 3.0, 2 USB 2.0
	8 SATA-6Gb/s, 2 M.2 SSD/NVMe
	Power Supply: DC 12V 5A/ATX input
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Network Appliance, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

Starts at: $499.00

SKU: C3338L4

Specifications
Request for Info

Product specifications

Processor • Intel® Atom® C3338 1.50/2.20GHz 2Core 2Threads 4M 9W Chipset • Intel® Denverton Platform (SOC)
Graphics • Aspeed® AST2400 Graphics • Support 1 Graphics port • 1 x VGA port Memory • 2 x DDR4 DIMM • 2666/2400/2133MHz unbuffered ECC (Single Channel I/O) • Supports up to 128GB
Network • 4 x Intel® Gigabit (10/100/1000 Mb/s) LAN • 1 x IPMI LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x4 slot • 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 8 x SATA 6Gb/s • 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Optional via USB Audio module
Back Panel I/O • 2 x USB 2.0 ports • 4 x LAN ports • 1 x IPMI port • 1 x VGA port • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x USB 3.0 header • 1 x Serial COM header

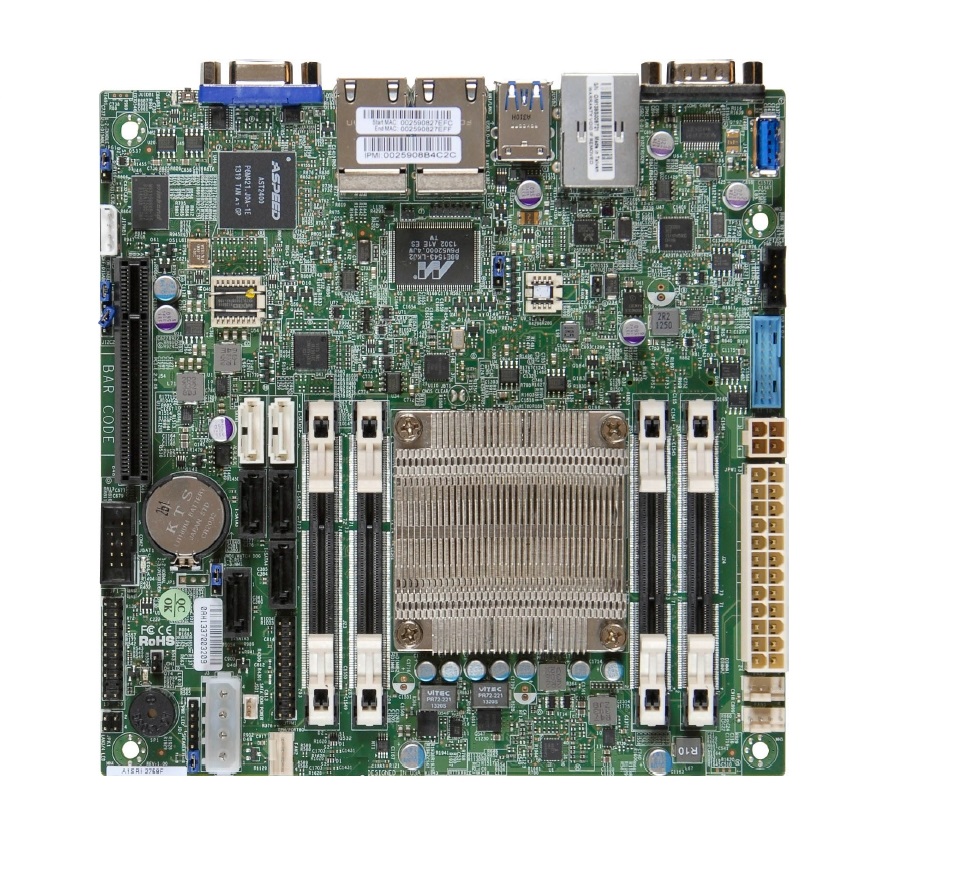

Function • 1 x TPM header Systemboard • Small Form Factor • Back I/O

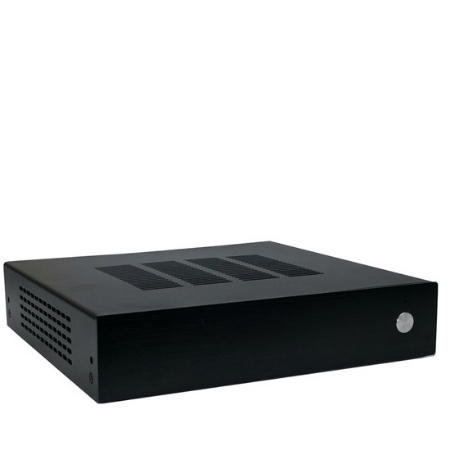

Chassis • 175C Chassis (1.75" (1U height) x 8.1"W x 8"D) • 300B Series Aluminum Mini Chassis • Dimensions: 300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb (Net) and 6 lb (Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER slot 400S Swap Bay 2x2.5" • Option: 500B 3.5" H w/LP slot 500A DVD Bay +LP slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Option: 1750C with slot Power Supply • Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, IoT, Linux Application • Set Top Box, Network Appliance, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
