Processor
• Intel® 9th/8th Generation Coffee Lake Processor • LGA1151 socket series with 35W, 65W to 95W TDP • Intel® Core i9-9900K, 9900, 9900T 8C/16T series 16M Cache • Intel® Core i7-9700, 9700T, 8700, 8700T series 6C/12T 12M Cache • Intel® Core i5-9600, 9500, 9400T, 8400, 8400T series 6C/6T 9M Cache • Intel® Core i3-9300, 9100, 9100T, 8100, 8100T series 4C/4T 6M Cache • Intel® Pentium Gold G5600 series 2C/4T 4M and Celeron G4900 series 2C/2T 2M
Chipset
• Intel® Z390 Express Chipset • Supports Intel® Optane™ Memory
|
Graphics
• Intel® UHD 630 Graphics • Support 3 Graphics ports • 2 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics port
Memory
• 2 x DDR4 DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 128GB (however 32GB is most practical)
|
Network
• 1 x Intel® I219V Gigabit (10/100/1000 Mb/s) LAN • 1 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN • 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0 • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x16 slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 6 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10 • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Audio
• Realtek® ALC892 8-channel (7.1) • 3 x 3.5mm Analog Stereo Audio jacks
|

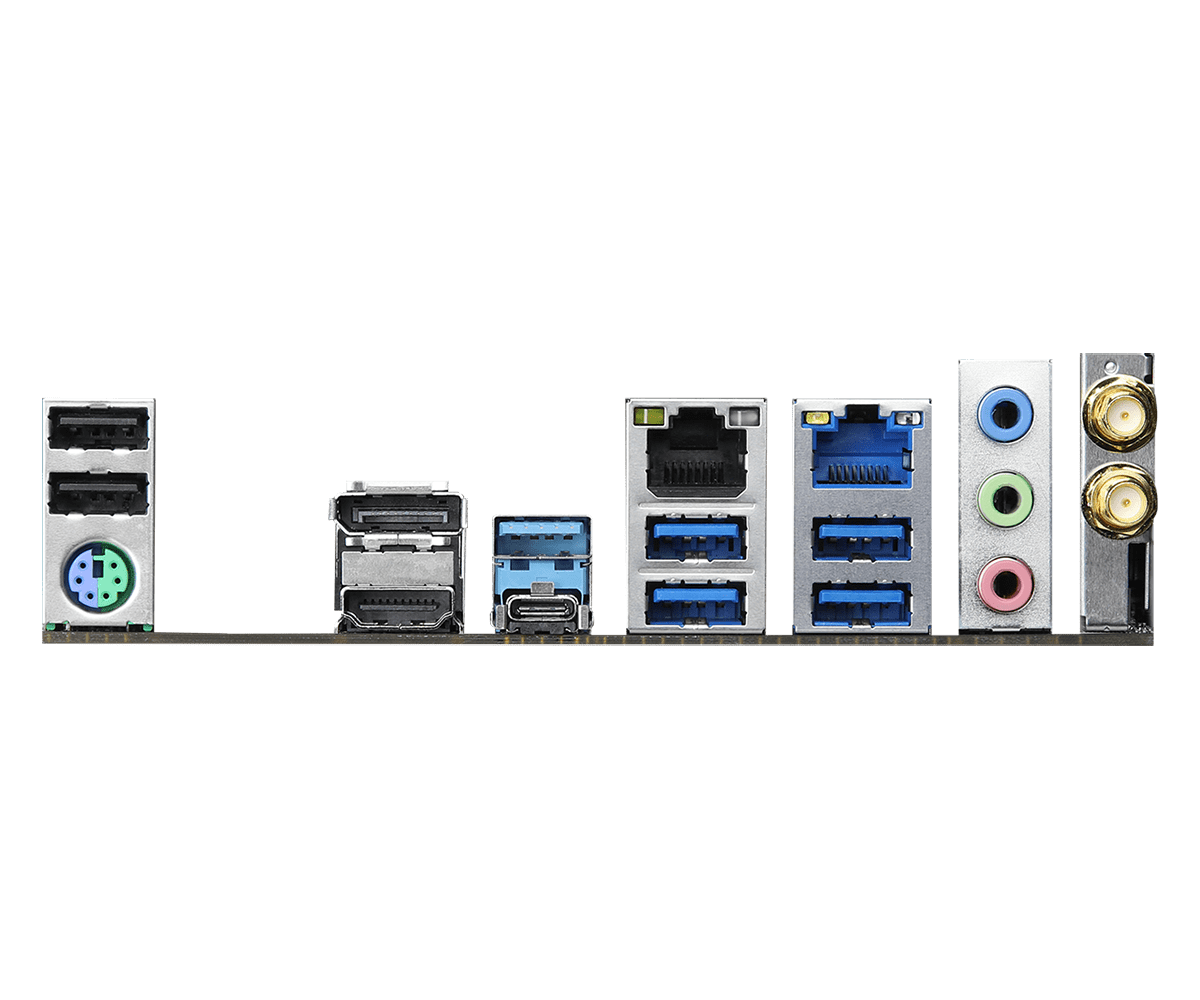

Back Panel I/O
• 5 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 2 x HDMI® ports • 1 x DP • 2 x LAN ports • 3 x 3.5mm Audio jacks • 1 x PS/2 port
Internal I/O
• 2 x USB 3.0 headers • 2 x USB 2.0 headers
|
Function
• 1 x TPM header
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
|
Chassis
• 400B Small Form Factor Aluminum Chassis • Dimensions: 2.6"(H)x8.1"(W)x8.1"(D) inch Weight: 1.6 lb. Net 10 lb (with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 175C Case 1.75" H 175F Fanless 1.75" H • Option: 1750C with slot • Option: 1750F Fanless with slot • Option: 1U-1000U Low Cost Mini Server with PCIe 16x Slot • Option: 1U-1000S Low Cost Mini Server with PCIe 16x slot • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Option: 236F3 Fanless
|
Power Supply
• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11/10, IoT, Linux
|
Application
• Set Top Box, Network Appliance, Digital Signage, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
