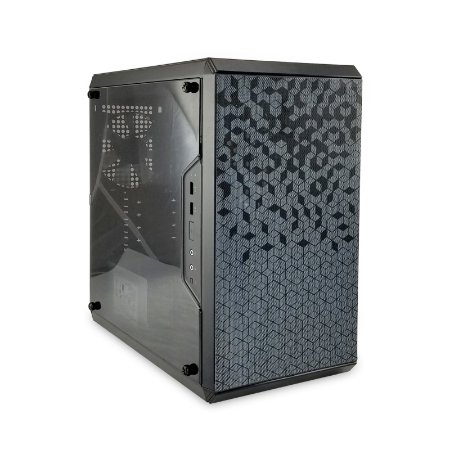

Picture of Z370x

Picture of Z370x

TM001-Q300L Inside View

Z370x

8th Generation Core i7/i5, 2 x16 Slots for SLI/CrossFireX
4DDR4 upto 64G RAM, 2M.2 NVMe Fast SSD

Featured Highlights
•	Dimension:
	14.13" (359 mm) D x 15.91" (404 mm) H x 9.84" (250 mm) W
•	Intel® 8th Generation Coffee Lake Processor LGA1151
•	Intel® Z370
•	Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots
•	Supports Intel® UHD Graphics Built-in Visuals
•	7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
•	2 x PCI Express 3.0 x16 Slots
•	6 x SATA 3 6.0 Gb/s Connectors
•	Mini Size chassis with 6 5.25"/3.5" Drive Bays
•	Color: Black (Custom color is available for Special order)
•	OS Support: Microsoft® Windows® 10 64-bit
•	High Performance PC for Gaming, Home PC, Samll Office, Business Computing.

Starts at: $899.00

SKU: Z370x

Specifications
Request for Info

Product specifications

Processor • Intel® 8th Generation Coffee Lake processor LGA1151 socket series with 65W to 95W TDP • Intel® Core i7 processor 8700 series 12M Cache • Intel® Core i5 processor 8600,8400 series 9M Cache • Intel® Core i3 processor 8300, 8100 series 6M Cache Chipset • Intel® Z370
Graphics • Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru 3D, Intel® Clear Video HD Technology, Intel® Insider, Intel® UHD Graphics • DirectX 12 • HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1 • Max. shared memory 1024MB • Three graphics output options: D-Sub, DVI-D and HDMI® • Supports Triple Monitor • Supports HDMI® with max. resolution up to 4K x 2K (4096x2160) @ 30Hz • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI® Port (Compliant HDMI® monitor is required) • Supports HDCP with DVI-D and HDMI® Ports • Supports 4K Ultra HD (UHD) playback with DVI-D and HDMI® Ports • Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. • The size of maximum shared memory may vary from different operating systems. Memory* • Dual Channel DDR4 Memory Technology • 4 x DDR4 DIMM Slots • Supports DDR4 4300+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory • Supports ECC UDIMM memory modules (operate in non-ECC mode) • Max. capacity of system memory: 64GB** • Supports Intel® Extreme Memory Profile (XMP) 2.0 • 15 Gold Contact in DIMM Slots
Expansion Slot • 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)* • 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) • Supports AMD Quad CrossFireX and CrossFireX • Supports NVMe SSD as boot disks Storage* • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug* • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) • 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) • If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. • *Supports Intel® Optane Technology Supports NVMe SSD as boot disks
LAN • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Supports Wake-On-LAN • Supports Lightning/ESD Protection • Supports Energy Efficient Ethernet 802.3az • Supports PXE Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* • Premium Blu-ray Audio support • Supports Surge Protection • ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Back Panel I/O • 1 x PS/2 Mouse Port • 1 x PS/2 Keyboard Port • 1 x D-Sub Port • 1 x DVI-D Port • 1 x HDMI® Port • 1 x USB 2.0 Port (Supports ESD Protection) • 4 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection) • 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) • HD Audio Jacks: Line in / Front Speaker / Microphone I/O Controller • 1 x Print Port Header • 1 x COM Port Header • 1 x TPM Header • 1 x Chassis Intrusion and Speaker Header • 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)* • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** • 1 x 24 pin ATX Power Connector • 1 x 8 pin 12V Power Connector • 1 x Front Panel Audio Connector • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) • 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) • 1 x Performance Mode / Easy OC Header • The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. • *CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
System BIOS • 128Mb AMI UEFI Legal BIOS with multilingual GUI support • ACPI 6.0 Compliant wake up events • SMBIOS 2.7 Support • CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment Monitoring • CPU/Chassis temperature sensing • CPU/Chassis Fan Tachometer • CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) • CPU/Chassis Fan multi-speed control • CASE OPEN detection • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V
Motherboard • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm • Solid Capacitor design Systemboard • Micro ATX Form Factor(9.6" x 9.6") • Back/IO
OS Support • Windows 10 • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux Application • Digital Signage, Surveillance Monitoring, Video wall, Concert, POS, Media Player, IPTV, Medical Equipment, etc.
Chassis • TM001-Q300L MicroATX Power • Drive Bay: 1 x 3.5", 2 x 2.5" internal Bay • Slot: 4 • Power Supply: PS/2 Size 400-1500W • Cooling: 1 x 120mm Rear Quiet Fan • Option: 2 x 120/140mm Front Fans, 2 x 120mm Top • Radiator Support: 120, 240mm front, 120mm Rear • Dust Filter: Front, Top, Bottom • Dimension: 381 x 230 x 387mm or (15" x 9 x 15.2) H x W x D • System Weight: 28 lb. Environment • Operating Temperature: 0 to +55 CÂ° • Non operating temperature: -20 to +70 CÂ° • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating 3,920 m/s2 (400G) 2ms • Shock - Non-Operating 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • RoHS
