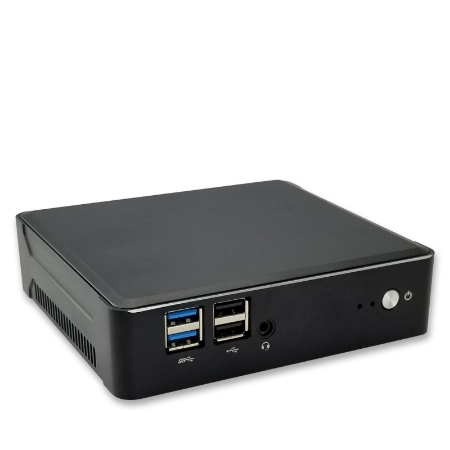

Nuc-U10c - Compact Mini UHD Digital Signage Player

10th Gen. Comet Lake-u, 10th Gen UHD 4K Graphics Dual Displays, SATA+M.2 NVMe SSD with 3 USB + Type-C, Digital Signage Player PC

Featured Highlights
	Intel® Core™ i7/i5/i3/ u Processor
	Intel® Comet Lake-u Platform (SOC)
	Intel® UHD Graphics,4K/5K Resolution, HDMI+miniDP (Optional Type-C Thunderbolt)
	2 DDR4 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2 NGFF WiFi & BT
	1 USB 3.0, 2 USB 2.0, 2 Type-C
	Realtek® ALC662 Audio Codec
	DC12V 2A Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10, Linux
	Applications: UHD Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, etc.

SKU: Nuc-U10c

Nuc-U10c

Features 10th Gen Intel® Core™ i7/i5/i3/-u processors (all formerly known as Comet Lake). This is a perfect compact PC for Digital Signage Player PC, POS/Kiosk, AI Edge, IoT, Set Top Box and Mini PC etc. This PC tiny sized computer has impressive graphics with Intel® UHD Graphics,4K/5K Resolution, HDMI+DP, and up to 64GB of dual-channel DDR4 memory.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 10/15/25W Chipset • Intel® Comet Lake-u Platform (SOC)
Graphics • Intel® UHD Graphics, 4K/5K Resolution • Support Multi Displays • 1 x HDMI® 2.0, 4K 30Hz Graphics port • 1 x MiniDP 4K 60Hz Graphics port • 1 x Type-C Thunderbolt Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Intel® i225 Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x SATA HDD
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Realtek® ALC662 Audio Codec • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x USB 3.0 ports • 1 x Thunderbolt Type-C (optional miniDP port) • 1 x HDMI® port • 1 x LAN port • 1 x DC-In Power Connector Other I/O • 1 x USB 3.0 ports (Front) • 1 x Type-C port (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Nuc Chasiss Size, Dimension: 4.39"(W) x 4.39"(D) x 2.16"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Application • Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
