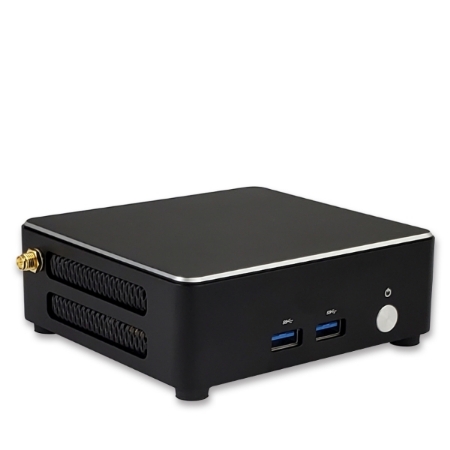

NUC-U12V4c - Compact Mini Intel® Iris® Xe Graphics Digital Signage Player

NUC size Core i5/i7, 4-Display 2 HDMI+2 Type-C to (HDMI/DP), SATA+M.2 NVMe SSD with 2 USB + 2 Type-C, Digital Signage Player PC

Featured Highlights
	Intel® Core™ i7/i5/i3/-u/-p Processor
	Intel® Alder/Raptor Lake-u/-p Platform (SOC)
	Intel® Iris® Xe Graphics, 4K/8K Resolution, 2 HDMI+ 2 Type-C (Support DP 8K @60Hz)
	2 DDR5 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2 E-key WiFi & BT
	2 USB 3.2, 2 Type-C
	HD Audio
	DC12-19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, Linux
	Applications: UHD Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, etc.

SKU: Nuc-U12V2C2

NUV-U12V4c

Features 12th Gen Intel® Core™ i7/i5/i3/-u/-p processors (all formerly known as Alder Lake). This is a perfect compact PC for Digital Signage Player PC, POS/Kiosk, AI Edge, IoT, Set Top Box and Mini PC etc. This PC tiny sized computer has impressive graphics with Intel® Iris® Xe Graphics,4K/8K Resolution, 2 HDMI+2 Type-C, and up to 64GB of dual-channel DDR5 memory.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W Option: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U • Intel® Core™ i3-1315U, i3-1305U, i3-1315U Chipset • Intel® Alder Lake-u/-p Platform (SOC) • Intel® Raptor Lake-u/-p Platform (SOC)
Graphics • Intel® Iris® Xe Graphics, 4K/8K Resolution • Support Multi Displays • 2 x HDMI® 2.0, 4K 30Hz Graphics port • 2 x Type-C (support DP 8K 60Hz) Memory • 2 x DDR5 SO-DIMM unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x SATA HDD
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x Type-C (support DP) • 2 x HDMI® port • 1 x LAN port • 1 x DC-In Power Connector Other I/O • 2 x USB 3.2 ports (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Nuc Chasiss Size, Dimension: 4.39"(W) x 4.39"(D) x 2.16"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12-19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Application • Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W Option: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U • Intel® Core™ i3-1315U, i3-1305U, i3-1315U Chipset • Intel® Alder Lake-u/-p Platform (SOC) • Intel® Raptor Lake-u/-p Platform (SOC)
Graphics • Intel® Iris® Xe Graphics, 4K/8K Resolution • Support Multi Displays • 2 x HDMI® 2.0, 4K 30Hz Graphics port • 2 x Type-C (support DP 8K 60Hz) Memory • 2 x DDR5 SO-DIMM unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x SATA HDD
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x Type-C (support DP) • 2 x HDMI® port • 1 x LAN port • 1 x DC-In Power Connector Other I/O • 2 x USB 3.2 ports (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Nuc Chasiss Size, Dimension: 4.39"(W) x 4.39"(D) x 2.16"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12-19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Application • Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
