Processor
• Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Option: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U
• Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U
• Intel® Core™ i3-1315U, i3-1305U, i3-1315U
Chipset
• Intel® Alder Lake Platform (SOC)
|
Graphics
• Intel® Iris® Xe/12th Gen. UHD Graphics, 8K Resolution • Support 3 Displays • 2 x HDMI® 2.1, 4K 60Hz Graphics port • 1 x DP 1.4/HDMI® 2.1 Type-C, 8K 60Hz Graphics port
Memory
• 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 1 x Intel® i226 2.5Gigabit (10/100/1000/2500Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Option: Onboard 802.11ax WiFi 6/Bluetooth 5.0 Module • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 1 x M.2 2280 KEY-M With PCIe 4.0 x4 for NVME SSD or SATA SSD
Audio
• USB HD Audio Sound • 1 x 3.5mm Audio Combo jack
|

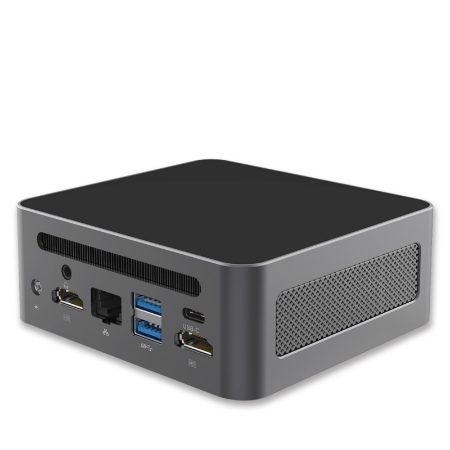

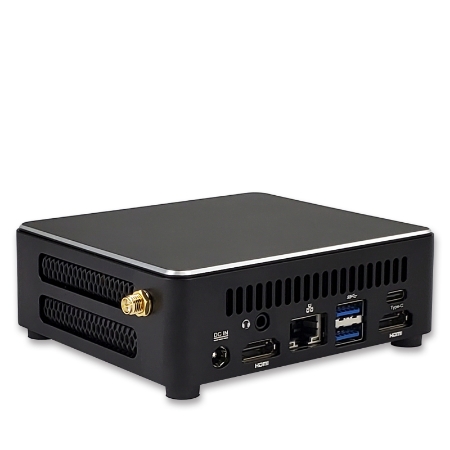

Back Panel I/O
• 2 x USB 3.1 Type-A • 1 x Type-C 3.2 (Supports Graphics) port • 2 x HDMI® 2.1 • 1 x RJ45 LAN port • 1 x DC-In 2.5mm Power Connector
Other I/O
• 2 x USB 3.1 Type-A (Front) • 1 x USB Header for 2 USB 2.0 Ports • 1 x 3.5mm Audio Combo jack (Front) • 1 x Power Button
|
System BIOS
• AMI® UEFI BIOS • Watchdog supported
Chassis
• NUC size chassis with Copper Heatpipe Cooling • Dimensions: 4.5"(W) x 4.17"(D) x 1.67"(H) • Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
|
Power Supply
• Power: DC19V Power Adapter 2.5/5.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version)
|
Application
• Digital Signage Player, Edge AI, Deep Learning, Entertainment PC, Set Top Box, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
