Processor
• Intel® Core™ i7-1185G7 3.00/4.80GHz 4Core 8Threads 12M 12/28W, supports vPro® • Intel® Core™ i7-1165G7 2.80/4.70GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i5-1145G7 2.60/4.40GHz 4Core 8Threads 8M 12/28W, supports vPro® • Intel® Core™ i5-1135G7 2.40/4.20GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1125G4 2.00/3.70GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1115G4 3.00/4.10GHz 2Core 4Threads 6M 12/28W • Intel® Pentium® Gold 7505 2.00/3.5GHz 2Core 4Threads 4M 15W • Intel® Celeron® 6305 1.80GHz 2Core 2Threads 4M 15W
Chipset
• Intel® Tiger Lake-u Platform (SOC)
|
Graphics
• Intel® Iris® Xe/11th Gen. UHD Graphics, 4K/5K Resolution • Support 4 Displays • 2 x HDMI® 2.0 4K 60Hz Graphics ports • 1 x Mini-DP 4K 60Hz Graphics port • 1 x Thunderbolt 4.0 Type-C port (supports Type-C to HDMI® 2.1/DP 1.4 8K Graphics)
Memory
• 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 1 x Realtek® RT8111H Gigabit (10/100/1000) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 5G/4G-LTE Module Pair with SIM Card) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by replacing 2 x USB 3.1 ports
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 5G/4G-LTE Module Pair with SIM Card) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 4x NVMe)
|
Storage
• 1 x SATA 6GB/s • 1 x M.2 2280 (for SATA-6GB/s or PCIe 4x NVMe)
Audio
• USB HD Audio Sound • 2 x Audio Out/Mic In jacks
|
Back Panel I/O
• 4 x USB 3.1 ports (Option: 2 x USB 3.1 + 2 x LAN) • 2 x HDMI® 2.0 ports • 1 x Mini-DP • 1 x LAN port (Option: 2 x LAN + 2 x USB 3.1) • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 2 x RS232 Serial COM headers (1 for front DB9 port) • 1 x SIM slot
|

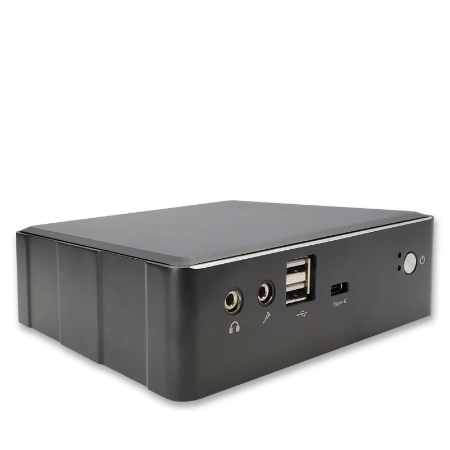

Other I/O
• 1 x Thunderbolt 4.0 port (USB-4 40Gb/s, 8K video, charger out 15W) (Front) • 2 x USB 2.0 ports (Front) • 2 x 3.5mm Audio/Mic jacks (Front) • 1 x DB9 RS-232 Serial COM (Front)
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported
|
Chassis
• Standard SKU: Nano-12 Chassis 5.44”(W) x 4.97”(D) x 1.73”(H) Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Nano-11L Chassis: 8.27”(W) x 4.92”(D) x 1.48”(H) • Optional SKU: Nano-F5 Hybrid Enclosure 5.43”(W) x 4.96”(D) x 1.65”(H) (Hybrid Cooling) • Nano-F10 Fanless Enclosure: Dimensions: 7.87”(W) x 4.92”(D) x 2.24”(H) (Depth dimension changeable), • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 10/11, IoT, Linux
Application
• Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, etc..
|
Environment
• Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
