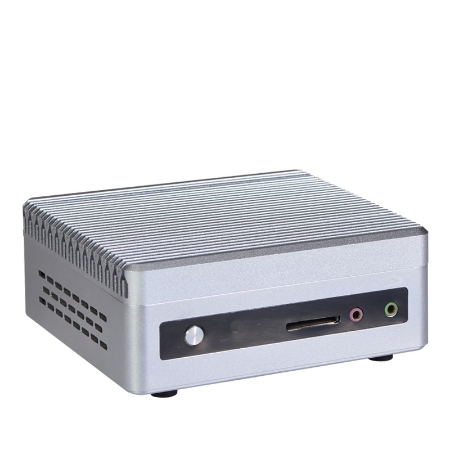

Nano-GX415

AMD APU GX-415, HDMI, DP, SATA, mSATA, 2 MiniPCIe

Featured Highlights
	AMD APU GX-415 Processor
	AMD® Kabini SoC
	AMD® Radeon HD 8330 Graphics, HDMI+DP
	DDR3L SO-DIMM for up to 16GB Memory
	2 MiniPCIe
	Realtek® Gigabit LAN
	2 USB 2.0
	SATA-6Gb/s, mSATA
	5.1 ALC662 Audio Sound
	Power Supply: DC12V input
	OS Support: Windows 7, Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, Traffic Controller, etc.

Starts at: $179.00

SKU: Nano-GX415

Specifications
Request for Info

Product specifications

Processor • AMD® APU GX-415 1.50GHz 4Core 15W Chipset • AMD® Kabini SoC
Graphics • AMD® Radeon HD 8330 Graphics • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics Port Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC • Supports up to 16GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN Expansion Slot • 2 x MiniPCIe full size Slot
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card Audio • Realtek® ALC662 6-channel (5.1) • Support for S/PDIF Out
Back Panel I/O • 2 x USB 2.0 Ports • 1 x HDMI® port • 1 x DP port • 1 x LAN port • 1 x S/PDIF port • 1 x DC-In 2.5mm Jack port • Optional RS-232 via USB to Serial module System BIOS • AMI® UEFI BIOS
Chassis • Nano-F5 Chassis • 15mm 2.5" HD Bay • Dimensions: 5.43"(W) x 4.96"(D) x 1.65"(H) (Height dimension changeable), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Option: Nano-1 5.49"(W) x 4.96"(D) x 1.54"(H), Nano-2 5.49"(W) x 4.96"(D) x 1.54"(H) Power Supply • Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 7, Windows 10, IoT, Linux Application • Set Top Box, Digital Signage, Traffic Controller, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
