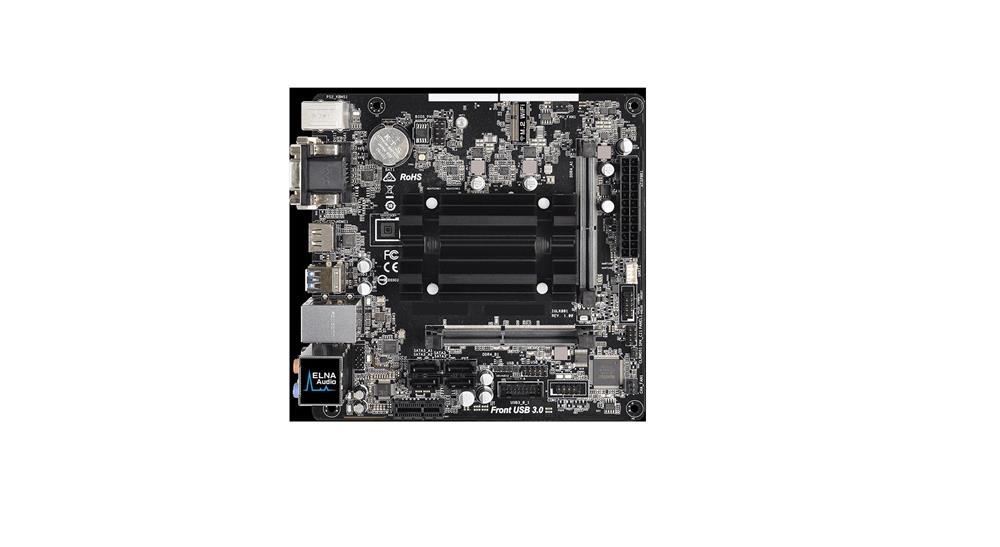

Picture of J5005E/J4105E

Picture of J5005E/J4105E

Picture of J5005E/J4105E

Picture of J5005E/J4105E

Picture of J5005E/J4105E

J5005E/J4105E

Intel® Pentium® J5005, UHD 605 Graphics HDMI+DVI+VGA, 4 SATA+9 USB, M.2 WiFi+PCIe 3.0 x1

Featured Highlights
	Intel® Celeron®/Pentium® Processor
	Intel® Gemini Lake Platform (SOC)
	Intel® UHD 605 Graphics, HDMI+DVI+VGA
	2 DDR4 SO-DIMM for up to 8GB Memory
	PCI Express 3.0 x1 slot
	Realtek® Gigabit LAN, M.2 WiFi
	4 USB 3.0, 5 USB 2.0
	4 SATA-6Gb/s
	7.1 ALC892 Audio Sound
	Power Supply: ATX Input
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, Surveillance, AV Player, etc.

Starts at: $229.00

SKU: J5005E/J4105E

Specifications
Request for Info

Product specifications

Processor • Intel® Pentium® J5005 1.50/2.80GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Intel® UHD 605 Graphics • Support 3 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI port • 1 x VGA port Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x1 slot • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 4 x SATA 6Gb/s Audio • Realtek® ALC892 8-channel (7.1) • Support for S/PDIF Out • 5 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x DVI port • 1 x VGA port • 1 x LAN port • 1 x S/PDIF port • 5 x 3.5mm Audio jacks • 2 x PS/2 ports for Keyboard and Mouse Internal I/O • 2 x USB 3.0 headers • 3 x USB 2.0 headers
System BIOS • AMI® UEFI BIOS Systemboard • Small Form Factor • Back I/O
Chassis • 300B Series Aluminum Mini Chassis • Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Optional: 1750C Aluminum Form Factor Power Supply • Power: DC12V 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, IoT, Linux Application • Set Top Box, Digital Signage, Surveillance, AV Player, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Pentium® J5005 1.50/2.80GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Intel® UHD 605 Graphics • Support 3 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI port • 1 x VGA port Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x1 slot • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 4 x SATA 6Gb/s Audio • Realtek® ALC892 8-channel (7.1) • Support for S/PDIF Out • 5 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x DVI port • 1 x VGA port • 1 x LAN port • 1 x S/PDIF port • 5 x 3.5mm Audio jacks • 2 x PS/2 ports for Keyboard and Mouse Internal I/O • 2 x USB 3.0 headers • 3 x USB 2.0 headers
System BIOS • AMI® UEFI BIOS Systemboard • Small Form Factor • Back I/O
Chassis • 300B Series Aluminum Mini Chassis • Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Optional: 1750C Aluminum Form Factor Power Supply • Power: DC12V 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, IoT, Linux Application • Set Top Box, Digital Signage, Surveillance, AV Player, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
