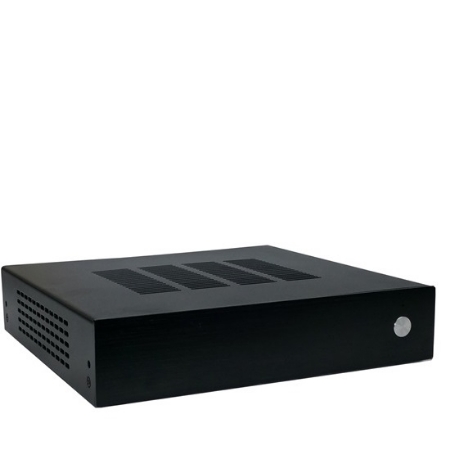

Picture of J4005P

Picture of J4005P

Picture of J4005P

Picture of J4005P

Picture of J4005P

J4005P

Intel Celeron J4005, HDMI 2.0, VGA, 2 COM, 2 SATA, PCI

Featured Highlights
	Intel® Celeron™ J4005 Processor
	Intel® Gemini Lake Platform (SOC)
	Integrated Graphics Processor, HDMI 2.0+VGA
	2 x DDR4 SO-DIMM for up to 16GB Memory
	2 x SATA-6Gb/s, M.2 SSD/NVMe
	PCI
	Gigabit LAN + M.2-WiFi
	4 USB 3.0, 4 USB 2.0
	7.1 ALC887 Audio Sound
	DC12V 36W or higher wattage Power Adapte(UL/CE/FCC Certified)
	Optional 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, etc.

Starts at: $209.00

SKU: J4005P

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J4005 2.00/2.70GHz 2Core 2Threads 4M 10W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Integrated Graphics Processor • Support 2 Graphics ports • 1 x HDMI® 2.0 4K 60Hz Graphics Port • 1 x VGA Port Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x Optional PCI Slot by PCIe to PCI converter • 1 x M.2 2230 socket (for WiFi+BT or Other Module) • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage • 2 x SATA 6Gb/s • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe) Audio • Realtek® ALC887 8-channel (7.1) • 3 x 3.5mm analog stereo audio jack
Back Panel I/O • 4 x USB 3.0 Ports • 1 x Serial COM port • 1 x HDMI® 2.0 port • 1 x VGA port • 1 x LAN port • 3 x 3.5mm jack Internal I/O • 4 x USB 2.0 Headers • 1 x Serial COM Header
Function • 1 x TPM Header System BIOS • AMI® UEFI 128MBit / Legacy BIOS
Systemboard • Small Form Factor • Back I/O Chassis • 300B Series Aluminum Mini Chassis • Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Option: 175C Case 1.75" H 175F Fanless 1.75" H • Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control • Option: 1750C with slot • Option: 1750F Fanless with slot • Option: 1U-Custom 1.75"(H)x17"(W)x16.9"(D)
Power Supply • Power: DC12V 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
