 Think Big. Go Small. Eco-Smart Computing

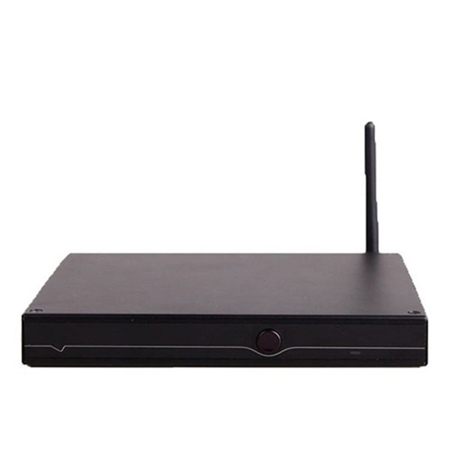

i63B / i65B - Deep Learning OpenVino Mini PC

8th/10th Gen. Core™-u i7/i5/i3, Triple Display 2 HDMI+DP, 5 USB 3.0+COM, 2 M.2+MiniPCIe+SIM
Featured Highlights
10th/8th Gen. Intel® Core™ i7/i5/i3  u-series Processor
Intel® Comet Lake/Whiskey Lake-u/Coffee Lake-u Platform (SOC)
Intel® UHD 620/Iris® 655 4K Graphics, HDMI 2.0+HDMI+DP
2 DDR4 SO-DIMM for up to 64GB Memory
MiniPCIe with SIM for 4G-LTE
Realtek® Gigabit LAN, M.2 WiFi
5 USB 3.0, COM
M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Input
OS Support: Windows 10/11, IoT, Linux
Applications: Set Top Box, Digital Signage Player, POS/Kiosk, IPTV, Deep Learning OpenVino, Robot, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.


SKU: i63B
Product specifications
Processor

• 8th/10th Generation Intel® Core™ u-series FCBGA1528 Processor
• Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15W
• Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M w/Iris Plus Graphics 655
Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro®
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W

Chipset

• Intel® Comet Lake/Whiskey Lake Platform (SOC)
• Option: Intel® Coffee Lake Platform (SOC)

Graphics

• Intel® 10th Gen. UHD/UHD 620 Graphics (based on CPU), 4K/5K Resolution, HDR 10Bit color
• Option: Intel® Iris® Plus 655 Graphics
• Support 3 Graphics ports
• 1 x HDMI® 1.4, supporting a maximum resolution of 3840x2160 30Hz for HDCP 2.2
• 1 x HDMI® 2.0 4K 60Hz Graphics port
• 1 x DP 4K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by Wi-Fi+BT Module)
• 1 x MiniPCIe full size slot (for 3G/4G-LTE Module w/ SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x MiniPCIe full size slot (for 3G/4G-LTE Module w/ SIM pair)
• 1 x M.2 2230 (for Wi-Fi+BT Module or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x HDMI® 1.4 port
• 1 x HDMI® 2.0 port
• 1 x DP
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 5 x USB 3.0 ports (Side)
• 1 x RS232 Serial COM port (Side)
• 2 x 3.5mm Audio jacks (Side)

System BIOS
• Watchdog supported
Chassis

Booksize i 1" Slim with Heatpipe copper blower. 7.46"(W) x 5.80"(D) x 1.00"(H)
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Optional VESA Bracket Available

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10/11, IoT, Linux

Application
• Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
