Think Big. Go Small. Eco-Smart Computing

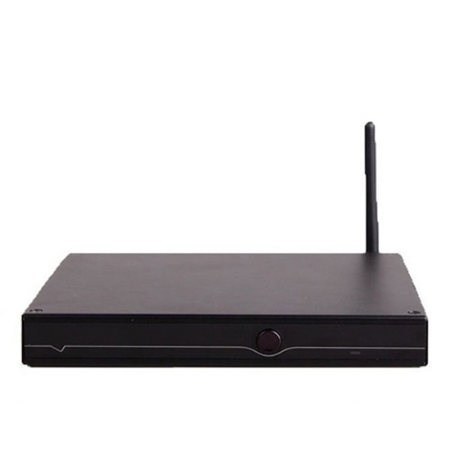

i59B

Skylake-u i3/i5/i7, HD Graphics HDMI+DP, SATA+mSATA+M.2, COM+MiniPCIe SIM
Featured Highlights
Intel® Core™ i5/i3/Celeron®-u Processor
Intel® Skylake Platform (SOC)
Intel® HD 520 Graphics, 4K Resolution, HDMI+DP
2 DDR3L SO-DIMM for up to 16GB Memory
MiniPCIe
Intel® Gigabit LAN
2 USB 3.0, 2 USB 2.0, Type-C
SATA-6Gb/s, mSATA-6Gb/s, M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Input
OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, Robot, Traffic Controller, Industrial Control/IPC, etc.

Starts at: $219.00
SKU: i59B
Product specifications
Processor

• Intel® Core™ i5-6200u 2.30/2.80GHz 2Core 4Threads 3M 15W
• Intel® Core™ i3-6100u 2.30GHz 2Core 4Threads 3M 15W
• Intel® Celeron® 3855u 1.60GHz 2Core 2Threads 2M 10/15W
• Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u

Chipset
• Intel® Skylake Platform (SOC)
Graphics

• Intel® HD 520 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port

Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 1 x TF (microSD) slot supports 128G+ microSD/TF Card

Audio

• Realtek® ALC662 6-channel (5.1)
• Support for S/PDIF Out
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x Serial COM port
• 1 x HDMI® port
• 1 x DP
• 1 x LAN port
• 1 x S/PDIF port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

System BIOS
• Watchdog supported
Chassis

Booksize i 1" Slim size enclosure 7.46"(W) x 5.80"(D) x 1.00"(H)
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Optional VESA Bracket Available
• Option: Booksize F 7.46"(W) x 5.80"(D) x 1.45"(H)

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 7, Windows 8, Windows 10, IoT, Linux
• Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only

Application

• Set Top Box, Digital Signage, POS/Kiosk, Robot, Traffic Controller, Industrial Control/IPC, etc.

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
