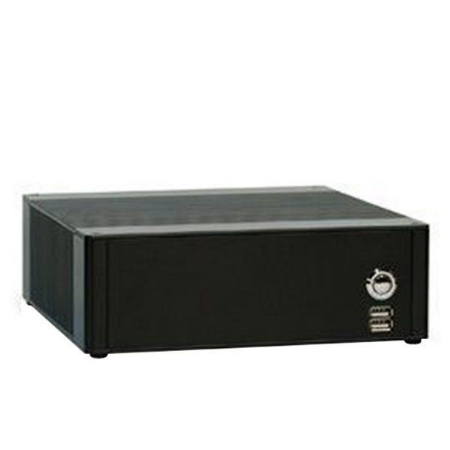

Picture of H8700A

Picture of H8700A

Picture of H8700A

Picture of H8700A

Picture of H8700A

Picture of H8700A

Picture of H8700A

Picture of H8700A

H8700A

4th Generation Intel® Core™ i7/i5/i3, 1 HDMI+1 DP, COM, 4 SATA, 1 mSATA, PCIe x4

Featured Highlights
•	Intel® Core™ i7/i5/i3 processor 1150pin
	4th Generation Haswell Platform
•	Intel® H87 Express Chipset
•	Intel® HD 4600/5000 Series Graphics, 4K Display, 1 HDMI+1 DP
•	2 x DDR3L SO-DIMM for up to 16GB Memory
•	PCIe x4 ,1 x MiniPCIe slot
•	1 Realtek® Gigabit LAN
•	4 USB 3.0, 5 USB 2.0
•	4 x SATA, 1 x mSATA
•	7.1 ALC887 Audio Sound
•	Power Supply: DC19V 3.6A input
•	OS Support: Windows XP, Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux
•	Applications: Surveillance, etc.

SKU: H8700A

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Intel® 4th Generation Haswell processor • LGA1150 socket series with 35W to 84W TDP Chipset • Intel® H87 Express Chipset
Graphics • Intel® HD 4600/5000 Series Graphics, 4K Display • Support 2 Graphics ports • 1 x HDMI® Port • 1 x DP 4K Graphics Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Optional WiFi via miniPCIe module • Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x4 slot • 1 x MiniPCIe socket (supports WiFi+BT or mSATA)
Storage • 4 x SATA 6Gb/s • 1 x mSATA 6Gb/s Audio • Realtek® ALC887 8-channel (7.1) • Internal audio, S/PDIF headers
Back Panel I/O • 4 x USB 3.0 Ports • 1 x HDMI® port • 1 x DP port • 1 x LAN port Internal I/O • 5 x USB 2.0 Headers • 1 x Serial COM Header • 1 x S/PDIF header • 1 x LVDS • 1 x Parallel Port header
Chassis • 400 Series Fanless Aluminum Chassis • Dimensions:400 Case: 8.1(L)x8.1(W)x2.6(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 175C Case 1.75" H 175F Fanless 1.75" H • Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay • Optional: 1000 Aluminum Form Factor • Optional: 1750C Aluminum Form Factor Power Supply • Power: DC19V 3.6A Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows XP, Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux Application • Surveillance, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® 4th Generation Haswell processor • LGA1150 socket series with 35W to 84W TDP Chipset • Intel® H87 Express Chipset
Graphics • Intel® HD 4600/5000 Series Graphics, 4K Display • Support 2 Graphics ports • 1 x HDMI® Port • 1 x DP 4K Graphics Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Optional WiFi via miniPCIe module • Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x4 slot • 1 x MiniPCIe socket (supports WiFi+BT or mSATA)
Storage • 4 x SATA 6Gb/s • 1 x mSATA 6Gb/s Audio • Realtek® ALC887 8-channel (7.1) • Internal audio, S/PDIF headers
Back Panel I/O • 4 x USB 3.0 Ports • 1 x HDMI® port • 1 x DP port • 1 x LAN port Internal I/O • 5 x USB 2.0 Headers • 1 x Serial COM Header • 1 x S/PDIF header • 1 x LVDS • 1 x Parallel Port header
Chassis • 400 Series Fanless Aluminum Chassis • Dimensions:400 Case: 8.1(L)x8.1(W)x2.6(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 175C Case 1.75" H 175F Fanless 1.75" H • Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay • Optional: 1000 Aluminum Form Factor • Optional: 1750C Aluminum Form Factor Power Supply • Power: DC19V 3.6A Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows XP, Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux Application • Surveillance, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
