Think Big. Go Small. Eco-Smart Computing

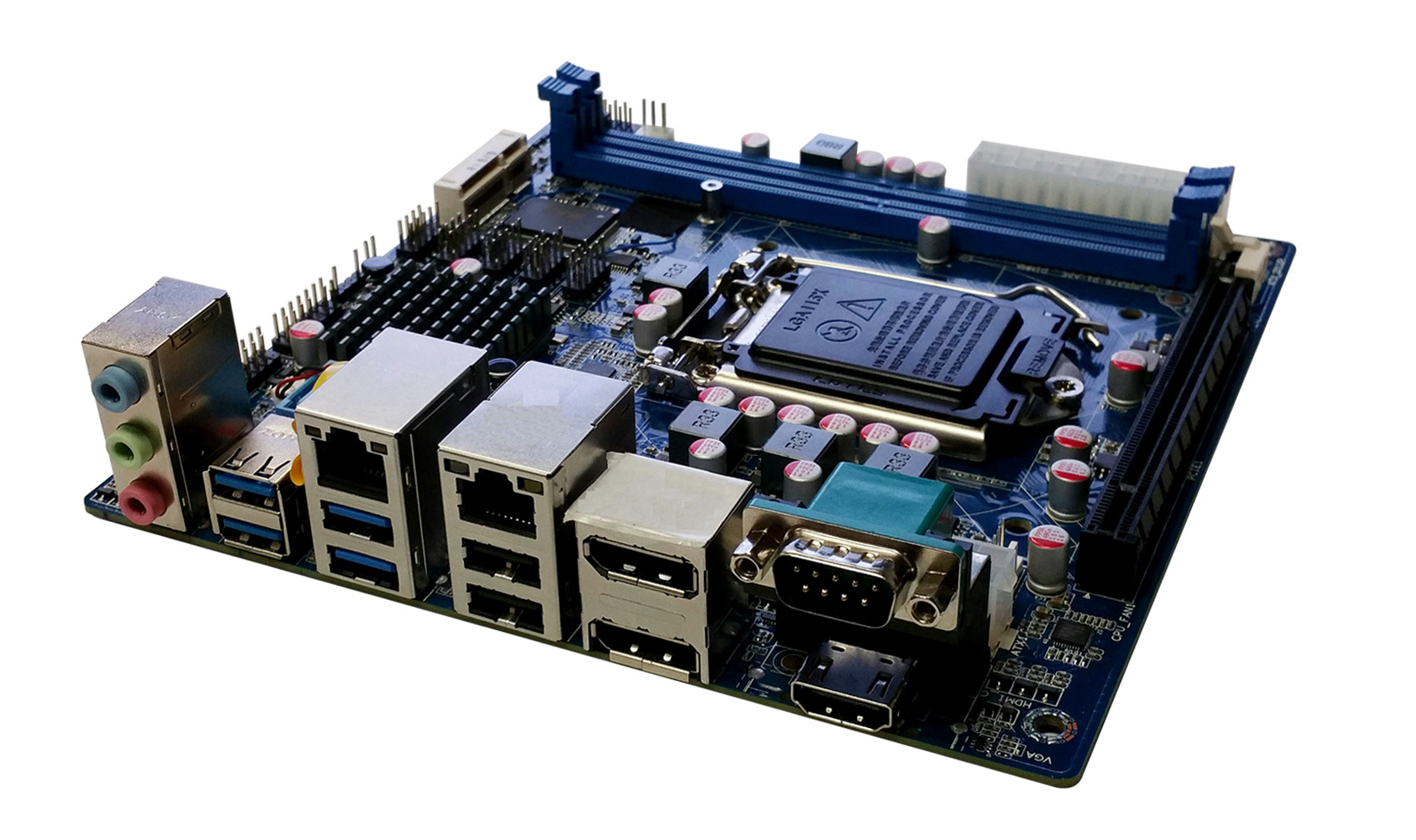

H110L2-4DP/6DP/8DP/K12

6/8DP AMD/Nvidia GPU with Skylake-S i7/i5/i3
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium processor 1151pin
  7th generation Kaby Lake Platform ,6th generation Skylake Platform
  Low-voltage energy efficiency Eco-smart computing
Intel® H110 Express Chipset
Intel® 530 Graphics 2 DP + HDMI Triple 4K Displays
Up to 64GB Dual Channel DDR4 Memory
PCIe 16x Slot + miniPCIE + mSATA
2 x Realtek® GigaLAN
1 mSATA  + 4 SATA-6Gb/s
ALC662 5.1 sound
6 USB 3.0, 4 USB 2.0, 6 COM
Dimension: 1.75"(H) x 8"(D) x 12.25"(W)
Low Voltage DC12V Powered, <1W Idle.
Applications:
  Network Appliance, POS,  Signage, Kiosk, Digital Home
  AV Entertainment, Surveillance, PBX, Thin Client…

SKU: H110L2-4DP
Product specifications
Processor
• Intel® 7th Generation Kaby Lake processor
• LGA1151 socket series with 35W to 91W TDP
• Intel® Core™ i7 processor 7700 series
• Intel® Core™ i5 processor 7500/7400 series
• Intel® Core™ i3 processor
• Intel® Pentium® processor
• Intel® Celeron® processor ,
• Intel® 6th Generation Skylake processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W)
• Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W)
• Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W)
• Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W)
Chipset
• Intel®H110
• ITE® 8628CX I/O Controller
Memory
• Two DDR4 DIMM
• 2133/1866MHz unbufferred non-ECC (Dual Channel I/O)
• Supports for up to 64 GB (But 32GB is most practical)
LAN
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Dual Realtek® Gigabit LAN with cFosSpeed, supports blinding to have 2Gb speed
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Graphics
• 8 Display: Nvidia NVS 810 Graphics Card
• 6 Display: AMD 7750 or 7870 or Fire Pro W600 Card
• 4 Display: Nvidia NVS510,K1200 or AMD FirePro W4100 Card
Expansion Slot
• 1 x 3G/4G SIM Card slot support via miniPCIe slot
• One PCI Express 3.0 16x slot (configureable with 1750C, 500B Chassis)
• One miniPCIe slot (vertical) for WiFi/Bluetooth/3G/4G module
Storage
• 4 SATA 6Gb/s + 1 mSATA
Audio
• Realtek ALC662 6-channel (5.1)
I/O
• 6 USB 3.0 (4 Rear, 2 Headers)
• 4 USB 2.0 (2 Rear, 2 Headers)
• 6 RS-232 Serial Port headers for front or back COM ports
System BIOS
• AMI® UEFI 64MBit)
Chassis
• Small Form Factor Chassis
• One M.2/ mSATA SSD slot.
• 2 x 2.5" HD/ SSD bays
• Dimensions: 1.75"(H) x 8"(D) x 12.25"(W)
• VESA mount, Wall-mount Kit supported.
• Convertible to 1U Rackmount Chassis by adding Rack Ear Kit
• Optional Chassis:500B;(3.5"H x 8" x 8"), or 550PS
• Weight: 2.9 lb (net) 4.5 lb (gross with packaging)
• DC12V Power input (2.5mm)
• DC12V Power Adapter (Fanless) (UL/CE/FCC Certified) (120-120W)
• Option: 1U 200W-400W AC Power supply configured with 1750PS or 550PS chassis.
Power
• DC12V===5A-12.5A input 2.5mm, Optional up to 400W AC Powered with 550PS or 1U-1000S Case
• AC Adapter: 60W, 80W, 120W or 150W 90V-240V; UL, CSA, FCC, CE Certified
• Power Cord: Standard US Power Cord include, European Power Cord available as option.
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 or 7 (32-bit or 64-bit)
• Windows 10 or 7 Pro (32-bit or 64-bit)
• Windows IoT / Embedded Linux / FreeBSD
• Dual-boot Windows / Linux
Application
• Digital Signage, Kiosk, Surveillance, POS, Media Player, IPTV, Network Appliance, IP/PBX, Medical Equipment, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
