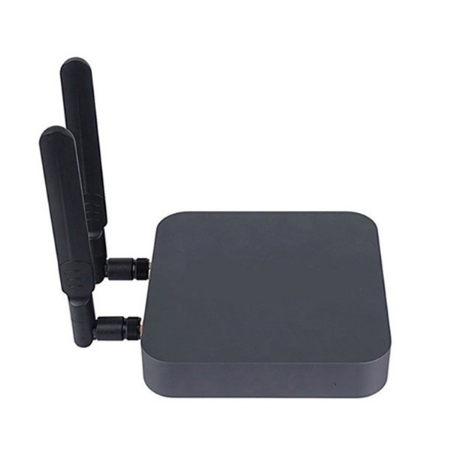

DS-31A Digital Signage Kit Nano-N3150D

Hot PC: Nano-N3150D 4Core Celeron,4G RAM+128G M.2,DP+HDMI Player: Intel® Atom Z8300 4Core HD Graphics HD+DP, with Digital Signage Software

Featured Highlights

  Bundles with Easy Use Digital Signage Software for Small Business
No monthly fee
No Internet required (Saving monthly DSL subscription fee)
Host PC: Intel® 4Core Celeron Processor with HD 4K Graphics
  Player: Intel® 4Core Atom with HD Graphics HDMI+DP Ports
  Host PC manages Player(s) by WiFi-Direct, Router is not required
  One Host PC could manages up to 8 Players con-currently
  Easy use Digital Signage software + hundreds of templates
  Host PC and Player OS: Windows® 10
Applications: Digital Signage for Small Business Turnkey solution.

SKU: SMN3+Z83K16A

Specifications
Request for Info

Product specifications

Player Specifications Nano-Z83-4D Processor • Intel N3150 Celeron • Intel®Atom™ X5-Z8300 4Core 4 Threads 64-bit processor • 1.44/1.8GHz, 2M Cache, 2W low voltage Fanless
Host PC Specifications Memory • 4GB DDR3 • 4GB DDR3 1600MHz (built-in, non-changeable)
Graphics • Intel 8th HD Graphics • HDMI® Port 1.4 + Mini DP Dual Digital Displays LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
OS Support • Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux Video Output • 4K DP+HDMI®
Storage • 128GB SSD • 32GB eMMC Flash internal Storage Audio Output • Optical, 3.5mm stereo jack
I/O Ports • RJ-45 Ethernet jack (Gigabit); supports hotspot sharing via WiFi • Micro SD card reader • USB 3.0 port x 3 Power • DC 5V, 2A adapter included (CE, FCC, CCC certified)
Dimensions • 5" x 5" x 0.75" Height (1.2" includes Rubber feet) • 0.8lb Supported Video Formats • DAT/MPEG/MPE/MPG/TS/TP/VOB/ISO/AVI/MP4/MOV/3GP/FLV/ MKV/M2TS/MTS/M4V/WMV/ASF/RM/RMVB
Supported Audio Formats • MP2/MP3/WMA/WAV/OGG/OGA/FLAC/ALAV/APE/AAC

Your name *

Your email *

Inquiry *

Product specifications

Player Specifications Nano-Z83-4D Processor • Intel N3150 Celeron • Intel®Atom™ X5-Z8300 4Core 4 Threads 64-bit processor • 1.44/1.8GHz, 2M Cache, 2W low voltage Fanless
Host PC Specifications Memory • 4GB DDR3 • 4GB DDR3 1600MHz (built-in, non-changeable)
Graphics • Intel 8th HD Graphics • HDMI® Port 1.4 + Mini DP Dual Digital Displays LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
OS Support • Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux Video Output • 4K DP+HDMI®
Storage • 128GB SSD • 32GB eMMC Flash internal Storage Audio Output • Optical, 3.5mm stereo jack
I/O Ports • RJ-45 Ethernet jack (Gigabit); supports hotspot sharing via WiFi • Micro SD card reader • USB 3.0 port x 3 Power • DC 5V, 2A adapter included (CE, FCC, CCC certified)
Dimensions • 5" x 5" x 0.75" Height (1.2" includes Rubber feet) • 0.8lb Supported Video Formats • DAT/MPEG/MPE/MPG/TS/TP/VOB/ISO/AVI/MP4/MOV/3GP/FLV/ MKV/M2TS/MTS/M4V/WMV/ASF/RM/RMVB
Supported Audio Formats • MP2/MP3/WMA/WAV/OGG/OGA/FLAC/ALAV/APE/AAC
