Processor
• Intel® 6th Generation Skylake processor • LGA1151 socket series with 35W to 65W TDP • Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W) • Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W) • Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W) • Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W)
Chipset
• Intel® B150 • ITE® 8628CX I/O Controller
|
Memory
• 2 x DDR4 DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB (however 32GB is most practical)
LAN
• 2 x Intel® Gigabit (10/100/1000 Mb/s) LAN with Intel® i219V+i211AT Ethernet • Dual Intel® Gigabit LAN with cFosSpeed, supports blinding to have 2Gb speed • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
|
Graphics
• Intel® HD Graphics 530 4K Resolution • 2 x HDMI® , Dual Digital Graphics Ports
Expansion Slot
• One PCI Express 3.0 16x slot (configureable with 1750C, 500B Chassis) • One M.2 PCIe 3.0 4x full size socket for SSD (up to 32GB/s) • One miniPCIe slot (vertical) for WiFi/Bluetooth
|
Storage
• Six SATA 6Gb/s supports RAID 0, 1, 5, 10 • One M.2 Socket 3 (PCIe 4x, supports up to 32GB/s SSD)
Audio
• Realtek ALC1050 8-channel (7.1) • 115dB SNR HD Audio with Built-in Rear Audio Amplifier (OPA1652) • Chemicon Audio Capacitor, Audio Noise Guard • Five 3.5mm analog anduo jacks for 7.1 speaker out • Internal audio, S/PDIF headers
|
I/O
• 6 USB 3.0 (4 Rear, 2 Headers) • 2 USB 2.0 (via headers) • Four RS-232 Serial Port headers for front or back COM ports • 1 Chassis intrusion header
System BIOS
• AMI® UEFI 64MBit)
|

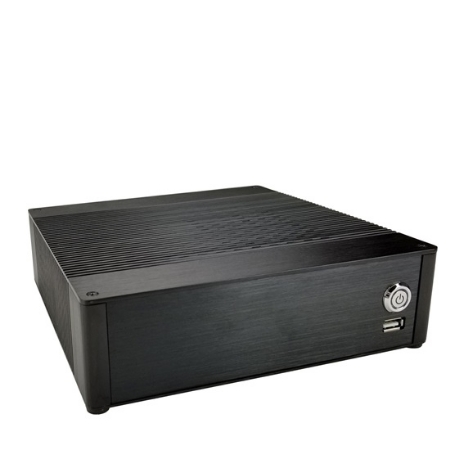

Chassis
• Small Form Factor with aluminum panel, convertible to 1U Rackmount • Dimensions: 175C: 1.75(H)x8(W)x8(D ) inch • 300B: 2.2(H) x 8.1 (W) x 8.1 (D) inch • 1750F: 1.75(H) x 12.25 (W) x 8.1(D) inch Fanless chassis • Weight: 3 lb. Net 9 lb (with packaging) • Drive Bay: one 2.5" internal for HD or SSD • Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available. • Supports VESA, wall mount or rackmount brackets. • Optonal Chassis: 1750C or 500B with RISER Slot; 500A with DVD/Blu-ray, 730N5 with 5x 3.5" HD
|
Power Supply
• DC12V===5A-12.5A input 2.5mm, Optional up to 400W AC Powered with 550PS or 1U-1000S Case • AC Adapter: 60W, 80W, 120W or 150W 90V-240V; UL, CSA, FCC, CE Certified • Power Cord: Standard US Power Cord include, European Power Cord available as an option. • Energy Star Compliance, Idle mode at <1W, • Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux
|
Application
• Digital Signage, Kiosk, Surveillance, POS, Media Player, IPTV, Network Appliance, IP/PBX, Medical Equipment, etc.
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
