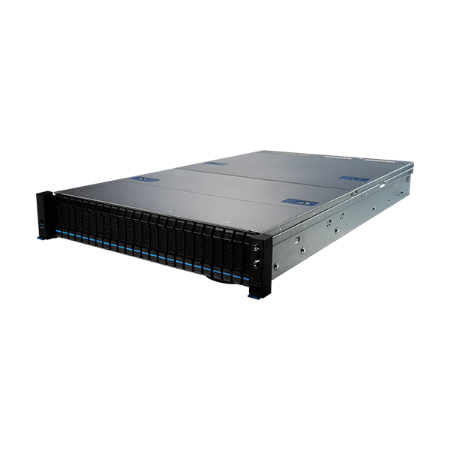

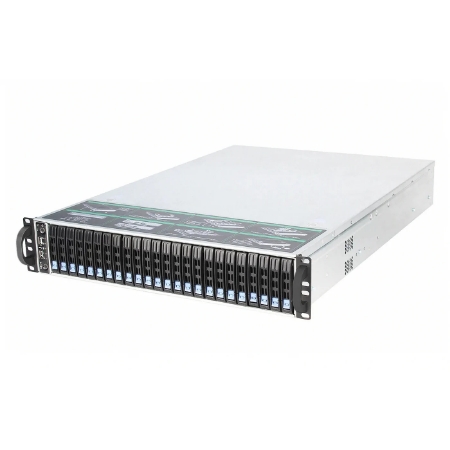

PolyStor 2U24N-E5

2U 24 x Hot-swap 2.5" drive bays, 24 × DDR5 slots, 5th Gen EPYC™

Key Features:

• 2 × AMD EPYC 9004/9005 series processors, up to 128 cores each
• 24 x Hot-swap 2.5" drive bays: 16 x U.2 PCle 4.0 NVMe + 8 x SATA 3.0/SAS
• 24 DDR5 RDIMM slots (12 channels per CPU), up to 6000 MT/s; supports RDIMM and 3DS RDIMM
• 2 x 1GbE RJ45 LAN + IPMI, 1 × OCP NI4800C 3.0 slot
• 3 x PCle 5.0 x16 FHHL slots
• 1600W Titanium Redundant Power Supply
• For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning.

SKU: 2U24N-E5 (Storage)

Specifications
Request for Info

Product specifications

Processor • 2 × AMD EPYC 9004/9005 series processors, up to 128 cores each Memory • 24 DDR5 RDIMM slots (12 channels per CPU), up to 6000 MT/s; maximum capacity per DIMM: RDIMM 96 GB; 3DS RDIMM 256 GB
Storage • 24 x Hot-swap 2.5" drive bays: 16 x U.2 PCle 4.0 NVMe + 8 x SATA 3.0/SAS Network • 2×1GbE IPMI RJ45 • Support 1× OCP 3.0 SFF expansion card, multi-host、NCSI support 4×1GbE / 2×10Gb SFP+ /4×10Gb SFP+/ 2×25Gb SFP28 option
Expansion Slot • 1 x PCle 5.0 x16 FHHL slot from CPU0 • 2 x PCle 5.0 x16 FHHL slot [x8 signal) from CPU0 Graphics • Aspeed AST2600 BMC VGA
Back Panel I/O • 2 x 1000Base-T Ethernet ports [PolyServer 2U24N-E5 only) • 1 x 1000Base-T Dedicated Server Management port • 2 x USB 3.0 Type-A port • 1 x VGA O-Sub port • 1 x COM RJ45 port • 1 x UID LED button Front I/O • 24 Hot-swap 2.5" drive bays (Front) • 1 x USB 3.0 Type-A port (Front) • 1 x USB 2.0 Type-A port (Front) • 1 x VGA D-Sub port (Front) • 1 x System Power LED button (Front) • 1 x UID LED button (Front) • 1 x Reset button (Front) • 4 x Status LEDs: Fault/LAN/M.2 (Front)
BIOS • AMI® • Watchdog Supported Chassis • 2U Rackmount with Front UID/LED • 24 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimensions: 438mm(17.2")W x 87mm(3.4")H x 770mm(30.3")D • System Weight: 42 lbs. (19kg) Net, 70 lbs. (32kg) Gross
Power Supply • 1600W (1+1) Redundant Titanium Level with PMBus • 1000W: 100-127Vac / 1600W: 200-240Vac Input OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning. Environment • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
