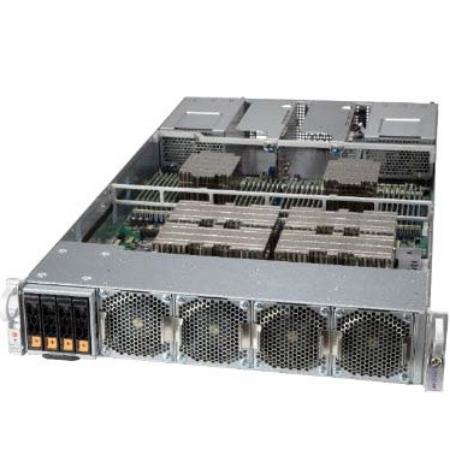

EPYC-7002x2-2U4xA100GPU

Dual AMD EPYC™ 7002-Series, 4 U.2 NVMe + 2 M.2, 2x10Gbit LAN + IPMI, 32 DDR4 up to 8TB 8-Channel memory, 1 PCIex8 + 4 PCIex16

Featured Highlights
•	Dual AMD® EPYC™ 7002 Series Processors
•	4 x Nvidia® HGX A100 GPU 40GB on-board
•	2U 4 x 2.5” Hot Swap SATA/SASA or U.2 NVMe
•	32 DIMM for up to 8TB DDR4 ECC 8-Channel 3200MHz memory
•	2 x 10Gbit Ethernet + IPMI
•	4 PCIe 4.0 x16 + 1 PCIe 4.0 x8 Low Profile Slots
•	2200-3000W Titanium Redundant Power Supply
•	Optimized for GPU Computing

SKU: EPYC-7002x2-2U4xA100GPU

Specifications
Request for Info

Product specifications

Processor • Dual AMD® EPYC™ 7002-series Processors • Socket SP3 GPU • 4 x Nvidia® HGX A100 GPU 40GB integrated on board • 2 x 2 NVLink
Memory • 32 DIMM Sockets • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM • 8-channel memory bus per processor Network • 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN RJ45 • 1 x RJ45 Gigabit LAN for IPMI • Additional LAN or Infini-band by add-on cards
Expansion Slot • 4 x PCIe 4.0 x16 Low Profile • 1 x PCIe 4.0 x8 Low Profile Storage • 4 x 2.5” SATA/SAS/U.2 NVMe PCIe 4.0 How Swap Bay • 2 x M.2-2280 PCIe x4 by Adapter in the internal PCIe slot
Back Panel I/O • 1 x RJ45 IPMI • 2 x RJ45 Ethernet • 1 x DB15 VGA Port • 2 x USB 3.0 Internal I/O • 1 x RS-232 COM port header • 2 x USB 3.0 Header
Chassis • 2U Rackmount • 4 x Front 2.5” Drive Bays • Optional Backplan for SATA/SAS/U.2 NVMe • 6 x Hot Swap 80mm System Fans Power Supply • 2200W Titanium Level (Optional 3000W) • 1+1 Redundant Hot Swap • 100V-240V AC input
Dimensions • Dimension: 17.2”W x 1.7”H x 23.9”D • System Weight: 35 lb OS Support • Windows Server • Linux • FreeBSD • VMware
Application • AI GPU Computing • Deep Learning Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Dual AMD® EPYC™ 7002-series Processors • Socket SP3 GPU • 4 x Nvidia® HGX A100 GPU 40GB integrated on board • 2 x 2 NVLink
Memory • 32 DIMM Sockets • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM • 8-channel memory bus per processor Network • 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN RJ45 • 1 x RJ45 Gigabit LAN for IPMI • Additional LAN or Infini-band by add-on cards
Expansion Slot • 4 x PCIe 4.0 x16 Low Profile • 1 x PCIe 4.0 x8 Low Profile Storage • 4 x 2.5” SATA/SAS/U.2 NVMe PCIe 4.0 How Swap Bay • 2 x M.2-2280 PCIe x4 by Adapter in the internal PCIe slot
Back Panel I/O • 1 x RJ45 IPMI • 2 x RJ45 Ethernet • 1 x DB15 VGA Port • 2 x USB 3.0 Internal I/O • 1 x RS-232 COM port header • 2 x USB 3.0 Header
Chassis • 2U Rackmount • 4 x Front 2.5” Drive Bays • Optional Backplan for SATA/SAS/U.2 NVMe • 6 x Hot Swap 80mm System Fans Power Supply • 2200W Titanium Level (Optional 3000W) • 1+1 Redundant Hot Swap • 100V-240V AC input
Dimensions • Dimension: 17.2”W x 1.7”H x 23.9”D • System Weight: 35 lb OS Support • Windows Server • Linux • FreeBSD • VMware
Application • AI GPU Computing • Deep Learning Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
