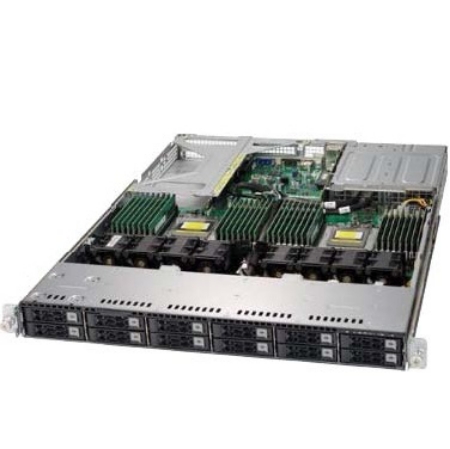

EPYC-7002x2-1U12N

Dual AMD EPYC™ 7002-Series, 12 U.2 NVMe + 2 M.2, 4x10Gbit LAN + IPMI, 32 DDR4 up to 8TB 8-Channel memory, 3 PCIex16
Featured Highlights
Dual AMD EPYC™ 7002 Series Processors
1U 12 x 2.5” Hot Swap SATA/SASA or U.2 NVMe
16-32 DIMM for up to 8TB DDR4 ECC 8-Channel memory
4 x 10Gbit Ethernet (2 x RJ45, 2 x SFP+)
3 PCIe 4.0 x16 Slots + 2 M.2-2280 NVMe slots
1200W Titanium Redundant Power Supply

SKU: EPYC-7002x2-1U12N
Product specifications
Processor
• Dual AMD® EPYC™ 7002-series Processors
• Socket SP3
Memory
• 32 DIMM Sockets
• Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
• 8-channel memory bus per processor
Network
• 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN RJ45
• 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN SFP+
• 1 x RJ45 Gigabit LAN for IPMI
• Additional LAN or Infini-band by add-on cards
Expansion Slot
• 3 x PCIe 4.0 x16 (2 x full height, 1 x low profile)
Storage
• 12 x 2.5” SATA/SAS/U.2 NVMe PCIe 4.0/3.0 How Swap Bay
• 2 x M.2-2280 PCIe 3.0 x4 NVMe Slots
Back Panel I/O
• 1 x RJ45 IPMI
• 2 x RJ45 Ethernet
• 2 x SFP+ Ethernet
• 1 x DB15 VGA Port
• 2 x USB 3.0
Internal I/O
• 1 x RS-232 COM port header
• 2 x USB 3.0 Header
BIOS
• AMI
Chassis
• 1U Rackmount
• 12 x Front 2.5” Drive Bays
• Optional SKU with 12 x Front 2.5” Drive Bays
• Optional Backplan for SATA/SAS/U.2 NVMe
• 8 x Hot Swap 10K RPM System Fans
Power Supply
• 1200W Titanium Level
• 1+1 Redundant Hot Swap
• 100V-240V AC input
Dimensions
• Dimension: 17.2”W x 1.7”H x 24”D
• System Weight: 37 lb
OS Support
• Windows Server
• Linux
• FreeBSD
• VMware
Application

• Cloud Server
• Database Server

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
Product specifications
Processor
• Dual AMD® EPYC™ 7002-series Processors
• Socket SP3
Memory
• 32 DIMM Sockets
• Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
• 8-channel memory bus per processor
Network
• 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN RJ45
• 2 x Intel® 10Gbit (10/100/1000/10000 Mb/s) LAN SFP+
• 1 x RJ45 Gigabit LAN for IPMI
• Additional LAN or Infini-band by add-on cards
Expansion Slot
• 3 x PCIe 4.0 x16 (2 x full height, 1 x low profile)
Storage
• 12 x 2.5” SATA/SAS/U.2 NVMe PCIe 4.0/3.0 How Swap Bay
• 2 x M.2-2280 PCIe 3.0 x4 NVMe Slots
Back Panel I/O
• 1 x RJ45 IPMI
• 2 x RJ45 Ethernet
• 2 x SFP+ Ethernet
• 1 x DB15 VGA Port
• 2 x USB 3.0
Internal I/O
• 1 x RS-232 COM port header
• 2 x USB 3.0 Header
BIOS
• AMI
Chassis
• 1U Rackmount
• 12 x Front 2.5” Drive Bays
• Optional SKU with 12 x Front 2.5” Drive Bays
• Optional Backplan for SATA/SAS/U.2 NVMe
• 8 x Hot Swap 10K RPM System Fans
Power Supply
• 1200W Titanium Level
• 1+1 Redundant Hot Swap
• 100V-240V AC input
Dimensions
• Dimension: 17.2”W x 1.7”H x 24”D
• System Weight: 37 lb
OS Support
• Windows Server
• Linux
• FreeBSD
• VMware
Application

• Cloud Server
• Database Server

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
