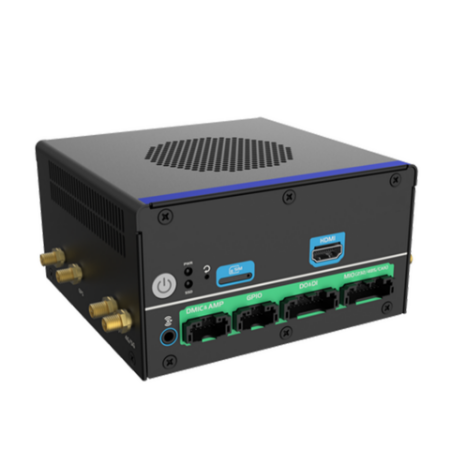

AI-X58L6 - ARM Entertainment PC, Edge Device

Chipset

• Rockchip RK3588 (SOC)

Memory

• 8GB/16GB LPDDR5 (built-in, non-changeable)

Expansion Slot

• 1 x MiniPCIe full size slot (for 4G Wireless Module)
• 1 x M.2-3042 for 5G/4G-LTE modem with sim slot
•  1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)

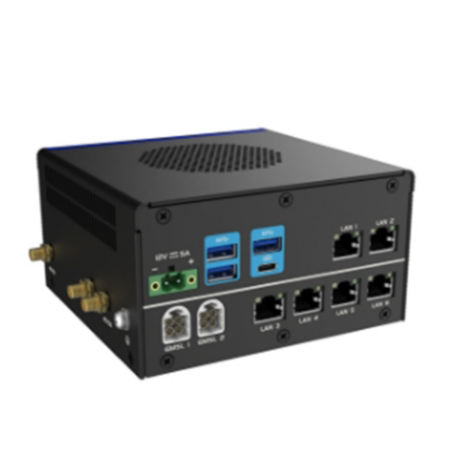

Back Panel I/O

• 3 x 3.0 Type-A
• 1 x 3.0 Type-C
• 6 x LAN port
• Video: 2 x Rear Mini Fakra (8-ch GMSL2)
• DC9-36V 2-pin Phoenix

Chassis

• Nano Fanless Enclosure • Dimensions: 7.36"(W) x 5.16"(D) x 2.13"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets

OS Support

• Linux 22.04, ROS2

Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)• Non operating temperature: -20 to 70 C• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz• Shock - Operating: 3,920 m/s2 (400G) 2ms• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms• Operating Relative Humidity: 8% to 90% (non-condensing)• Non-operating Relative Humidity: 5% to 95% (non-condensing)• MTBF: 100,000 Hours• FCC, CE, RoHS Certified
