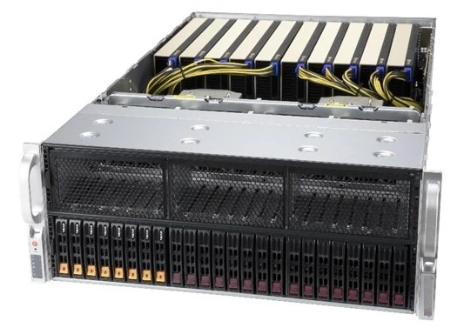

4U10GPU-4189A

4U 10xGPU Lots, 24x2.5" Bay, 32DIMM 2LAN+OCP3.0, Ice Lake Xeon®

Key Features:

• 4U 10 x GPU Slots for Nvidia® A100, A40 or RTX-A6000 GPU Card
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• Front 24 x 2.5” NVMe U.2 4.0 / SATA / SAS Hot Swap System Drives
• 2 x M.2 NVMe 4.0 / SATA for OS Mirrored Drives
• 32 DDR4 up to 12TB 8-Channel Memory, supports Optane™ Memory
• 12 PCIe 4.0 x16 Full Height Full Length Slots
• 2xGbit LAN+OCP 3.0 PCIe 4.0 x16 for Networking Module, IPMI 2.0
• 4 x 2000W Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC, etc.

Download DataSheet

$0.00

SKU: 4U10GPU-4189A, SYS-420GP-TNR, BBP9-IX324UAG

Qty:

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Dual 3rd Generation Intel® Scalable Xeon® (Ice Lake Family) • Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads Chipset • Intel® C621A
GPU • 10 GPU Slots for Nvidia® A100, A40 or RTX-A6000 GPU Card Memory • 32 DDR4 DIMM Sockets • Supports up to 12TB ECC DDR4 3200MHz RDIMM • 8-channel memory bus per processor • Supports Intel® Optane™ persistent memory 200 series
Storage • 24 x 2.5” (8)NVMe U.2 PCIe 4.0 / (8)SATA / (8) SAS/SATA Hot Swap Bays • Supports 8 NVMe (16GT/s)/8 SATA (6Gb/s)/8 SATA or SAS (12Gb/s) RAID-0/1/5/10 • 2 x M.2-2280 Sockets for NVMe 4.0 x4/SATA RAID-1 Network • 2 x Gigabit Ethernet (Intel® i350) • OCP 3.0 (PCIe 4.0 x16) for Network Module • Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28 • RJ45 Gigabit LAN for IPMI 2.0 by AST2600 (KVM) • Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot • 12 x PCIe 4.0 x16 (Full Height, Full Length) • 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module Back Panel I/O • 1 x RJ45 IPMI (Front), 1 x DB15 VGA, 2 x USB 3.1 Gen2
Internal I/O • TPM header BIOS • AMI® • Watchdog Supported
Chassis • 4U Rackmount • 24 x 2.5” NVMe U.2 4.0/SATA/SAS Front Hot Swap Drive Bays • 2 x Front pull ID tags • Dimension: 7" (178mm) H x 17.2" (437mm) W x 29" (737mm) D • System Weight: 85 lbs. (40kg) Net, 120 lbs. (55kg) Gross Power Supply • 4 x 2000W Redundant with PMBus, Titanium Level • 1000W: 100-127Vac / 2000W: 220-240Vac Input
OS Support • Windows Server, Linux Applications • CPU Cluster for AI, Deep Learning, HPC.
Environment • Operating Temperature: 0 to +35 C • Non-operating Temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
