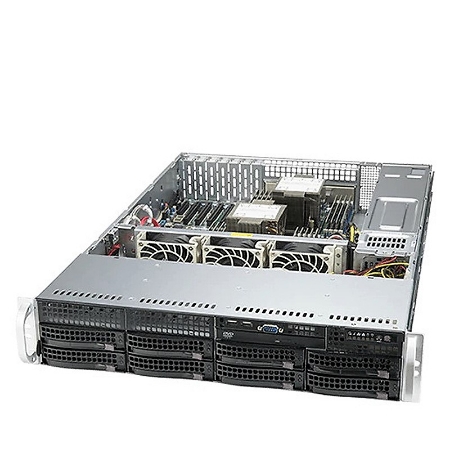

2U8S16-4189A

2U 8x3.5” SATA, 16 DIMM 2x 10Gbit LAN, 6 PCIe M.2, Dual Ice Lake Xeon®

Key Features:

• 2U 8 x 3.5” NVMe U.2/ SAS/ SATA Hot Swap Drives
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 16 DDR4 up to 4TB 8-Channel Intel® Optane™ Memory
• 4 PCIe 4.0 x16 Slots, 2 PCIe 4.0 x8 Slots
• M.2-2280/22110
• 2 10GbE LAN with IPMI 2.0
• 1200W Platinum Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud

Download DataSheet

Start at Call for pricing Options(800-999-1278)
SKU: 2U8S16-4189A, SYS-620P-TRT
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon® (Ice Lake Family)
• Socket P+ (LGA 4189), supports 270W, up to 40 Core 80 Threads
Chipset
• Intel® C621A
Memory
• 16 x DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 4TB ECC DDR4 3200MHz RDIMM
• Supports up to 4TB Intel® Optane™ Persistent Memory 200 series
GPU
• Aspeed AST2600 BMC VGA (DB15)
Storage
• 8 x 3.5” NVMe U.2/ SAS*/ SATA Hot Swap Bays
• Intel® C621A 8 x SATA (6Gb/s) RAID-0/1/5/10
• 1 x M.2-2260/2280/22110 Socket NVMe/ SATA RAID-0/1
• Optional* Broadcom® 3108/3808/3816/3916 for SAS (12Gb/s)
• Optional Slim DVD drive bay
• 2 x SATA-DOM (Disk on Module)
Network
• 2 x 10GbE RJ45 LAN from Intel® X550 Controller
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600 (KVM)
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 4 x PCIe 4.0 x16 (Low Profile)
• 2 x PCIe 4.0 x8 (Low Profile)
Back I/O
• 2 x 10GbE RJ45 LAN
• 1 x RJ45 IPMI
• 1 x DB15 VGA
• 4 x USB 3.0
• 1 x RS-232 COM
Internal I/O
• 3 x USB 3.0 (2 x Headers + 1 x Type A)
• 1 x TPM Header
Other I/O

• 2 x USB 2.0 (Front)
• 1 x RS-232 COM (Front)
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U Rackmount with UID LED
• 8 x 3.5” NVMe/ SAS/ SATA Hot Swap Drive Bays
• Optional Slim DVD drive bay
• 3 x Cooling Fans
• Dimension: 3.5" (89 mm) H x 17.2" (437 mm) W x 25.5" (647 mm) D
• System Weight: 35.5 lbs. (16.1 kg) Net, 69 lbs. (31.2 kg) Gross
Power Supply
• 1200W (1+1) Redundant Titanium Level with PMBus
• 100-200Vac Input and 200-240Vdc Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment
• Operating Temperature: 10 to +35 C
• Non-operating Temperature: -40 to +60 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
*
*
*
