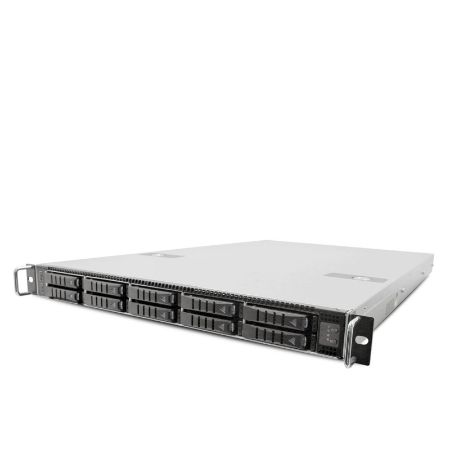

1U10N16-4189A

1U 10x NVMe U.2/SATA/SAS, 16x 8-Channel DDR4, 3rd Gen. Scalable Xeon®

Key Features:

• 1U 10 x 2.5” NVMe U.2 4.0 / SATA / SAS Hot Swap Drives
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 16 DDR4 up to 6TB 8-Channel Intel® Optane™ Memory
• 2 PCIe 4.0 x16 Slots, 2 x M.2 / SATA, 1 x SATA-DOM
• OCP 3.0 PCIe 4.0 x16 Slot for Ethernet Module, IPMI 2.0
• 860W Platinum Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud, etc.

Download DataSheet

$0.00

SKU: 1U10N16-4189A

Qty:

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Dual 3rd Generation Intel® Scalable Xeon® • Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads Chipset • Intel® C621A
Graphics • Aspeed AST2600 BMC VGA (DB15) Memory • 16 DDR4 DIMM Sockets • 8-channel memory bus per processor • Supports up to 4TB ECC DDR4 3200MHz LRDIMM • Supports up to 6TB Intel® Optane™ persistent memory 200 series
Storage • 10 x 2.5” NVMe U.2 PCIe 4.0 / SATA / SAS* Hot Swap Bays • Intel® C621A NVMe (16GT/s) or SATA (6Gb/s) RAID-0/1/5/10 • Optional* SAS (12Gb/s) by Broadcom® 3908 RAID-0/1/5/6/10/50/60 • 2 x M.2-22110/2280 Sockets for NVMe 3.0 x2/SATA, 1 x SATA-DOM Network • 2 x OCP 3.0 (PCIe 4.0 x16) for Network Modules • Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28 • RJ45 Gigabit LAN for IPMI 2.0 by AST2600 • Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot • 2 x PCIe 4.0 x16 (Full Height) • 2 x OCP 3.0 (PCIe 4.0 x16) Slots for Ethernet Network Modules Back I/O • 1 x RJ45 IPMI • 2 x RJ45 Ethernet, Optional 2 x SFP+ Ethernet • 1 x DB15 VGA, 2 x USB 3.0, 1 COM
Internal I/O • 2 x USB 2.0 header for Front USB • 1 x TPM Header BIOS • AMI® • Watchdog Supported
Chassis • 1U Rackmount • 10 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 6 x 4cm Cooling Fans • Dimension: 1.7" (43mm) H x 17.2" (437mm) W x 23.5" (597mm) D • System Weight: 28 lbs. (12.7kg) Net, 45 lbs. (20.5kg) Gross Power Supply • 2 x 860W Redundant Platinum Level • 100-240Vac Input
OS Support • Windows Server, LinuxWindows Server, Linux, FreeBSD, VMware Application • Virtual Server, Compute Server, Database Server, Cloud Computing.
Environment • Operating Temperature: 0 to +35 C • Non-operating Temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
