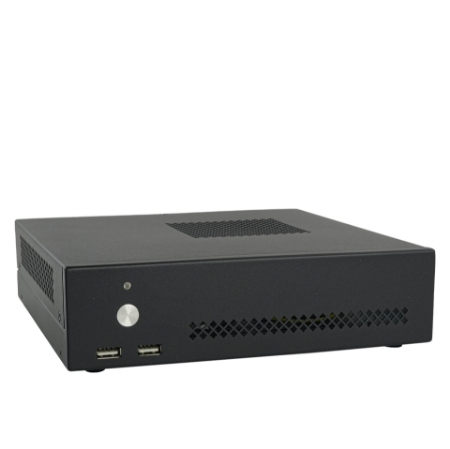

190D

8.25"(W) x 8"(D) x 2"(H)

Featured Highlights
	Dimensions: 8.25"(W) x 8"(D) x 2"(H)
	One 2.5" HD/Solid State Drive Bay
	Built-in DC to DC Converter
	DC12V 5A Power Adapter
	Color: Black (Custom colors available with special order)
	Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone

SKU: 190D

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

H610L2C6	13th and 14th Generation Intel® Socket-S Series LGA1700 Raptor Lake/Meteor Lake	H610	2 x DDR5 SO-DIMM	UHD 770	2 LAN 2.5GB				PCIe 5.0 x16
B760L2	13th/14th Gen Socket-S series	B760	2 DDR5 DIMM	UHD 770	2LAN 2.5GbE+2 M.2		2	HDMI 2.1+DP 1.4+VGA/DP+LVDS	PCIe 5.0 x16+PCIe 4.0
Q670L2	12th Gen Socket-S series	Q670	2 DDR5 DIMM	UHD 770	2 LAN 2.5GbE			2 DP +1 HDMI	PCIe 5.0 x16+ PCIe 4.0 x4 +2M.2
Q670L2D	13th/14th Gen Raptor Lake	Q670	2 x DDR5 DIMM	UHD 770	2LAN 2.5GbE+2 M.2	4	6	2HDMI 2.1+2DP 1.4+VGA/DP+LVDS	PCIe 5.0 x16+PCIe 4.0	2 COM	7.1CH ALC897
Z690L2V4	Intel Socket-S LGA1700	Z690 Chipset	2 DDR5	UHD 770/730/710	2 LAN + WiFi 6E	2 H	6 R + 2 H	2 HDMI 2.0 + 2 DP	PCIe 5.0 x16		ALC897 (7.1)
Z790L2	13th Gen Socket-S series	Intel® Z790	2 DDR5 DIMM	UHD 770	2 LAN + Wifi6 AX201 802.11	2	4	1 HDMI+1 DP			7.1 ALC897
H610V3	Alder Lake	H610	2 DDR4SO	UHD 770/730	Realtek® RTL8125B	3 R	2 R	2 HDMI, DP			Realtek® ALC897
H610L2	Alder Lake	H610	2 DDR4 U-DIMM	UHD 770/730	2 LAN	3 R	2 R	2 HDMI, DP			ALC897
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
X570E	Socket AM4 Ryzen 3rd	AMD X570	2 DDR4	Radeon Vega	1 Intel\i211AT	2 H	4 R+2 H	1 DP+2 HDMI2.0	PCIe 16x		7.1 ALC1220
A620E	AMD Zen4 Ryzen™	AMD A620	2 x DDR5 DIMM	AMD RDNA™ graphics	2.5 Gigabit	3	5	1 x HDMI	1 x PCI E 5.0 x16 slot	2 x Antenna Ports	7.1 CH ALC897
C266-ET	Xeon E-2400	C266	2 DDR5	ASPEED AST2600	2xGbit Marvell		2R + 2H		1x16		7.1 ALC892
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3558L4	Atom-C (BGA-1310)	Denverton C3000	4 DDR4 256G/2Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3758L4/C3758T	C3758	Denverton	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	2 R	1 H	1 VGA	PCIe 4x	TPM	option
C3338L6-SFP	Atom C3758R	Denverton	2 x DDR4	HD Graphics	5 Intel I225/226-V 2.5Gbit	1R	1R + 1H		2 x M.2, 1 x M.2B Key		Optional USB module
X-D2123TPL4	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	4 Intel\I350-AM4+1 IPMI	2 H	2 R	1 VGA	1 PCIe 16x+1 PCIe 8x	TPM	TPM
X-D2123T	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	2 Intel\X557+1 IPMI	2 H	2 R	1 VGA	1 PCIe 8x+1 OCuLink	TPM	TPM
C242L2	Xeon E-2200 (1151pin)	C242	4 DDR4 128G/2Ch	Aspeed AST2500	2xGbit Intel i210	2 R+2 H	2 R+3 H	IPMI 2.0	1x16	TPM+GPIO	7.1 ALC892
C246L2	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Intel UHD P630	2xGbit Intel i210	2 R	4 R+2 H	IPMI 2.0	1x16	6H	7.1 ALC892
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J5040/J4125AE	J4005	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek	3 R+4 H	2 R	1 HDMI+1 DP+1 eDP+1 LVDS	PCIe 2x	GPIO	5.1 ALC662
J4125AEL2	Intel Celeron	Gemini Lake	2 DDR4 SO	Intel UHD 600		7	2	HDMI+DP+eDP+LVDS	M.2 WiFi + MiniPCIe 4G		5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
N100AE/AEL2	N100	Alder Lake-N Platform SOC	1 DDR4SO	Intel® UHD Graphics	2 LAN			1 HDMI+1 DP	2 M.2+PCI x1	6 COM header
