Picture of PolyStation C621A8

PolyStation C621A8

Dual Socket P Intel® Xeon®, 10 SATA3-6 + 2 Gigabit LAN
8 DDR4 up to 1TB, 6 PCIe 3.0 Slots

Featured Highlights
•	Dual Socket P Intel® Xeon® Scalable Processors.
•	Intel® C621
•	up to 1TB Registered ECC DDR4, 8x DIMM slots.
•	2 PCI-E 3.0 x16,3 PCI-E 3.0 x8,1 PCI-E 3.0 x4 (in x8 slot)
•	1 VGA port
•	Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
•	Dual LAN with Lewisburg Marvell® 88E1512 PHY

SKU: PolyStationC621A8

Specifications
Request for Info

Product specifications

Processor • Intel® Xeon® Scalable Processors. • Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s Chipset • Intel® C621
Memory • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM On-Board Devices • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 • ASPEED AST2500 • Aspeed AST2500 BMC
Network • Dual LAN with Lewisburg Marvell® 88E1512 PHY Expansion Slot • 2 PCI-E 3.0 x16 • 3 PCI-E 3.0 x8 • 1 PCI-E 3.0 x4 (in x8 slot)

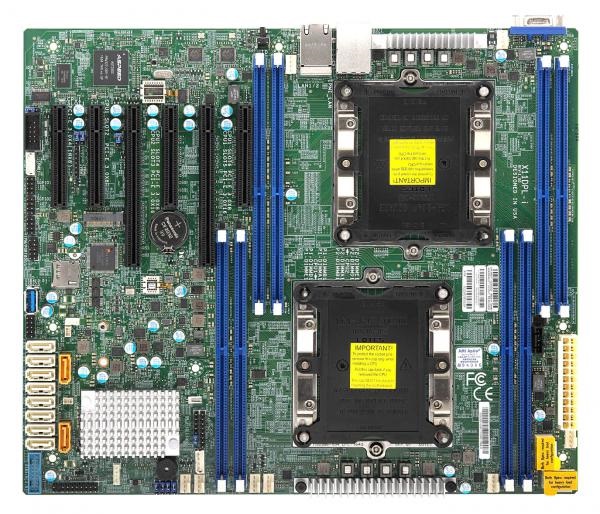

I/O • 10 SATA3 (6Gbps) port • 2 RJ45 Gigabit Ethernet LAN ports • 4 USB 2.0 ports (2 rear + 2 headers) • 3 USB 3.0 ports (2 headers + 1 Type A) • 1 VGA port • 1 COM Port (1 header) • 1 TPM Header Systemboard • ATX 12.076" x 10.15"

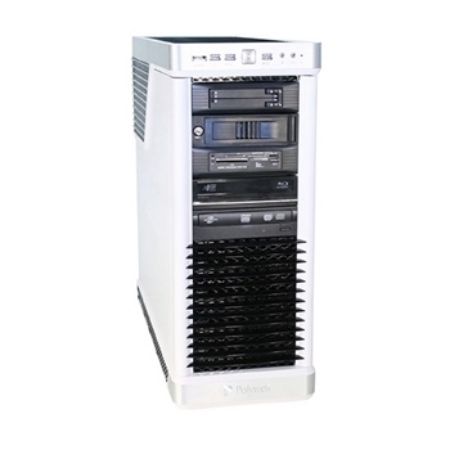

Chassis • TS900W 9-Bay ATX Tower • 9 external 5.25" with Easy Front Removable Tray • 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch BIOS AMI UEFI
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Xeon® Scalable Processors. • Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s Chipset • Intel® C621
Memory • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM On-Board Devices • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 • ASPEED AST2500 • Aspeed AST2500 BMC
Network • Dual LAN with Lewisburg Marvell® 88E1512 PHY Expansion Slot • 2 PCI-E 3.0 x16 • 3 PCI-E 3.0 x8 • 1 PCI-E 3.0 x4 (in x8 slot)
I/O • 10 SATA3 (6Gbps) port • 2 RJ45 Gigabit Ethernet LAN ports • 4 USB 2.0 ports (2 rear + 2 headers) • 3 USB 3.0 ports (2 headers + 1 Type A) • 1 VGA port • 1 COM Port (1 header) • 1 TPM Header Systemboard • ATX 12.076" x 10.15"
Chassis • TS900W 9-Bay ATX Tower • 9 external 5.25" with Easy Front Removable Tray • 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch BIOS AMI UEFI
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
