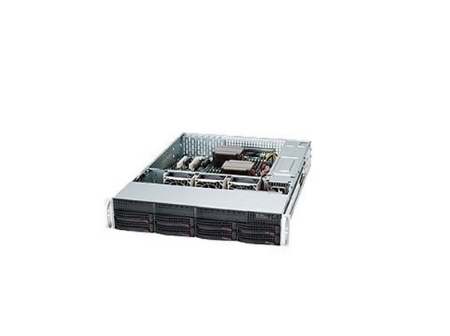

C622A16T

Dual Socket P Intel® Xeon, 14 SATA3-6, 2 Gigabit LAN, 16 DDR4 up to 2TB, 6 Slots

Featured Highlights
•	Dual Socket P Intel® Xeon® Scalable Processors.
•	up to 2TB Registered ECC DDR4, 16x DIMM slots.
•	4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
•	Dual Gigabit Ethernet LAN Ports
•	14 SATA3 (6 Gbps) ports; RAID 0,1,5,10.
•	M.2 Interface: 2 PCI-E 3.0 x4
•	5 USB 3.0 ports, 4 USB 2.0 ports

SKU: C622A16T

Specifications
Request for Info

Product specifications

Processor • Intel® Xeon® Scalable Processors • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s • CPU1: Skylake-F CPU supported. Chipset Intel® C622
Memory • Up to 2TB DDR4-2666MHz Memory in 16 DIMM slots • Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIM On-Board Devices • 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 • IPMI • Dual LAN with 10GBase-T with Intel® X722 + X557
Expansion • 4 PCI-E 3.0 x16, • 2 PCI-E 3.0 x8 • M.2 : PCI-E 3.0 x4 I/O • 14 SATA3 (6Gbps) ports • RJ45 Shared IPMI LAN port • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) • 4 USB 2.0 ports (2 rear + 2 headers) • 1 VGA port • 2 COM Ports (1 rear, 1 header) • TPM Header
Systemboard • E-ATX 12" x 13" Chassis 2U chassis: • Dimensions: 17.2" (437mm) x 3.5" (89mm) x 25.5" (648mm) • Weight: 52 lbs (23.6kg) • 740W (1+1) Redundant high-efficiency power supply with PMBus
BIOS AMI UEFI Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Xeon® Scalable Processors • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s • CPU1: Skylake-F CPU supported. Chipset Intel® C622
Memory • Up to 2TB DDR4-2666MHz Memory in 16 DIMM slots • Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIM On-Board Devices • 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 • IPMI • Dual LAN with 10GBase-T with Intel® X722 + X557
Expansion • 4 PCI-E 3.0 x16, • 2 PCI-E 3.0 x8 • M.2 : PCI-E 3.0 x4 I/O • 14 SATA3 (6Gbps) ports • RJ45 Shared IPMI LAN port • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) • 4 USB 2.0 ports (2 rear + 2 headers) • 1 VGA port • 2 COM Ports (1 rear, 1 header) • TPM Header
Systemboard • E-ATX 12" x 13" Chassis 2U chassis: • Dimensions: 17.2" (437mm) x 3.5" (89mm) x 25.5" (648mm) • Weight: 52 lbs (23.6kg) • 740W (1+1) Redundant high-efficiency power supply with PMBus
BIOS AMI UEFI Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
