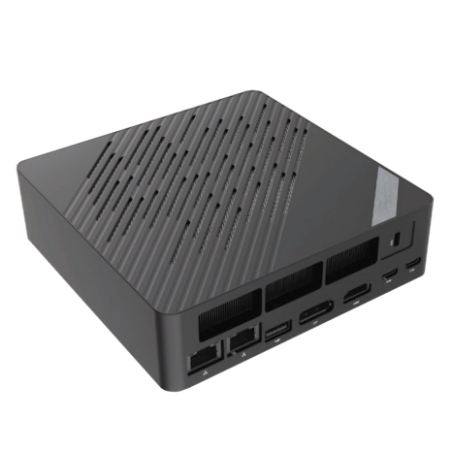

Nano-UC14L2V4 Meteor Lake-H 4K Mini Digital Signage PC

14th Gen Meteor Lake-H Arc™ Graphics, 4 displays DP+ HDMI, 2 LAN + Type-C + 3 USB, M.2

Featured Highlights
	Intel® Meteor Lake-H (1st Gen Ultra Core AI PC)
	Intel® Meteor Lake-H Platform (SOC)
	Intel® Arc™ graphics, HDMI®2.1 (4K@60Hz) + DP (4K@60Hz)+USB-C (4K@60Hz)
	Dual SO-DIMM DDR5 32GB / 5600MHz
	2× KeyM M.2 2280 NVME SSD
	RJ-45 1G + 2.5G Dual Ethernet, Intel® BE200NGW WiFi 7, 1× M.2 Key E 2230 Connector
	2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A,Type-C
	Realtek ALC233 HD Audio
	20V 2Pin 100W PD Adapter (UL/CE/FCC Certified)
	OS Support: Windows11/Windows10/Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: Nano-UC14L2V4

Nano-UC100L2V4

features 14th Gen. Meteor Lake-H, Arc™ Graphics, DP+ HDMI+USB-C Display, 2 LAN with M.2 2230 WiFi & BT + 3 USB, 32GB Memory. This is a Meteor Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Specifications
Request for Info

Product specifications

Processor • Intel® Meteor Lake-H Ultra 5 125H • Intel® Meteor Lake-H Ultra 5 135H • Intel® Meteor Lake-H Ultra 7 155H Chipset • Intel® Meteor Lake-H Platform (SOC)
Graphics • Intel® Arc™ UHD Graphics • HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • USB-C (4K@60Hz). Memory • 2 x DDR5 SO-DIMM • 4/8/16/32GB DDR5-5600, upgradeable to 96GB
Network • Realtek®RTL8125BG-CG for 2.5G Ethernet, Realtek®RTL8111H for 1G Ethernet Storage • 2× KeyM M.2 2280 NVME SSD
Audio • Realtek ALC233 HD Audio • 1 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 1 x USB 3.2 ports • 2 x LAN ports • 1 x DP 1.4 port • 1 x HDMI® 2.1 ports • 1 x Type-C( 4K @60Hz and USB3.2 Gen1 and 5v-3A out) • 1 x Kensington Lock • 1 x DC-In Power Connecter
Other I/O • 1 x PowerButton with white Led (Front) • 1 x Headphone & MIC Two In One connector (Front) • 2 x D-MIC (Front) • 2 x USB 3.2 Gen 2 Type-A (Front) • 1 x TBT 4 (Front) • 1 x Reset button (Front) System BIOS • AMI® BIOS
Chassis • Dimensions: 139(L)mm x 138(W)mm x 37.9mm(H) • Silent Cooling Design. • Supports VESA/wall mount brackets Power Supply • Power: 20V 2Pin 100W PD Adapte (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows11/Windows10/Linux Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.
Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Meteor Lake-H Ultra 5 125H • Intel® Meteor Lake-H Ultra 5 135H • Intel® Meteor Lake-H Ultra 7 155H Chipset • Intel® Meteor Lake-H Platform (SOC)
Graphics • Intel® Arc™ UHD Graphics • HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • USB-C (4K@60Hz). Memory • 2 x DDR5 SO-DIMM • 4/8/16/32GB DDR5-5600, upgradeable to 96GB
Network • Realtek®RTL8125BG-CG for 2.5G Ethernet, Realtek®RTL8111H for 1G Ethernet Storage • 2× KeyM M.2 2280 NVME SSD
Audio • Realtek ALC233 HD Audio • 1 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 1 x USB 3.2 ports • 2 x LAN ports • 1 x DP 1.4 port • 1 x HDMI® 2.1 ports • 1 x Type-C( 4K @60Hz and USB3.2 Gen1 and 5v-3A out) • 1 x Kensington Lock • 1 x DC-In Power Connecter
Other I/O • 1 x PowerButton with white Led (Front) • 1 x Headphone & MIC Two In One connector (Front) • 2 x D-MIC (Front) • 2 x USB 3.2 Gen 2 Type-A (Front) • 1 x TBT 4 (Front) • 1 x Reset button (Front) System BIOS • AMI® BIOS
Chassis • Dimensions: 139(L)mm x 138(W)mm x 37.9mm(H) • Silent Cooling Design. • Supports VESA/wall mount brackets Power Supply • Power: 20V 2Pin 100W PD Adapte (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows11/Windows10/Linux Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.
Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
